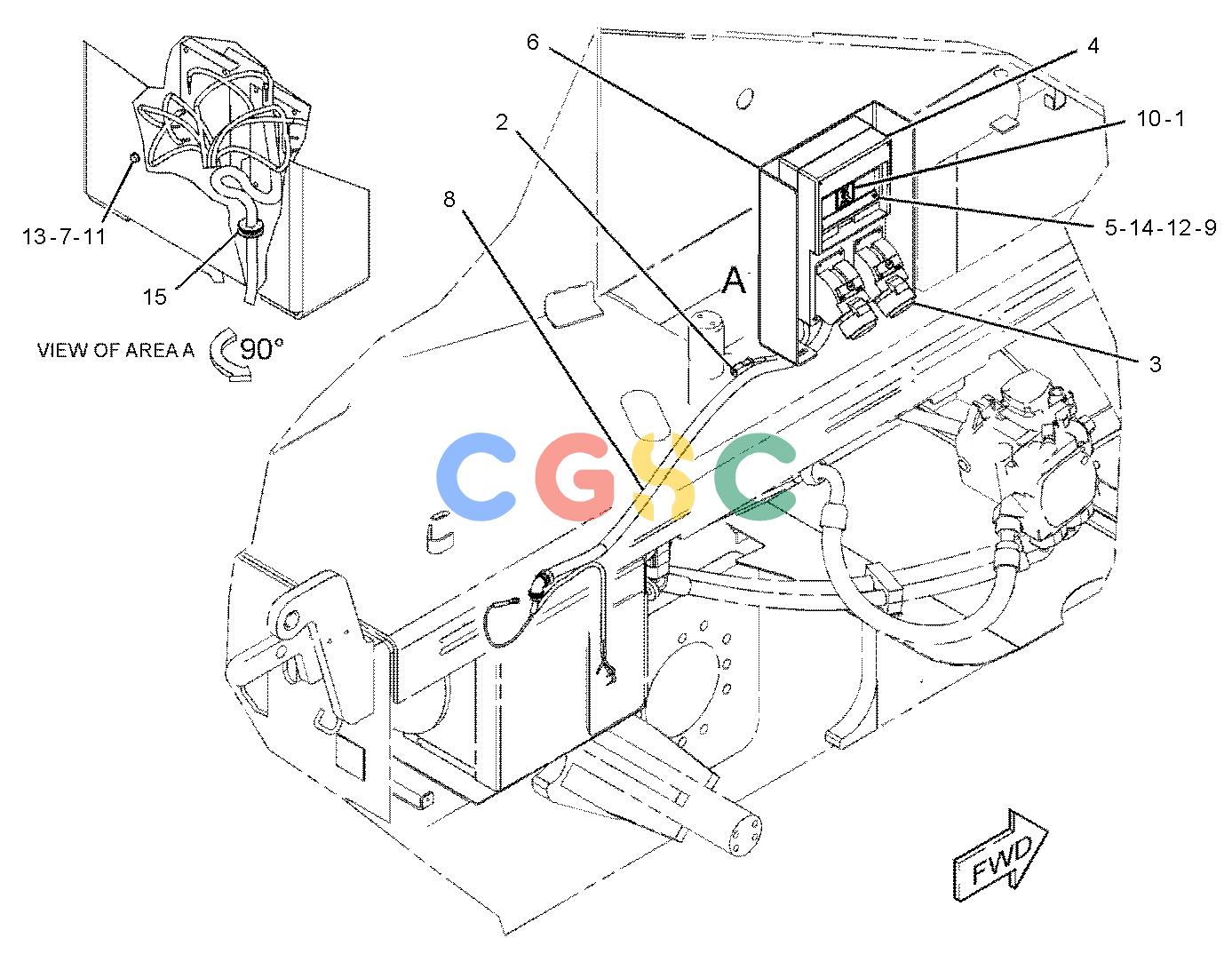

卡特零件查询（BG1055E） 341-2000: PANEL GP-POWER
广数供应链运营团队, 16 02月, 2025，浏览：
317 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 286-7243 | [1] | FILM-INSTRUCTION(HOLD FREQUENCY, READ OMM) | |
| 2. | 300-9957 | [1] | HARNESS AS-SWITCH | |
| | 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 5P-2321 | [2] | TERMINAL-FORK(14-GA TO 16-GA, NO. 6 SCREW) | |
| 3. | 301-0070 | [2] | RECEPTACLE | |
| 4. | 301-0072 | [1] | ENCLOSURE GP-ELECTRICAL | |
| 5. | 301-0073 | [1] | BRACKET | |
| 6. | 301-0074 | [1] | PLATE | |
| 7. | 8T-0328 | [8] | WASHER-HARD(5.5X10X1-MM THK) | |
| 8. | 340-8920 | [1] | HARNESS AS-POWER | |
| | 6Y-6812 | [1] | ELBOW-CONNECTOR | |
| | 6Y-6814 | [1] | CONNECTOR | |
| | 2L-8069 | [1] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(26-CM) | |
| 9. | 3B-4501 | [4] | LOCKWASHER | |
| 10. | 4D-1836 | [1] | SWITCH-TOGGLE(OPERATOR STATION) | |
| 11. | 5C-2874M | [4] | NUT(M5X0.8-THD) | |
| 12. | 5C-8312M | [4] | NUT(M4X0.7-THD) | |
| 13. | 7I-2273M | [4] | BOLT(M5X0.8X16-MM) | |
| 14. | 6V-5210M | [4] | SCREW-MACHINE(M4X0.7X10-MM) | |
| 15. | 8P-8540 | [1] | GROMMET | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
