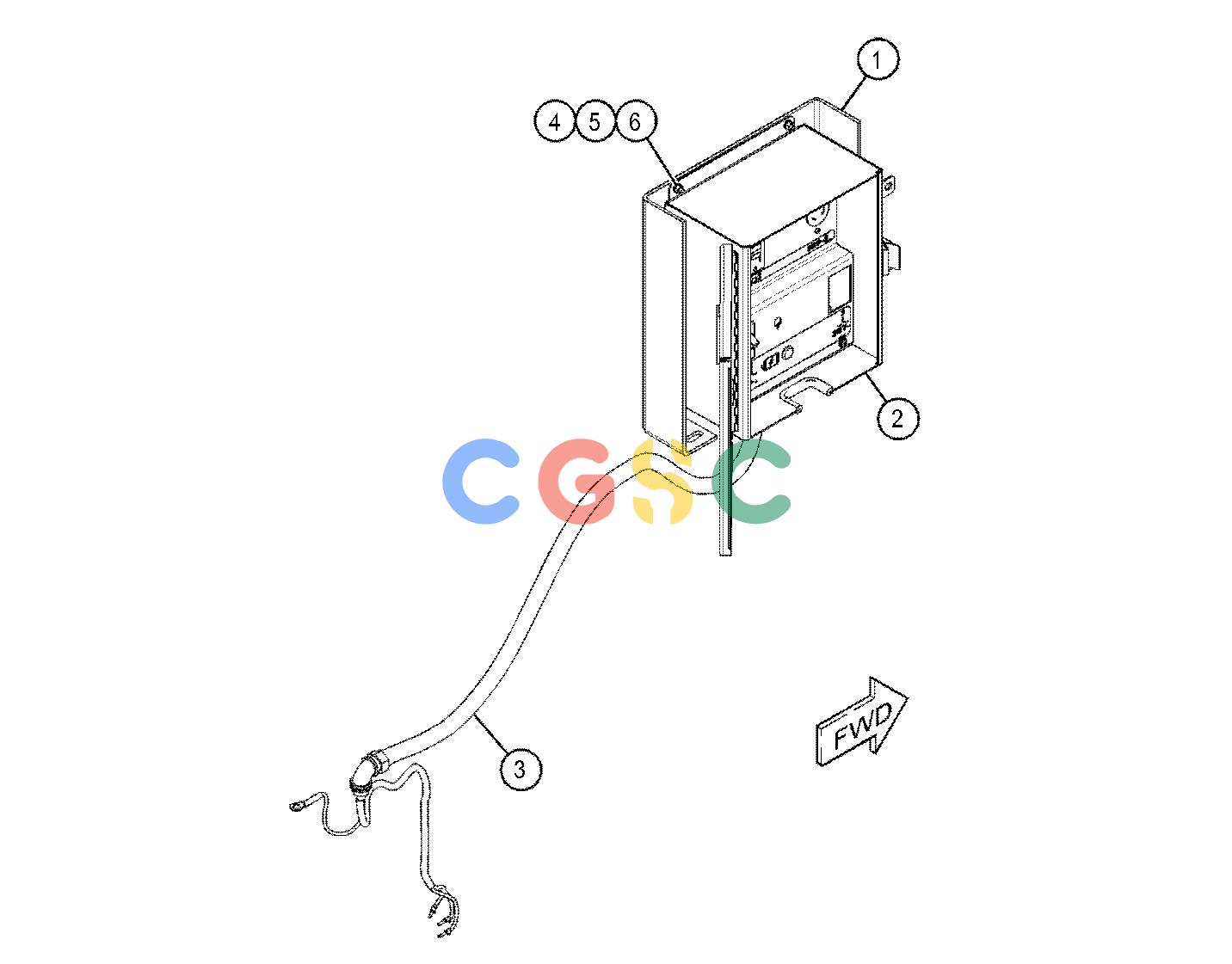

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 241-7709 | [1] | PLATE | |
| 2. | 437-1125Y | [1] | PANEL GP-POWER | |
| 3. | 448-4964Y | [1] | HARNESS AS-PANEL | |
| 4. | 344-5673M | [4] | NUT(M6X1-THD) | |
| 5. | 8T-4138M | [4] | BOLT(M6X1X20-MM) | |
| 6. | 9X-8256 | [8] | WASHER(6.6X12X2-MM THK) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
