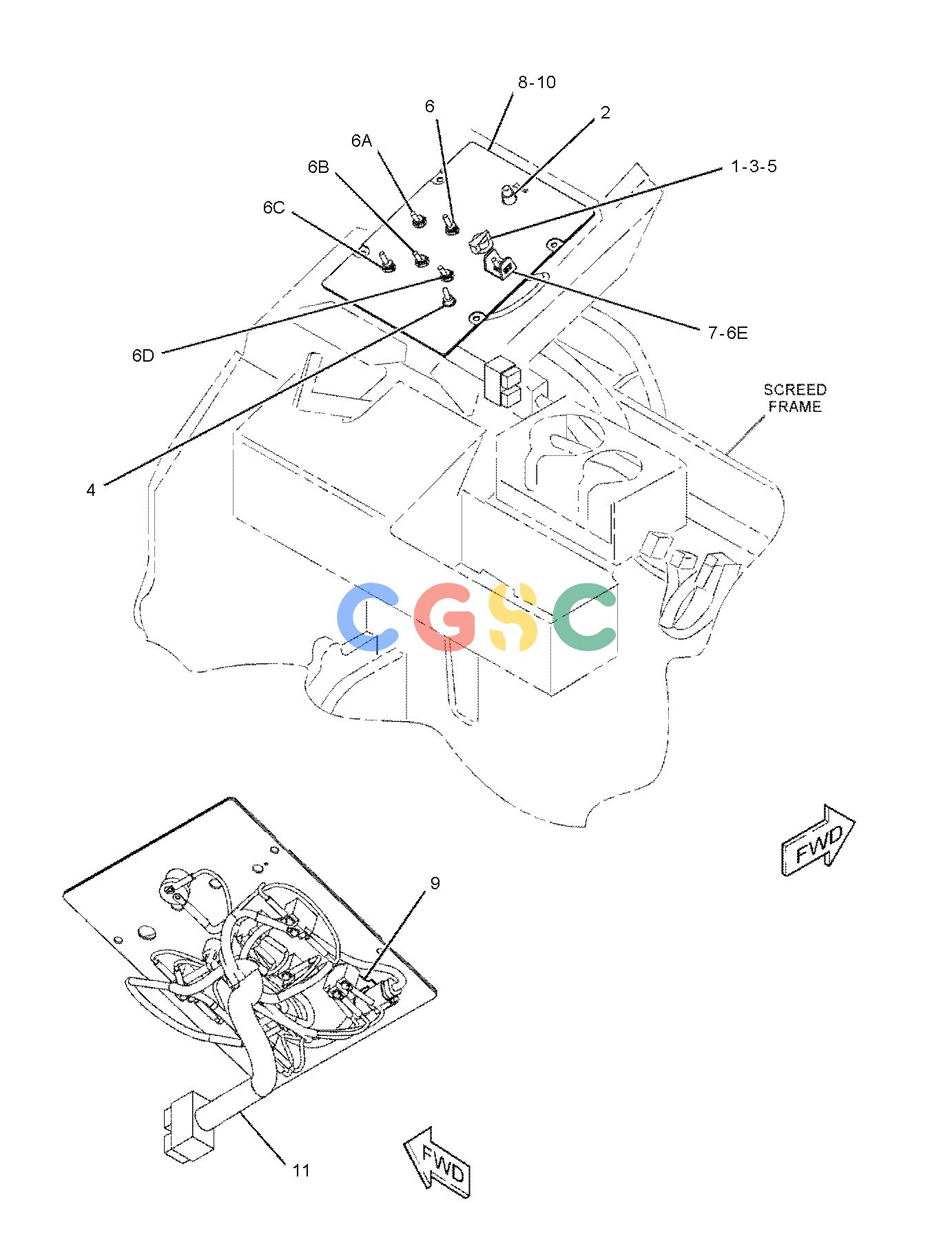

| 1. | 1P-6509 | [1] | KNOB(MATERIAL HEIGHT-LH) | |
| 2. | 3D-9718 | [1] | SWITCH AS-PUSH BUTTON(HORN) | |
| | 6V-8376 | [2] | SCREW-MACHINE(8-32X0.25-IN) | |
| | 6V-8832 | [1] | NUT(5/8-32-THD) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 3. | 7C-4550 | [1] | SEAL(ROTATING SHAFT) | |
| 4. | 7N-8008 | [1] | SWITCH AS-TOGGLE(EXTENDER, LH) | |
| | 3L-8187 | [6] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [6] | SCREW-MACHINE(6-32X0.25-IN) | |
| 5. | 213-8147 | [1] | POTENTIOMETER AS(CONVEYOR SPEED, LH) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 5P-5677E | | WIRE(18-GA, BLACK)(0.3-M EACH) | |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1813E | | SLEEVE(25-CM) | |
| 6. | 246-8912 | [1] | SWITCH GP-TOGGLE(MAIN FRAME EXTENSION) | |
| 6A. | 246-8912 | [1] | SWITCH GP-TOGGLE(TOWPOINT) | |
| 6B. | 246-8912 | [1] | SWITCH GP-TOGGLE(MATERIAL FEED) | |
| 6C. | 246-8912 | [1] | SWITCH GP-TOGGLE(EXTENDER WIDTH) | |
| 6D. | 246-8912 | [1] | SWITCH GP-TOGGLE(EXTENDER SLOPE) | |
| 6E. | 246-8912 | [1] | SWITCH GP-TOGGLE(BERM) | |
| | | | (EACH SWITCH AS INCLUDES) |
| | 3L-8187 | [3] | LOCKWASHER | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | 6V-8374 | [3] | SCREW-MACHINE(6-32X0.25-IN) | |
| 7. | 265-9984 | [1] | BRACKET | |
| 8. | 276-4634 | [1] | PANEL | |
| 9. | 328-3536 | [1] | HARNESS AS-PANEL(LH) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 9X-7144 | [1] | PLUG AS-CONNECTOR(24-PIN) | |
| | 3E-8558M | [1] | BOLT(M5X0.8X39.37-MM) | |
| | 3E-4367 | [1] | RING-RETAINING | |
| | 9X-3265 | [2] | SEAL-CONNECTOR(24-PIN) | |
| | 8T-8737 | [6] | PLUG-SEAL | |
| | 180-9340 | [20] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 126-1768 | [1] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 5P-2321 | [18] | TERMINAL-FORK(14-GA TO 16-GA, NO. 6 SCREW) | |
| | 7N-7978 | [6] | TERMINAL-FORK(10-GA TO 12-GA, NO. 6 SCREW) | |
| | 5P-1475 | [1] | TERMINAL-FORK(14-GA TO 16-GA, NO. 8 SCREW) | |
| | 2L-8065 | [1] | TERMINAL-RING(10-GA TO 12-GA, NO. 8 SCREW) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(7-CM) | |
| 10. | 346-1275 | [1] | FILM-IDENTIFICATION(PANEL, LH) | |
| 11. | 130-5301 | [1] | CLIP | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
