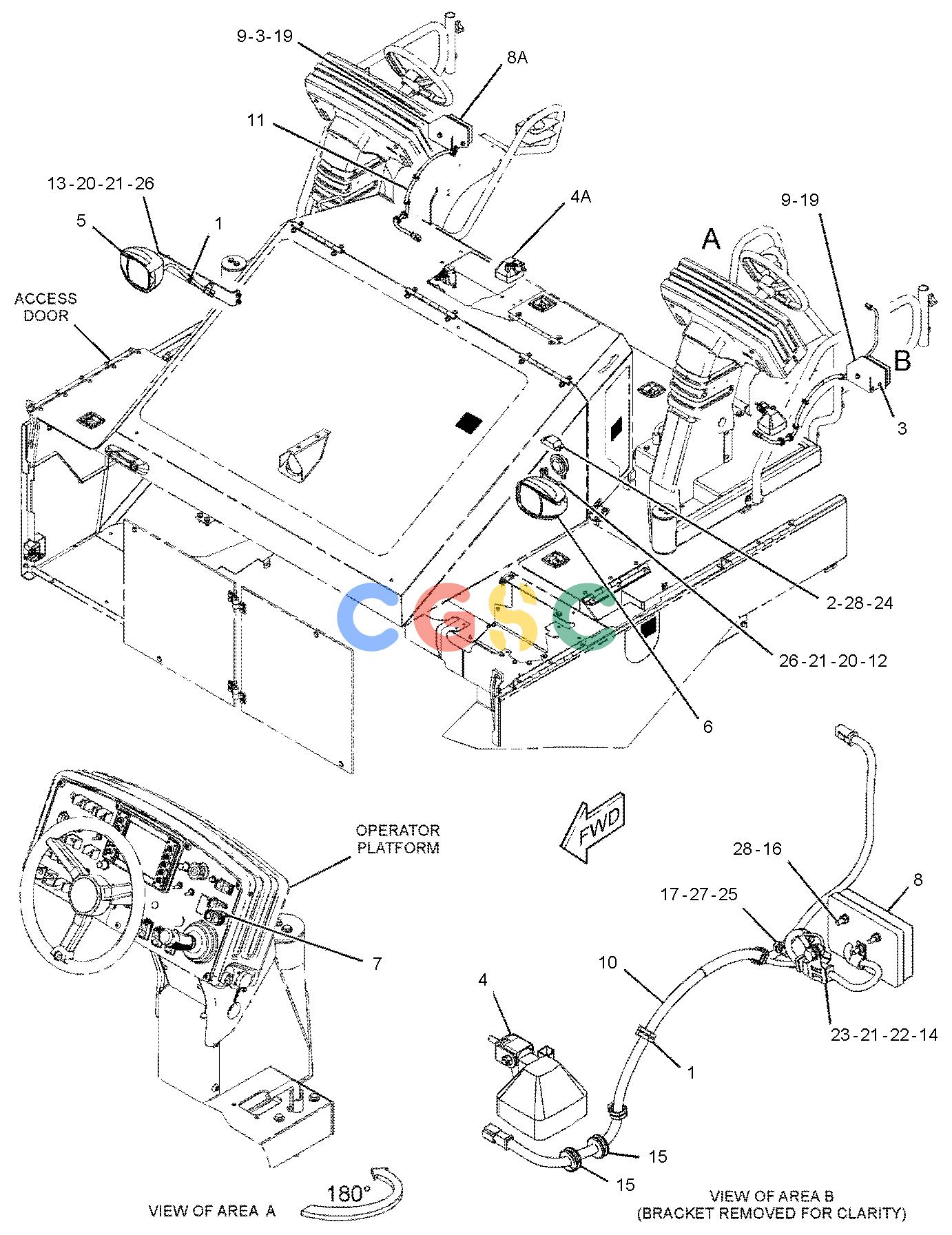

卡特零件查询（BG1055E） 327-9181: LIGHTING GP-ROADING
广数供应链运营团队, 16 02月, 2025，浏览：
411 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [16] | STRAP-CABLE | |
| 2. | 108-0358 | [1] | FLASHER AS(24-VOLT)(TURN SIGNAL) | |
| 3. | 218-2529 | [4] | PLUG | |
| 4. | 234-4323Y | [1] | LAMP GP-FLOOD(24-VOLT)(LH) | |
| 4A. | 234-4323Y | [1] | LAMP GP-FLOOD(24-VOLT)(RH) | |
| 5. | 238-2797Y | [1] | LAMP GP-HEAD & SIGNAL(24-VOLT, RH) | |
| 6. | 238-2798Y | [1] | LAMP GP-HEAD & SIGNAL(24-VOLT, LH) | |
| 7. | 249-5482 | [1] | SWITCH AS-ROCKER(24-VOLT)(TURN SIGNAL) | |
| 8. | 395-2113 | [1] | LAMP GP-SIGNAL(24-VOLT)(LH) | |
| 8A. | 395-2113 | [1] | LAMP GP-SIGNAL(24-VOLT)(RH) | |
| | | | (EACH LAMP GP-SIGNAL INCLUDES) |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [4] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 9. | 307-3177 | [2] | BRACKET | |
| 10. | 337-9977 | [1] | HARNESS AS-CHASSIS(LH) | |
| | 141-2759 | [1] | FUSE(5-AMPERE) | |
| | 9X-3401 | [4] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2271 | [1] | KIT-CONNECTING PLUG(4-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [2] | PLUG-SEAL | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 180-9340 | [6] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(10-CM) | |
| 11. | 337-9978 | [1] | HARNESS AS-CHASSIS(RH) | |
| | 141-2759 | [1] | FUSE(5-AMPERE) | |
| | 9X-3401 | [4] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2271 | [1] | KIT-CONNECTING PLUG(4-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 180-9340 | [4] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(5-CM) | |
| 12. | 348-8537 | [1] | BRACKET AS-LIGHT(LH) | |
| 13. | 348-8538 | [1] | BRACKET AS-LIGHT(RH) | |
| 14. | 130-5300 | [2] | CLIP | |
| 15. | 4H-2558 | [4] | GROMMET | |
| 16. | 5C-2890M | [6] | NUT(M6X1-THD) | |
| 17. | 5C-7261M | [4] | NUT(M8X1.25-THD) | |
| 19. | 8J-1256 | [2] | CLIP | |
| 20. | 8T-0389M | [4] | LOCKNUT(M10X1.5-THD) | |
| 21. | 8T-4121 | [12] | WASHER-HARD(11X21X2.5-MM THK) | |
| 22. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 23. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 24. | 8T-4138M | [2] | BOLT(M6X1X20-MM) | |
| 25. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 26. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 27. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 28. | 9X-8256 | [8] | WASHER(6.6X12X2-MM THK) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
