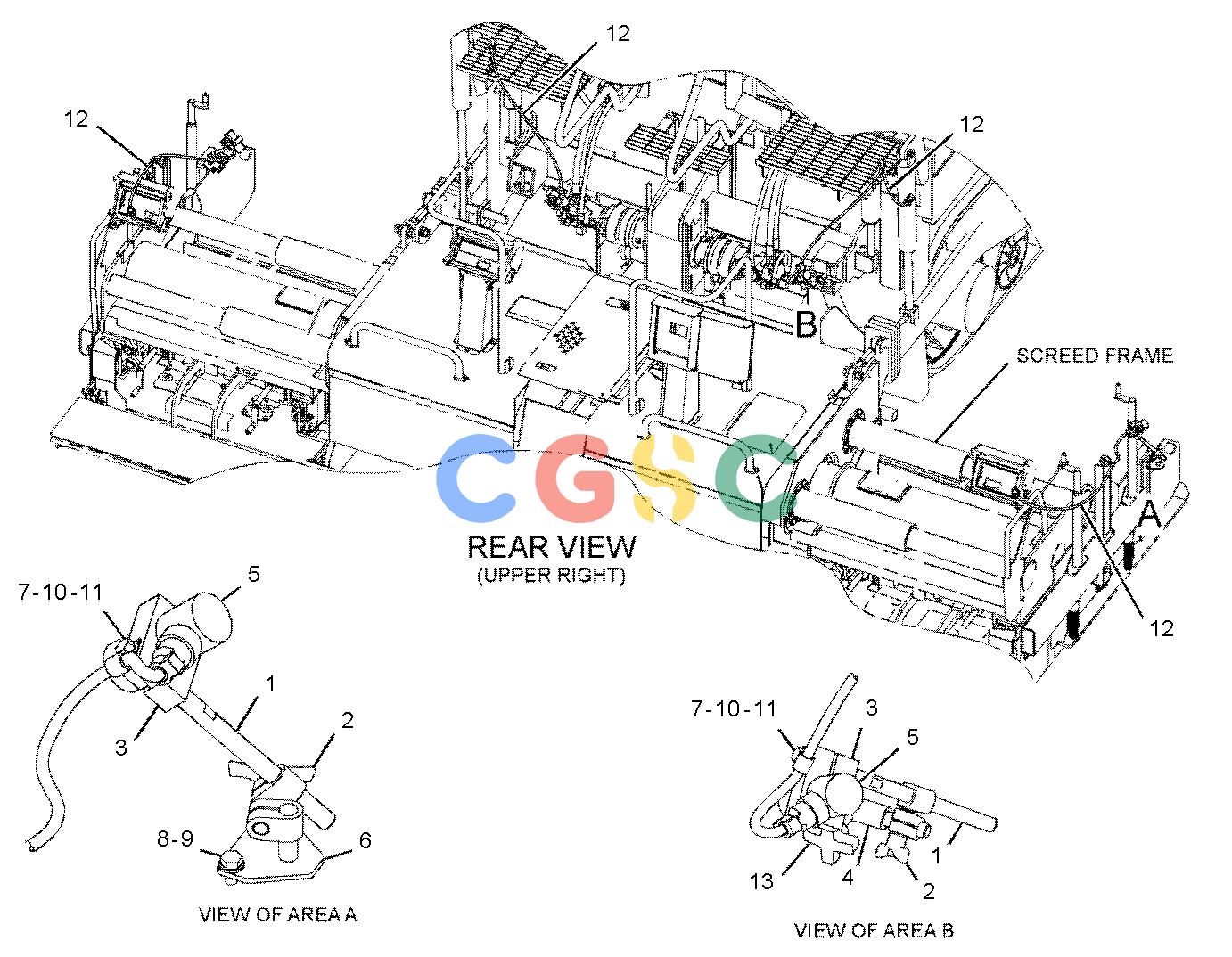

卡特零件查询（BG1055E） 278-3428: SENSOR GP-POSITION
广数供应链运营团队, 16 02月, 2025，浏览：
907 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1G-6811 | [4] | SHAFT | |
| 2. | 6R-4365 | [4] | CLAMP AS | |
| 3. | 110-2124 | [4] | CLAMP | |
| 4. | 164-0841 | [2] | SUPPORT-SENSOR | |
| 5. | 369-4794 | [4] | SENSOR(SONIC)(AUGER) | |
| 6. | 292-0987 | [2] | PLATE AS | |
| 7. | 8M-2770 | [4] | CLIP(LOOP) | |
| 8. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 9. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 10. | 8T-4896 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 11. | 8T-9377 | [4] | BOLT(3/8-16X2.25-IN) | |
| 12. | 239-2111 | [4] | CABLE AS-COILED | |
| | | | (EACH INCLUDES) |
| | 241-8153 | [2] | PLUG AS | |
| | 237-7508 | [1] | LINK | |
| 13. | 7X-7943 | [2] | KNOB-CLAMP | |
| | M | | METRIC PART |
