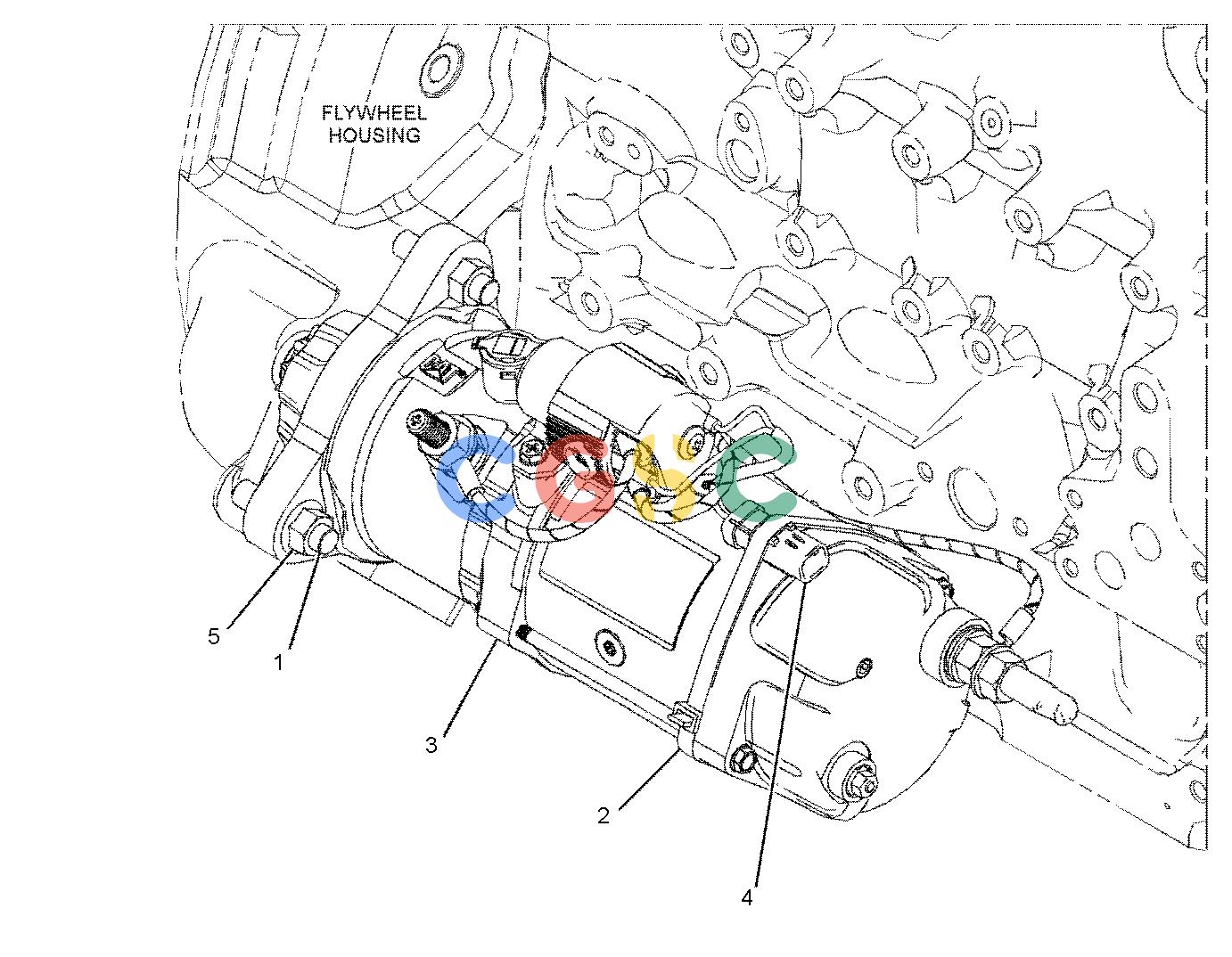

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 183-1343 | [3] | STUD | |
| 2. | 110-8760 | [1] | STRAP | |
| 3. | 349-9075Y | [1] | STARTING MOTOR GP-ELECTRIC | |
| 4. | 362-0714 | [1] | HARNESS AS-POWER | |
| 2L-8076 | [2] | TERMINAL-RING(14-GA TO 16-GA, NO. 10 SCREW) | ||
| 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | ||
| -OR- | ||||
| 126-1767 | [2] | PIN-CONNECTOR(14-GA TO 16-GA) | ||
| 230-4012 | [1] | RECEPTACLE AS-CONNECTOR(2-PIN) | ||
| 5. | 6I-0233M | [3] | NUT(M12X1.75-THD) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
