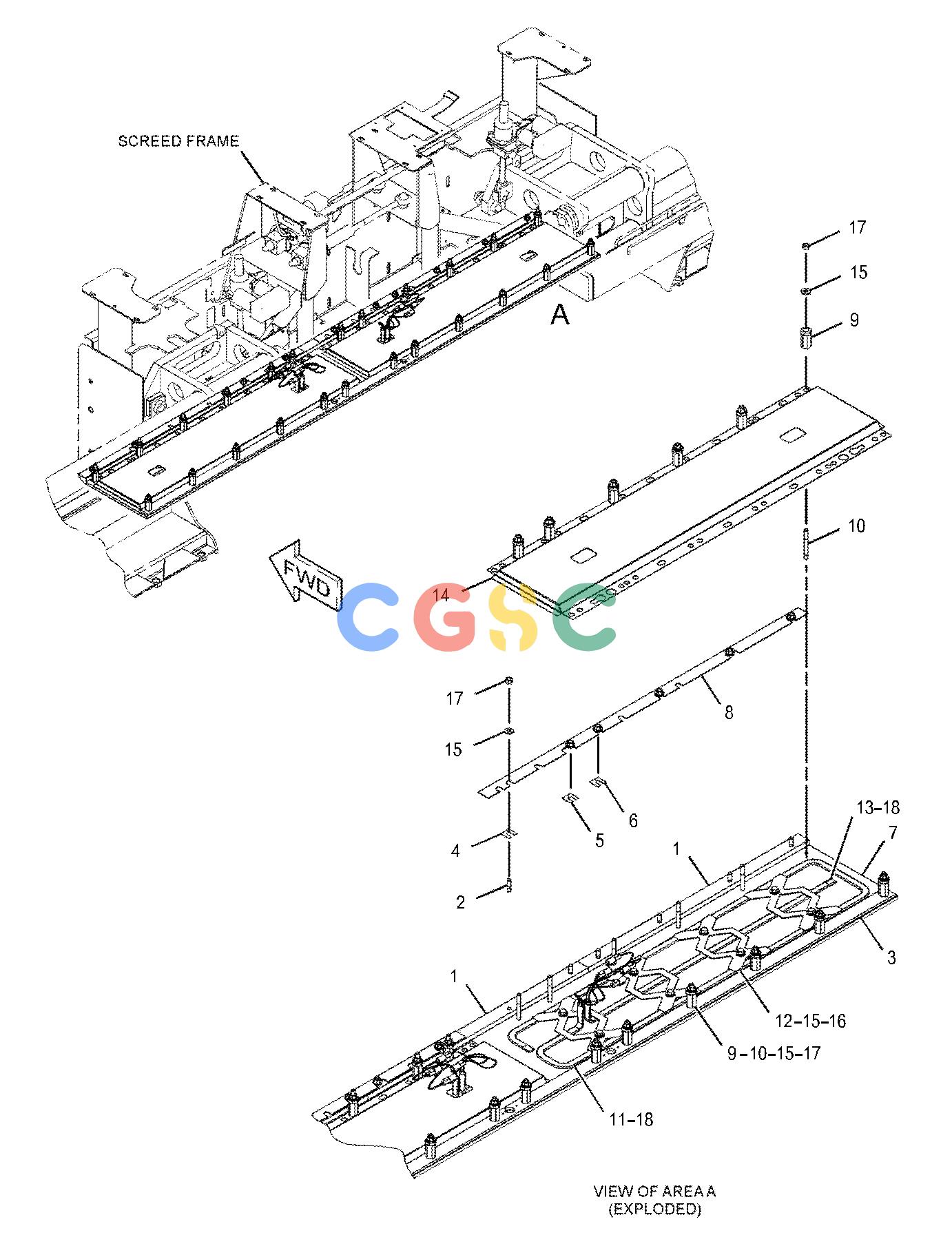

卡特零件查询（BG1055E） 353-2584: PLATE GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
975 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0179 | [3] | BAR-NOSE | |
| 2. | 8I-0189 | [12] | STUD(1/2-13X1.75-IN) | |
| 3. | 8I-0209 | [1] | BAR-SPACER | |
| 4. | 8I-0888B | [8] | SHIM(0.01-IN THK) | |
| 5. | 8I-0889B | [12] | SHIM(0.02-IN THK) | |
| 6. | 8I-0890B | [8] | SHIM(0.064-IN THK) | |
| 7. | 249-6975 | [1] | PLATE-MAIN | |
| 8. | 263-7356B | [2] | SHIM(2-MM THK) | |
| 9. | 290-4723 | [24] | NUT-ADJUSTMENT(1-1/4-12-THD) | |
| 10. | 290-4724 | [24] | STUD(1/2-13X4.52-IN) | |
| 11. | 352-6133 | [2] | HEATER AS(240-VOLT, 3050-WATT) | |
| | | | (EACH INCLUDES) |
| | 129-7164 | [4] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| 12. | 352-8521 | [8] | CLAMP | |
| 13. | 353-1639 | [2] | HEATER AS(240-VOLT, 950-WATT) | |
| | | | (EACH INCLUDES) |
| | 129-7164 | [4] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| 14. | 353-2695 | [2] | COVER-HEATER | |
| 15. | 5P-1076 | [68] | WASHER-HARD(13.5X30X4-MM THK) | |
| 16. | 5C-6565 | [16] | BOLT(1/2-13X1.125-IN) | |
| 17. | 6V-8188 | [36] | NUT(1/2-13-THD) | |
| 18. | 5P-9210B | | COMPOUND(397-GRAM CARTRIDGE) | |
| | B | | USE AS REQUIRED |
