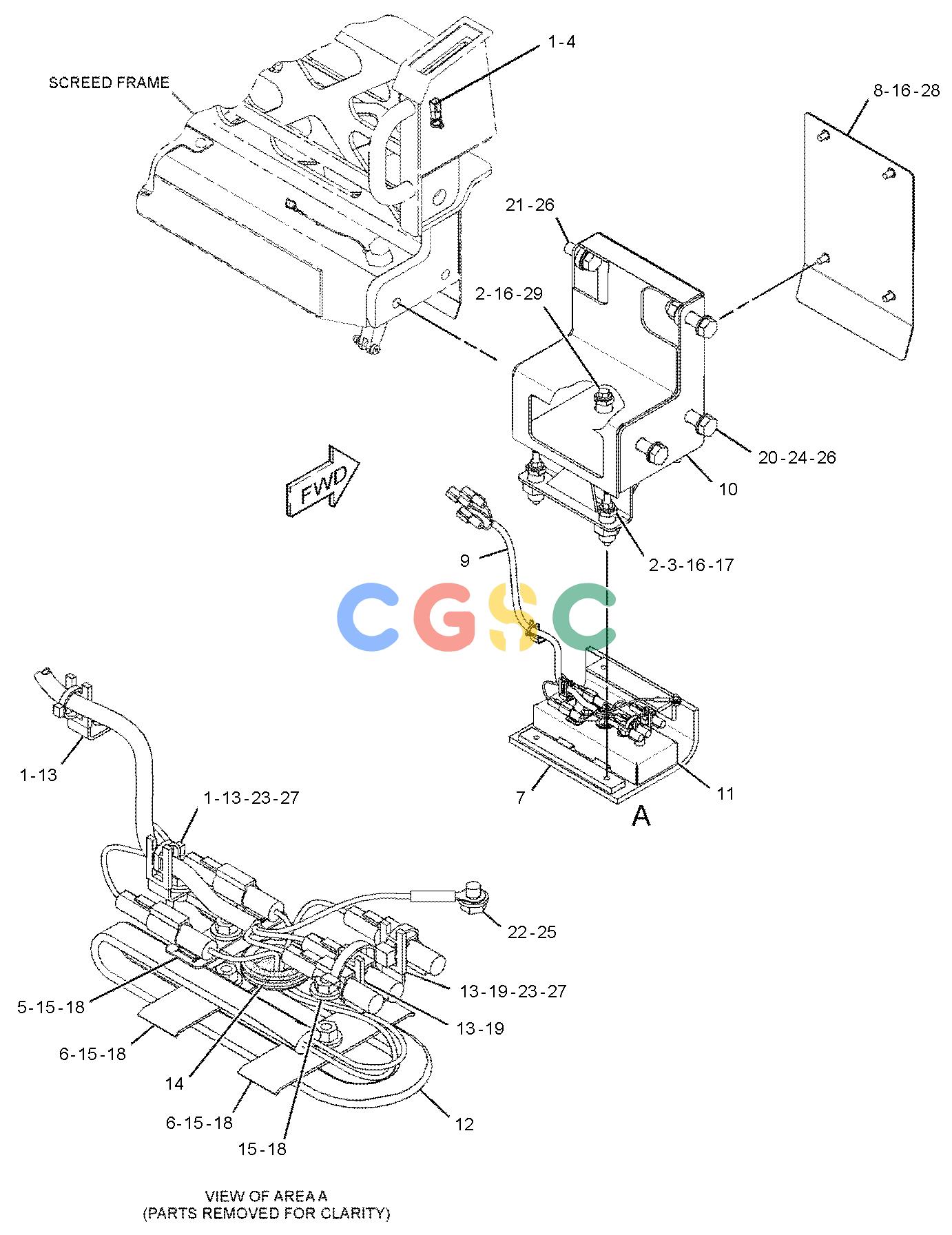

卡特零件查询（BG1055E） 328-3560: EXTENSION GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
402 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [3] | STRAP-CABLE | |
| 2. | 8I-0184 | [4] | NUT-ADJUSTMENT(1-1/4-12-THD) | |
| 3. | 8I-0212 | [2] | STUD(1/2-13X5-IN) | |
| 4. | 9U-3672 | [1] | PLUG AS | |
| | 5P-5677D | | WIRE(18-GA, BLACK)(0.2-M) | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 5P-9799D | | TUBE(HEAT SHRINK)(0.1-M) | |
| 5. | 169-5414 | [1] | CLIP | |
| 6. | 254-3797 | [2] | CLAMP | |
| 7. | 285-6560 | [1] | PLATE AS | |
| 8. | 288-3852 | [1] | PLATE | |
| 9. | 315-7925 | [1] | HARNESS AS-SCREED | |
| | 8N-1540 | [3] | PIN-CONNECTOR(12-GA TO 14-GA) | |
| | 8N-1541 | [5] | SOCKET-CONNECTOR(12-GA TO 14-GA) | |
| | 8T-8737 | [6] | PLUG-SEAL | |
| | 129-7163 | [8] | PLUG AS-CONNECTOR(1-PIN) | |
| | 129-7164 | [6] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| | 2L-8069 | [1] | TERMINAL-RING(2-GA TO 10-GA, 3/8-IN SCREW) | |
| 10. | 333-6462 | [1] | FRAME AS | |
| 11. | 333-6467 | [1] | COVER AS | |
| 12. | 349-3024 | [1] | HEATER AS-SCREED(240-VOLT, 1180-WATT) | |
| | 129-7164 | [2] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| 13. | 132-5789 | [4] | CLIP(LADDER) | |
| 14. | 3H-2900 | [1] | GROMMET | |
| 15. | 5P-1075 | [4] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 16. | 5P-1076 | [8] | WASHER-HARD(13.5X30X4-MM THK) | |
| 17. | 6V-8188 | [2] | NUT(1/2-13-THD) | |
| 18. | 6V-8801 | [4] | NUT(3/8-16-THD) | |
| 19. | 7K-1181 | [2] | STRAP-CABLE | |
| 20. | 7X-2489M | [3] | BOLT(M24X3X100-MM) | |
| 21. | 7X-2575M | [3] | BOLT(M24X3X60-MM) | |
| 22. | 7X-2621M | [1] | BOLT(M10X1.5X12-MM) | |
| 23. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 24. | 8T-4001M | [3] | NUT(M24X3-THD) | |
| 25. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 26. | 8T-4167 | [9] | WASHER-HARD(26X44X4-MM THK) | |
| 27. | 8T-4191M | [2] | BOLT(M10X1.5X16-MM) | |
| 28. | 8T-4192M | [4] | BOLT(M12X1.75X25-MM) | |
| 29. | 8T-9391 | [2] | BOLT(1/2-13X3.75-IN) | |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
