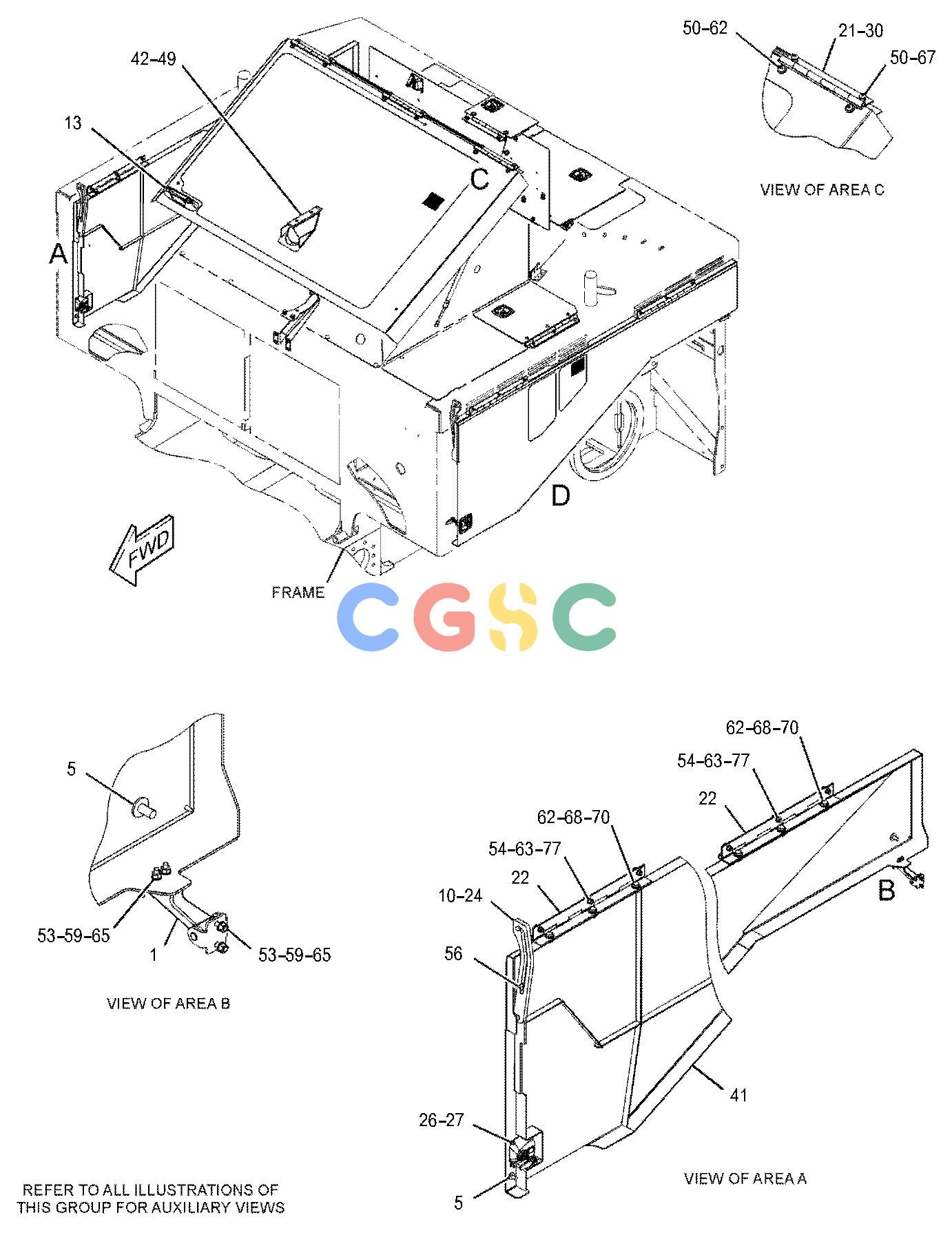

卡特零件查询（BG1055E） 331-1628: DOOR GP-ACCESS
广数供应链运营团队, 16 02月, 2025，浏览：
739 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1C-3750 | [2] | LATCH | |
| 2. | 2T-1718 | [4] | RETAINER | |
| 3. | 6V-7636 | [3] | PIN AS-SPRING | |
| 4. | 108-7756 | [4] | ROD | |
| 5. | 111-1777 | [4] | BUMPER-RUBBER | |
| 6. | 119-9706 | [2] | STUD-BALL | |
| 7. | 122-8427 | [2] | SPACER(9X14X3.5-MM THK) | |
| 8. | 140-6500 | [2] | SPRING-GAS | |
| 9. | 383-8617 | [2] | HINGE AS | |
| 10. | 174-6944 | [2] | BOLT-SPECIAL | |
| 11. | 191-3588 | [1] | CLIP | |
| 12. | 193-9297 | [1] | PLATE(BENT) | |
| 13. | 336-6672 | [1] | HANDLE AS(PULL) | |
| 14. | 208-4729 | [1] | HINGE | |
| 15. | 208-6190 | [1] | PLATE | |
| 16. | 218-2207 | [1] | LATCH AS-DOOR(ROTARY) | |
| 17. | 220-8262 | [1] | ROD | |
| 18. | 239-3152 | [1] | HINGE | |
| 19. | 239-3156 | [2] | HINGE | |
| 20. | 239-3169 | [1] | PLATE | |
| 21. | 239-3173 | [4] | HINGE | |
| 22. | 241-0057 | [4] | HINGE | |
| 23. | 272-0002 | [1] | STRIKER AS | |
| 24. | 276-8850 | [2] | PLATE | |
| 25. | 276-9063 | [1] | SHIM(5-MM THK) | |
| 26. | 294-2382 | [8] | LATCH AS | |
| 27. | 305-3159 | [2] | PAWL | |
| 28. | 305-3169 | [6] | PAWL | |
| 29. | 333-6459 | [2] | BRACKET | |
| 30. | 340-7018 | [6] | PLATE AS | |
| | | | (EACH INCLUDES) |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 31. | 341-4113 | [1] | PLATE | |
| 32. | 342-5037 | [1] | COVER AS | |
| 33. | 342-5039 | [1] | COVER AS | |
| 34. | 342-5042 | [1] | COVER AS | |
| 35. | 343-7427 | [1] | PANEL AS(LH) | |
| 36. | 344-1930 | [1] | COVER AS | |
| 37. | 344-1931 | [1] | COVER AS | |
| 38. | 344-2649 | [1] | PLATE | |
| 39. | 346-7861 | [1] | ROD | |
| 40. | 346-8225 | [1] | COVER AS | |
| 41. | 371-8089 | [1] | PANEL AS(RH) | |
| 42. | 348-2253 | [1] | PLATE | |
| 43. | 371-0350 | [1] | DOOR AS | |
| 44. | 354-7087 | [1] | BRACKET | |
| 45. | 354-7088 | [1] | ROD | |
| 46. | 354-7090 | [1] | BRACKET AS | |
| 47. | 361-8178 | [1] | STRIP | |
| 48. | 141-9203M | [12] | SCREW-BUTTON HEAD(M10X1.5X30-MM) | |
| 49. | 188-9644M | [2] | SCREW-FLAT HEAD(M8X1.25X25-MM) | |
| 50. | 238-0251M | [12] | SCREW-BUTTON HEAD(M10X1.5X25-MM) | |
| 51. | 299-5675M | [4] | SCREW-BUTTON HEAD(M10X1.5X30-MM) | |
| 52. | 3B-4617 | [5] | PIN-COTTER | |
| 53. | 5C-2874M | [8] | NUT(M5X0.8-THD) | |
| 54. | 5C-7261M | [13] | NUT(M8X1.25-THD) | |
| 55. | 5C-9553M | [4] | BOLT(M6X1X16-MM) | |
| 56. | 5C-9853M | [2] | SCREW(M8X1.25-THD) | |
| 57. | 5P-1076 | [1] | WASHER-HARD(13.5X30X4-MM THK) | |
| 58. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 59. | 7I-2273M | [8] | BOLT(M5X0.8X16-MM) | |
| 60. | 6V-5210M | [1] | SCREW-MACHINE(M4X0.7X10-MM) | |
| 61. | 6V-8185 | [1] | NUT(1/4-20-THD) | |
| 62. | 7X-7729 | [82] | WASHER(11X25X3-MM THK) | |
| 63. | 7Y-7394M | [12] | SCREW-BUTTON HEAD(M8X1.25X25-MM) | |
| 64. | 8C-8585M | [18] | SCREW-BUTTON HEAD(M10X1.5X20-MM) | |
| 65. | 8T-0328 | [16] | WASHER-HARD(5.5X10X1-MM THK) | |
| 66. | 8T-2659M | [1] | LOCKNUT(M4X0.7-THD) | |
| 67. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 68. | 8T-4133M | [38] | NUT(M10X1.5-THD) | |
| 69. | 8T-4136M | [8] | BOLT(M10X1.5X25-MM) | |
| 70. | 8T-4137M | [12] | BOLT(M10X1.5X20-MM) | |
| 71. | 8T-4138M | [4] | BOLT(M6X1X20-MM) | |
| 72. | 8T-4189M | [6] | BOLT(M8X1.25X20-MM) | |
| 73. | 8T-4191M | [4] | BOLT(M10X1.5X16-MM) | |
| 74. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 75. | 8T-4199M | [2] | BOLT(M8X1.25X12-MM) | |
| 76. | 8T-4223 | [5] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 77. | 8T-4224 | [17] | WASHER-HARD(8.8X16X2-MM THK) | |
| 78. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 79. | 9X-8256 | [8] | WASHER(6.6X12X2-MM THK) | |
| 80. | 5P-6410D | | SEAL(1.6-M) | |
| 81. | 5P-7211D | | SEAL(1.6-M) | |
| 81A. | 5P-7211D | | SEAL(0.9-M) | |
| 81B. | 5P-7211D | | SEAL(0.8-M) | |
| 81C. | 5P-7211D | | SEAL(0.1-M EACH) | |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
