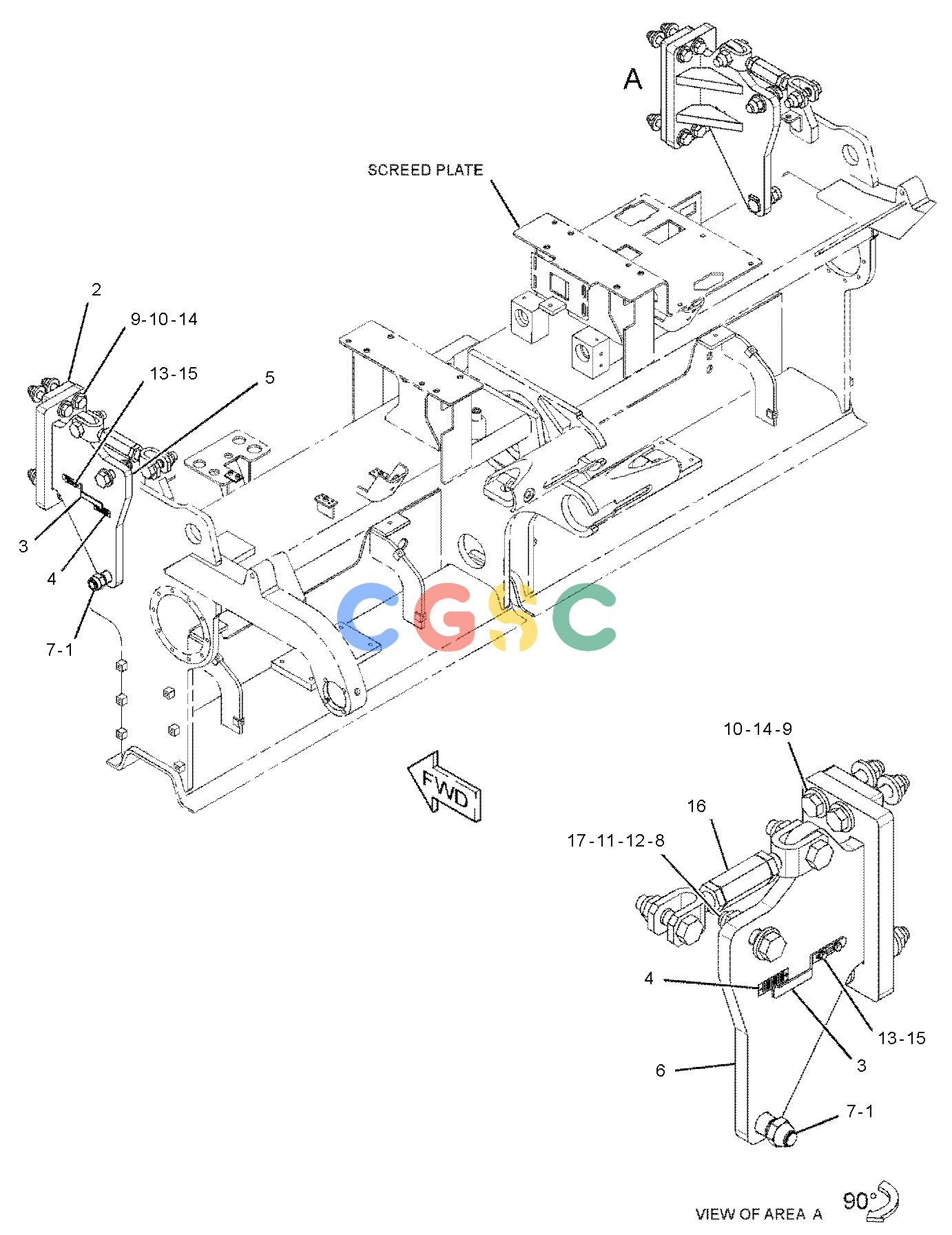

卡特零件查询（BG1055E） 351-0178: ARM GP-DROP
广数供应链运营团队, 16 02月, 2025，浏览：
922 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 366-1341C | [2] | PIN | |
| 2. | 389-0954 | [2] | PLATE | |
| 3. | 350-7863C | [2] | INDICATOR(DROP ARM) | |
| 4. | 363-8064C | [2] | FILM-IDENTIFICATION(HEIGHT SCALE) | |
| 5. | 378-8074 | [1] | BRACKET AS(LH) | |
| 6. | 378-8075 | [1] | BRACKET AS(RH) | |
| 7. | 8T-0390CM | [2] | NUT-SELF LOCKING(M24X2-THD) | |
| 8. | 6V-7676M | [6] | NUT(M24X3-THD) | |
| 9. | 6V-7688M | [8] | LOCKNUT(M20X2.5-THD) | |
| 10. | 7X-2532M | [8] | BOLT(M20X2.5X130-MM) | |
| 11. | 7X-2577M | [2] | BOLT(M24X3X90-MM) | |
| 12. | 7X-0529C | [4] | WASHER-HARD(28X49X6-MM THK) | |
| 13. | 8T-4171M | [4] | BOLT(M6X1X12-MM) | |
| 14. | 8T-5439 | [16] | WASHER-HARD(21.5X45X6-MM THK) | |
| 15. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| 16. | 370-8750 | [2] | LINK GP-PITCH | |
| | | | (EACH INCLUDES) |
| | 201-5541M | [1] | NUT(M27X2-THD) | |
| | 241-8253M | [1] | NUT(M27X2-THD) | |
| 17. | 8T-5878M | [4] | BOLT(M24X3X80-MM) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
