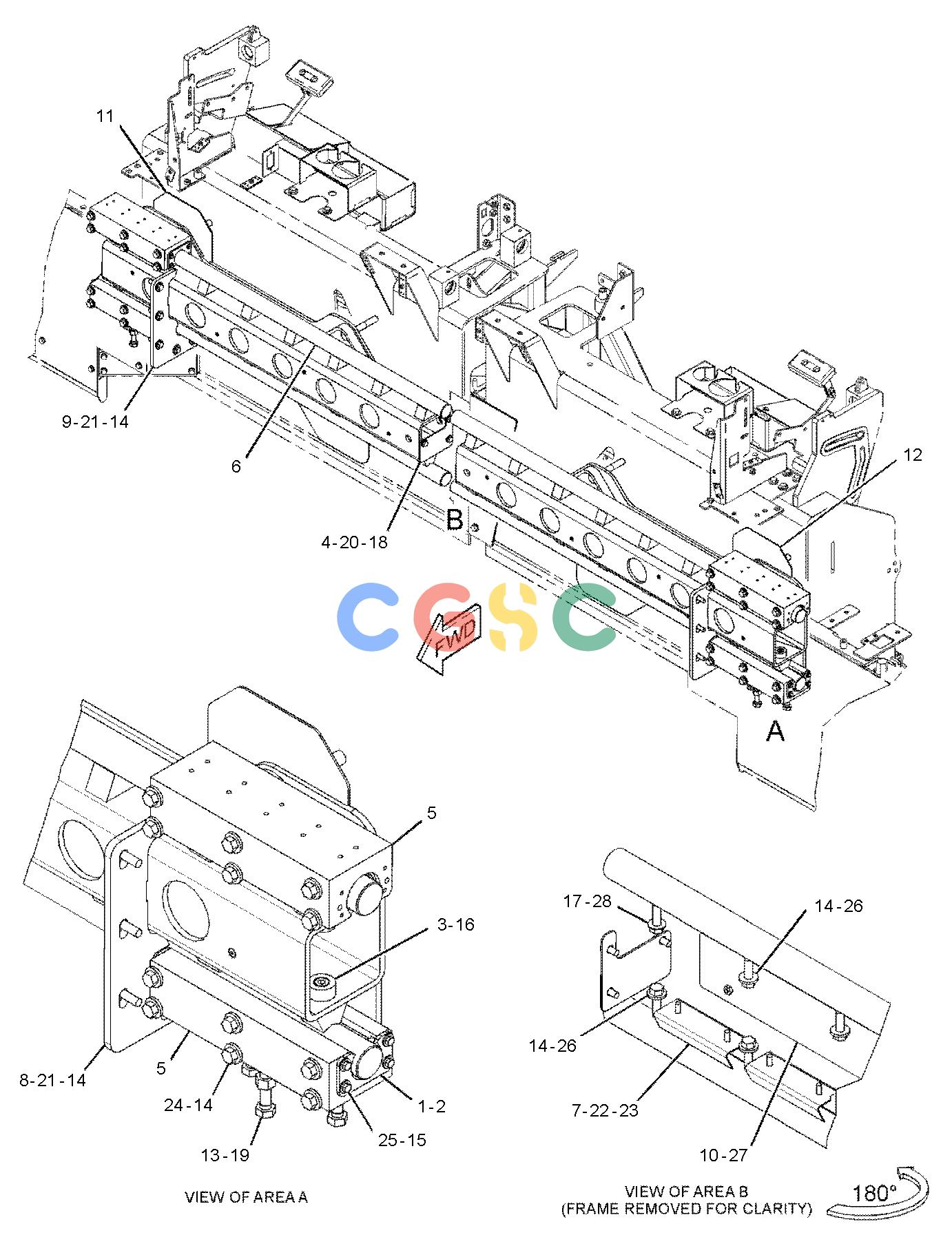

卡特零件查询（BG1055E） 328-3518: CARRIAGE GP-EXTENDER
广数供应链运营团队, 16 02月, 2025，浏览：
979 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 185-5425 | [6] | SCRAPER | |
| 2. | 196-2557 | [6] | SCRAPER AS | |
| 3. | 206-6717 | [4] | PLATE | |
| 4. | 217-7684 | [2] | COVER | |
| 5. | 218-1857 | [4] | HOUSING AS | |
| | | | (EACH INCLUDES) |
| | 196-2556 | [1] | BUSHING | |
| 6. | 239-3554 | [4] | SHAFT-SLIDE | |
| 7. | 241-0203 | [14] | CHANNEL | |
| 8. | 309-9204 | [1] | PLATE | |
| 9. | 309-9205 | [1] | PLATE | |
| 10. | 341-8403 | [2] | COVER AS | |
| 11. | 353-2357 | [1] | FRAME AS(RH) | |
| 12. | 353-2358 | [1] | FRAME AS(LH) | |
| 13. | 170-8555M | [6] | BOLT(M16X2X90-MM) | |
| 14. | 5P-1076 | [60] | WASHER-HARD(13.5X30X4-MM THK) | |
| 15. | 5P-4115 | [24] | WASHER-HARD(7.2X19X2-MM THK) | |
| 16. | 5S-2389 | [4] | BOLT-SOCKET HEAD(1/2-13X2.75-IN) | |
| 17. | 7X-0605 | [2] | WASHER-HARD(13X28X1.6-MM THK) | |
| 18. | 7X-7729 | [6] | WASHER(11X25X3-MM THK) | |
| 19. | 8T-4132M | [6] | NUT(M16X2-THD) | |
| 20. | 8T-4137M | [6] | BOLT(M10X1.5X20-MM) | |
| 21. | 8T-4184M | [10] | BOLT(M12X1.75X45-MM) | |
| 22. | 8T-4189M | [28] | BOLT(M8X1.25X20-MM) | |
| 23. | 8T-4224 | [28] | WASHER-HARD(8.8X16X2-MM THK) | |
| 24. | 8T-8917 | [24] | BOLT(1/2-13X1.25-IN) | |
| 25. | 8T-9364 | [24] | BOLT(1/4-20X0.625-IN) | |
| 26. | 8T-9389 | [26] | BOLT(1/2-13X2.75-IN) | |
| 27. | 9X-6155M | [8] | BOLT-SOCKET HEAD(M6X1X16.7-MM) | |
| 28. | 7X-0325 | [2] | BOLT(1/2-13X2.5-IN) | |
| | M | | METRIC PART |
