卡特零件查询（BG1055E） 369-9346: GATE GP-END
广数供应链运营团队, 16 02月, 2025，浏览：
451 次

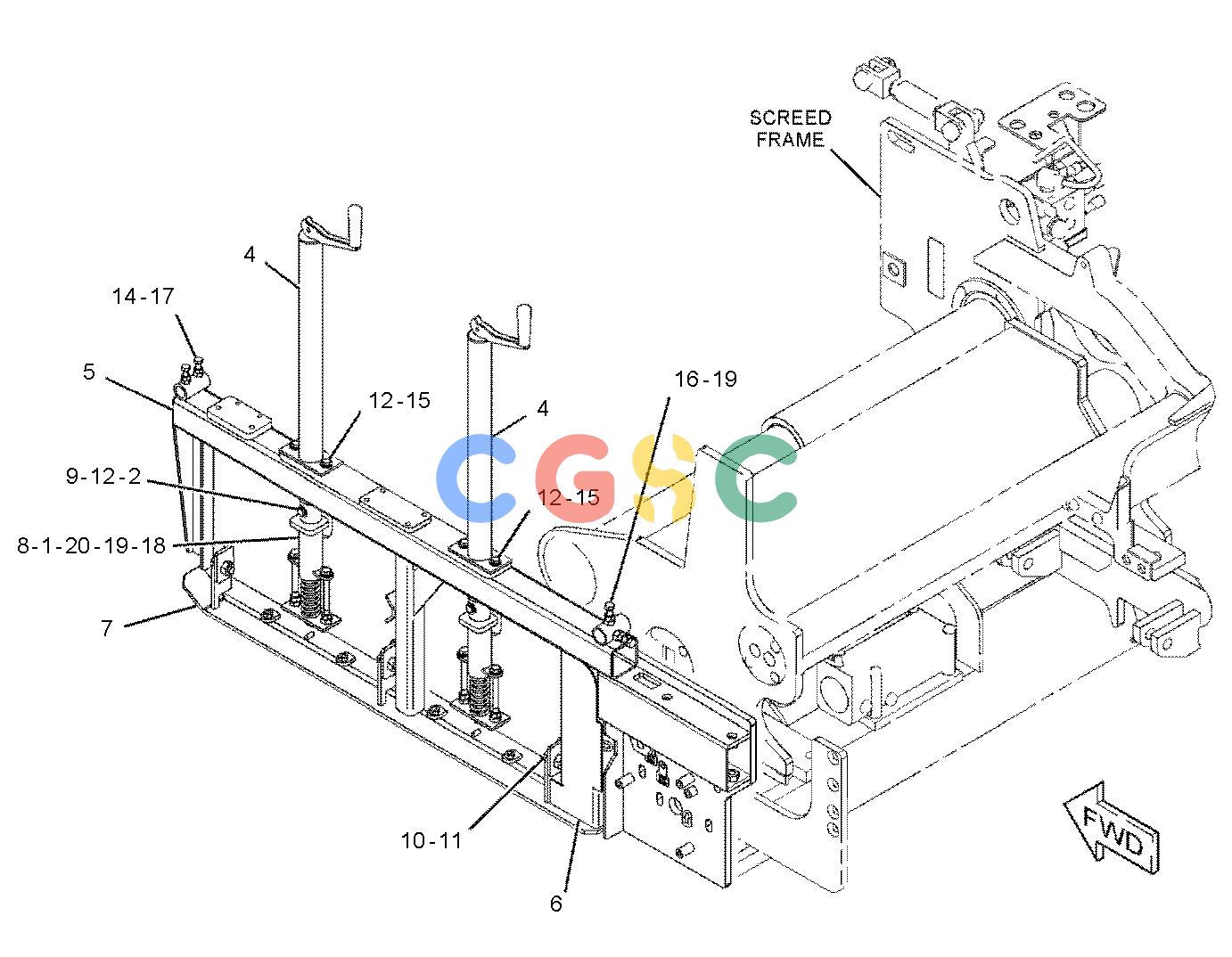

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 258-0735 | [2] | SPRING | |
| 2. | 351-0090 | [2] | PIN | |
| 4. | 417-2475 | [2] | ACTUATOR AS | |
| 5. | 368-2862 | [1] | ARM AS(LH) | |
| 6. | 368-2864 | [1] | GATE AS | |
| 7. | 368-2867 | [1] | SHOE AS | |
| 8. | 368-8644 | [2] | SUPPORT AS | |
| 9. | 5P-0372 | [2] | LOCK PIN | |
| 10. | 7X-0515 | [3] | WASHER-HARD(17X35X5-MM THK) | |
| 11. | 7X-2553M | [3] | BOLT(M16X2X40-MM) | |
| 12. | 7X-7729 | [6] | WASHER(11X25X3-MM THK) | |
| 14. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 15. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 16. | 8T-4183M | [2] | BOLT(M12X1.75X40-MM) | |
| 17. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 18. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 19. | 8T-4244M | [6] | NUT(M12X1.75-THD) | |
| 20. | 8T-5001M | [4] | BOLT(M12X1.75X130-MM) | |
| | M | | METRIC PART |
