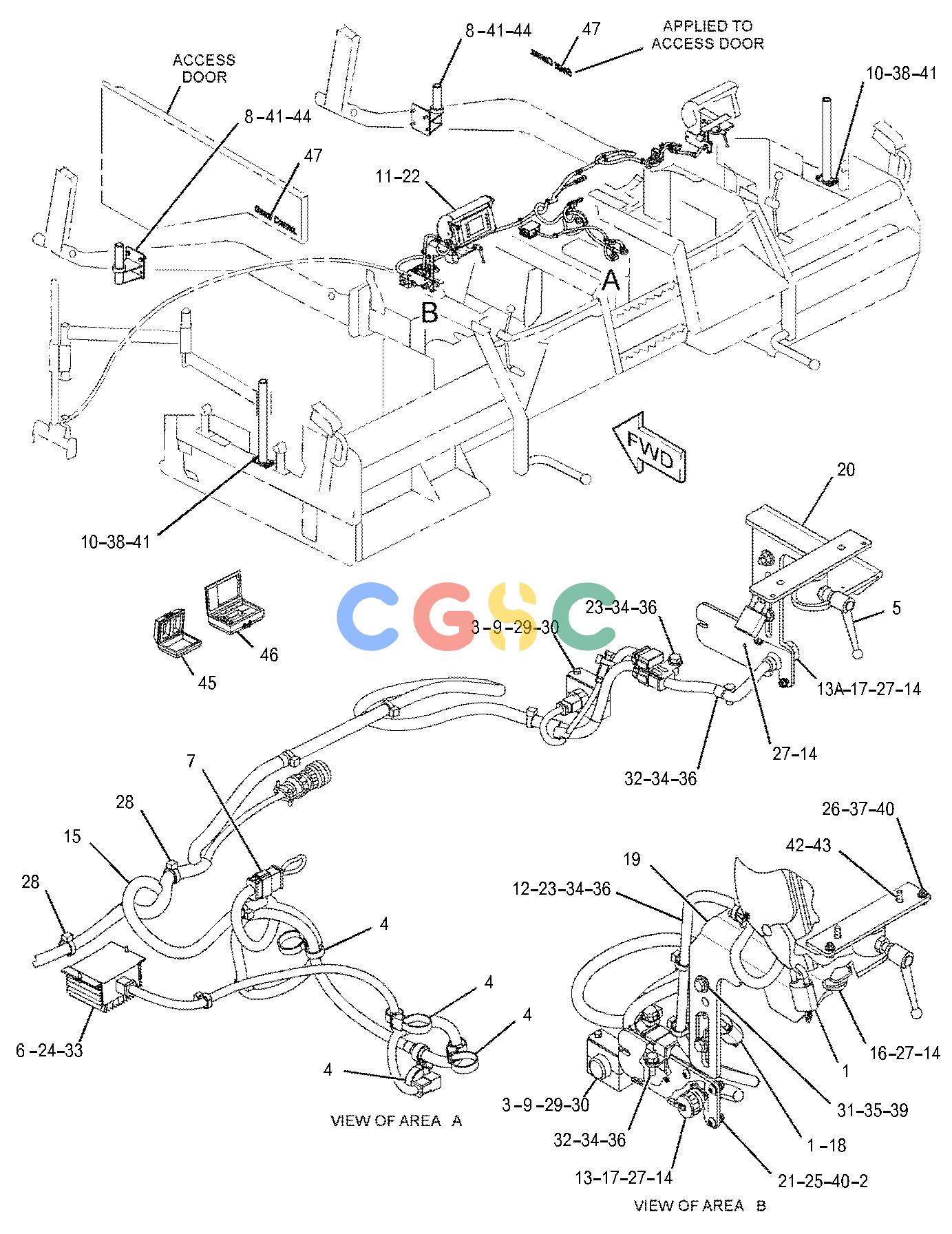

| 1. | 246-2641 | [3] | PADLOCK GP | |
| | | | (EACH INCLUDES) |
| | 5P-8500 | [1] | KEY | |
| 2. | 9X-2045M | [8] | SCREW-TRUSS HEAD(M6X1X20-MM) | |
| 3. | 7R-7951 | [2] | PLATE | |
| 4. | 177-2215 | [4] | STRAP-DUAL CLAMP | |
| 5. | 203-3977 | [2] | LEVER | |
| 6. | 340-7160C | [1] | CONVERTER-POWER(24-VOLT TO 12-VOLT) | |
| 7. | 218-3623 | [1] | PLUG AS-CONNECTOR(2-PIN) | |
| | 9X-3401 | [4] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 8T-8737 | [8] | PLUG-SEAL | |
| | 102-8801 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 114-5533E | | WIRE(00-GA, BLACK)(30-CM) | |
| 8. | 257-2030 | [2] | MOUNT AS | |
| 9. | 289-9632 | [2] | RECEPTACLE AS | |
| 10. | 298-0643 | [2] | PLATE AS | |
| 11. | 330-6558Y | [1] | DISPLAY GP-MONITOR(ACCUGRADE) | |
| 12. | 330-8586 | [1] | HARNESS AS-MONITOR | |
| | 126-1767 | [10] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 332-6698 | [1] | PLUG AS | |
| | 8T-8737 | [2] | PLUG-SEAL | |
| | 102-8801 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 13. | 330-8591 | [1] | HARNESS AS-SENSOR(GRADE CONTROL)(LH) | |
| 13A. | 330-8591 | [1] | HARNESS AS-SENSOR(GRADE CONTROL)(RH) | |
| | | | (EACH HARNESS AS-SENSOR INCLUDES) |
| | 9X-3401 | [9] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 8T-8737 | [3] | PLUG-SEAL | |
| | 190-7614 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 14. | 9B-1117 | [12] | LOCKWASHER | |
| 15. | 331-9066 | [1] | HARNESS AS-CHASSIS(ACCUGRADE) | |
| | 126-1767 | [5] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 155-2255 | [3] | KIT-CONNECTING PLUG(12-PIN) | |
| | 155-2256 | [2] | KIT-CONNECTING PLUG(12-PIN) | |
| | 155-2260 | [2] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2271 | [2] | KIT-CONNECTING PLUG(4-PIN) | |
| | 155-2274 | [1] | KIT-CONNECTING PLUG(6-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [43] | PLUG-SEAL | |
| | 102-8805 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | 102-8801 | [2] | KIT-RECEPTACLE(12-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 134-2540 | [2] | RECEPTACLE AS-CONNECTOR | |
| | 194-5226 | [62] | WIRE AS(16-GA) | |
| | | | -OR- |
| | 194-5227 | [62] | WIRE AS(14-GA) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(26-CM) | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(120-CM) | |
| 16. | 332-6699 | [1] | RECEPTACLE-CONNECTOR | |
| 17. | 332-6701 | [2] | CAP AS-PROTECTION | |
| 18. | 334-5153 | [2] | PLATE-LOCK | |
| 19. | 336-6744 | [1] | BRACKET AS(LH) | |
| 20. | 336-6746 | [1] | BRACKET AS(RH) | |
| 21. | 337-0825 | [2] | PLATE | |
| 22. | 351-8709Y | [1] | ELECTRONICS GP-MONITOR(GRADE CONTROL DISPLAY) | |
| 23. | 130-5300 | [4] | CLIP | |
| 24. | 4B-4863 | [2] | WASHER(4.7X11X1.2-MM THK) | |
| 25. | 5C-2890M | [8] | NUT(M6X1-THD) | |
| 26. | 6V-7743M | [2] | LOCKNUT(M6X1-THD) | |
| 27. | 6V-9671M | [12] | SCREW-MACHINE(M3X0.5X12-MM) | |
| 28. | 7K-1181 | [17] | STRAP-CABLE | |
| 29. | 7R-7941 | [4] | CLAMP | |
| 30. | 7X-2535M | [4] | BOLT(M6X1X60-MM) | |
| 31. | 7X-7729 | [8] | WASHER(11X25X3-MM THK) | |
| 32. | 8M-2770 | [2] | CLIP(LOOP) | |
| 33. | 8T-4647CM | [2] | SCREW-MACHINE(M4X0.7X20-MM) | |
| 34. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 35. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 36. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 37. | 8T-4138M | [2] | BOLT(M6X1X20-MM) | |
| 38. | 8T-4179M | [8] | BOLT(M12X1.75X20-MM) | |
| 39. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 40. | 8T-4205 | [12] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 41. | 8T-4223 | [14] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 42. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 43. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| 44. | 8T-4956M | [6] | BOLT(M12X1.75X35-MM) | |
| 45. | 351-4476C | [1] | CASE-CARRYING(DISPLAY MOUNT) | |
| 46. | 351-4477C | [1] | CASE-CARRYING(GRADE SENSOR) | |
| 47. | 371-6464 | [2] | FILM-IDENTIFICATION(GRADE CONTROL) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
