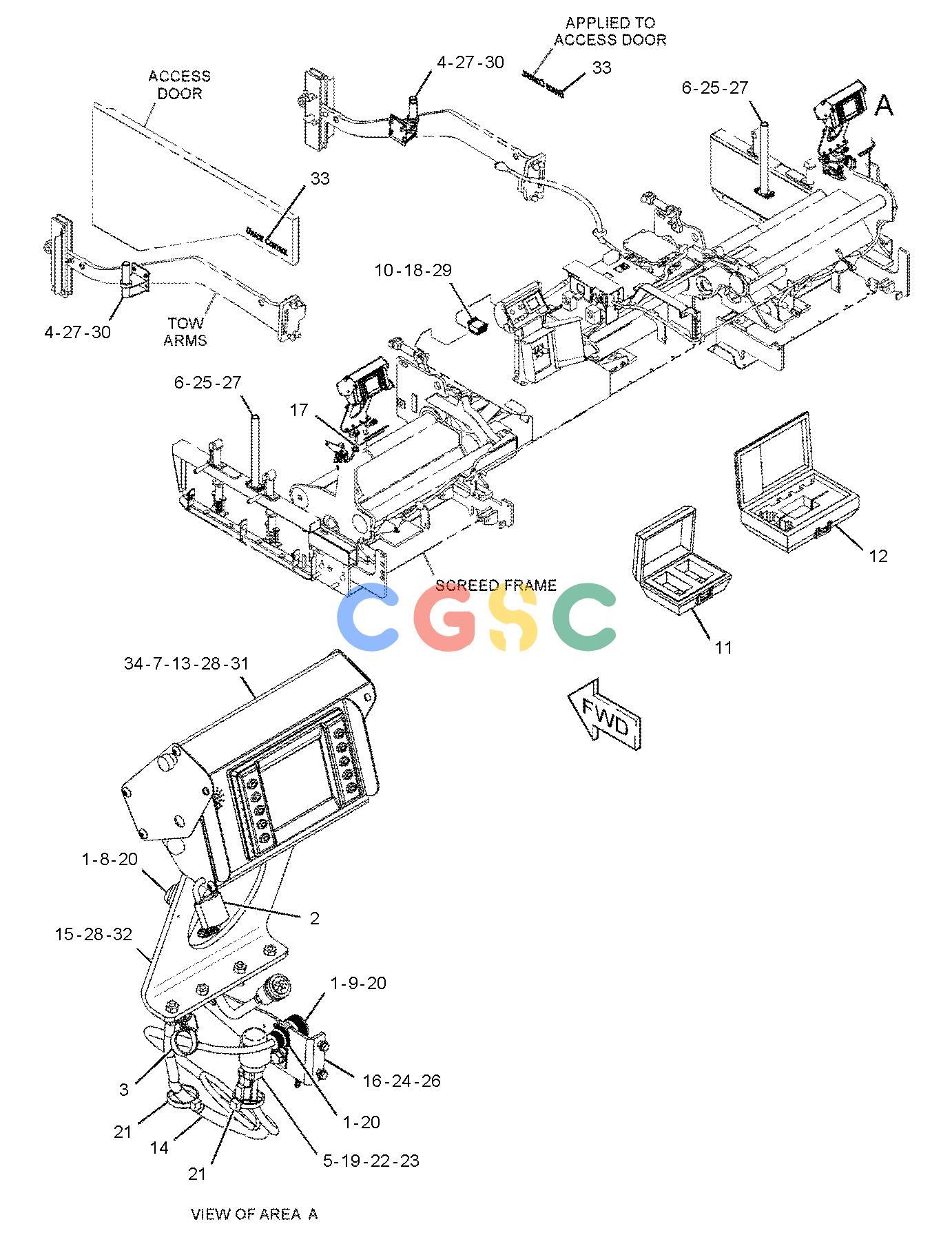

卡特零件查询（BG1055E） 362-8413: CONTROL GP-GRADE & SLOPE
广数供应链运营团队, 16 02月, 2025，浏览：
867 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9B-1117 | [14] | LOCKWASHER | |
| 2. | 246-2641 | [2] | PADLOCK GP | |
| | | | (EACH INCLUDES) |
| | 5P-8500 | [1] | KEY | |
| 3. | 177-2215 | [2] | STRAP-DUAL CLAMP | |
| 4. | 257-2030 | [2] | MOUNT AS | |
| 5. | 289-9632 | [2] | RECEPTACLE AS | |
| 6. | 298-0643 | [2] | PLATE AS | |
| 7. | 330-6558Y | [2] | DISPLAY GP-MONITOR(ACCUGRADE) | |
| 8. | 332-6699 | [2] | RECEPTACLE-CONNECTOR | |
| 9. | 332-6701 | [2] | CAP AS-PROTECTION | |
| 10. | 340-7160 | [1] | CONVERTER-POWER(24-VOLT TO 12-VOLT) | |
| 11. | 351-4476 | [1] | CASE-CARRYING | |
| 12. | 351-4477 | [1] | CASE-CARRYING | |
| 13. | 351-8709Y | [2] | ELECTRONICS GP-MONITOR(GRADE CONTROL DISPLAY) | |
| 14. | 362-6641 | [1] | HARNESS AS-SENSOR(GRADE CONTROL) | |
| | 118-2967 | [1] | PLUG AS-CONNECTOR | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2271 | [1] | KIT-CONNECTING PLUG(4-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 332-6698 | [1] | PLUG AS | |
| | 8T-8737 | [1] | PLUG-SEAL | |
| | 134-2540 | [1] | RECEPTACLE AS-CONNECTOR | |
| | 194-5226 | [6] | WIRE AS(16-GA) | |
| | | | -OR- |
| | 194-5227 | [6] | WIRE AS(14-GA) | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(55-CM) | |
| 15. | 377-9913 | [2] | BRACKET AS | |
| 16. | 362-8417 | [2] | BRACKET AS | |
| 17. | 362-6640 | [1] | HARNESS AS-CHASSIS(ACCUGRADE) | |
| | 118-2967 | [1] | PLUG AS-CONNECTOR | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2271 | [1] | KIT-CONNECTING PLUG(4-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS,WEDGE & INTERFACE SEAL) |
| | 332-6698 | [1] | PLUG AS | |
| | 8T-8737 | [1] | PLUG-SEAL | |
| | 134-2540 | [1] | RECEPTACLE AS-CONNECTOR | |
| | 194-5226 | [6] | WIRE AS(16-GA) | |
| | | | -OR- |
| | 194-5227 | [6] | WIRE AS(14-GA) | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(50-CM) | |
| 18. | 4B-4863 | [2] | WASHER(4.7X11X1.2-MM THK) | |
| 19. | 4D-7388 | [2] | CLIP | |
| 20. | 6V-9671M | [14] | SCREW-MACHINE(M3X0.5X12-MM) | |
| 21. | 7K-1181 | [4] | STRAP-CABLE | |
| 22. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 23. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 24. | 8T-4138M | [4] | BOLT(M6X1X20-MM) | |
| 25. | 8T-4179M | [8] | BOLT(M12X1.75X20-MM) | |
| 26. | 8T-4205 | [4] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 27. | 8T-4223 | [14] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 28. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 29. | 8T-4647M | [2] | SCREW-MACHINE(M4X0.7X20-MM) | |
| 30. | 8T-4956M | [6] | BOLT(M12X1.75X35-MM) | |
| 31. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 32. | 8T-7547M | [4] | BOLT(M8X1.25X30-MM) | |
| 33. | 371-6464 | [2] | FILM-IDENTIFICATION(GRADE CONTROL) | |
| 34. | | [2] | FILM-IDENTIFICATION(GRADE CONTROL ENABLED) |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
