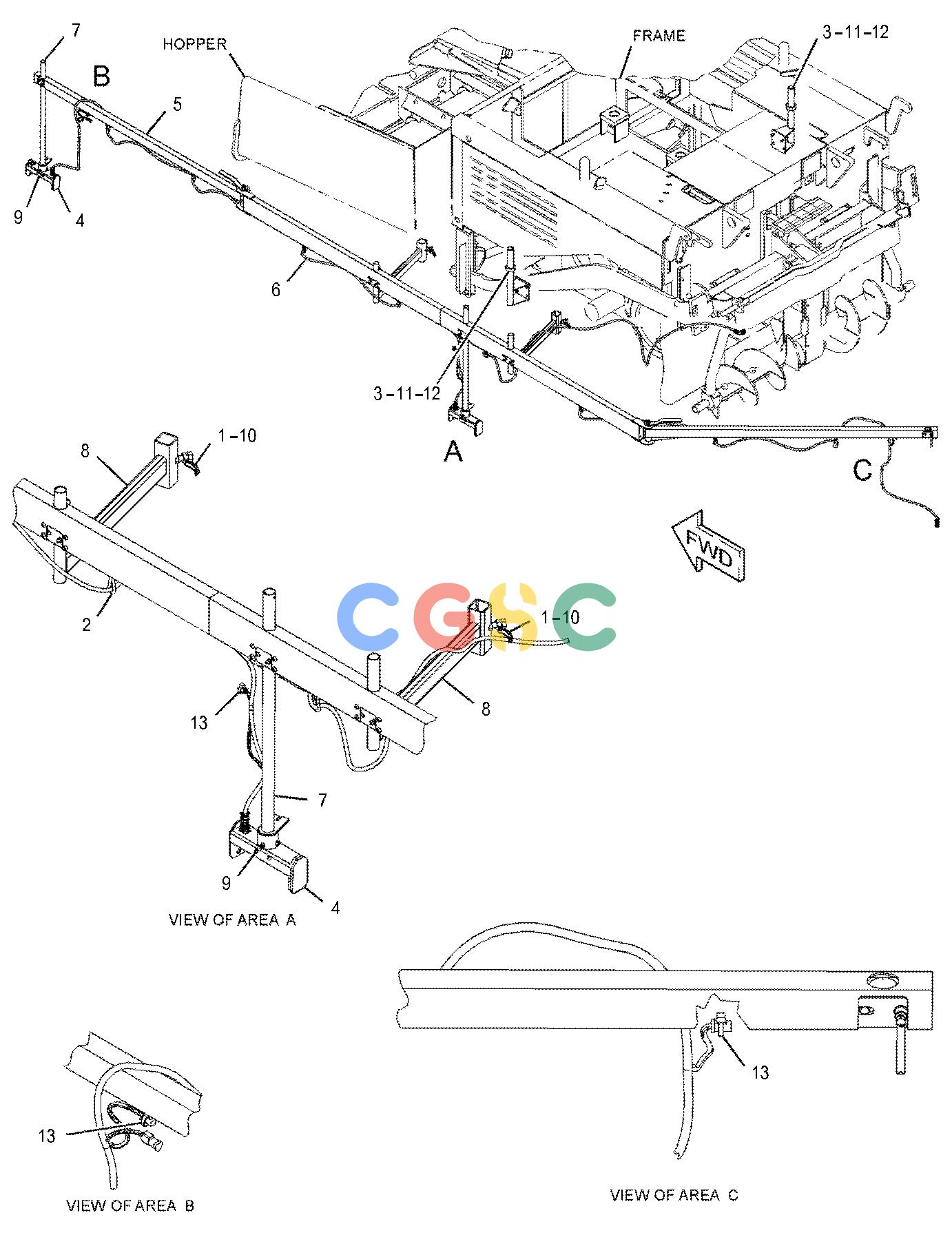

卡特零件查询（BG1055E） 332-9203: GRADE CONTROL GP
广数供应链运营团队, 16 02月, 2025，浏览：
1002 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 134-9621 | [2] | HANDLE | |
| 2. | 237-7508 | [8] | LINK | |
| 3. | 257-2029 | [2] | MOUNT AS | |
| 4. | 315-6698 | [2] | SENSOR AS-SONIC(GRADE CONTROL) | |
| 5. | 328-6121Y | [1] | BEAM GP-AVERAGING | |
| 6. | 330-8593 | [1] | HARNESS AS-SENSOR(GRADE CONTROL) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [1] | PLUG-SEAL | |
| | 134-2540 | [1] | RECEPTACLE AS-CONNECTOR | |
| | 180-9340 | [2] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(13-CM) | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(35-CM) | |
| 7. | 331-1991 | [2] | MOUNT AS-SENSOR | |
| 8. | 343-5816 | [2] | MOUNT AS-SENSOR | |
| 9. | 351-4852 | [2] | LEVER-CONTROL | |
| 10. | 7X-0366 | [2] | BOLT(3/4-10X2-IN) | |
| 11. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 12. | 8T-4956M | [6] | BOLT(M12X1.75X35-MM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
