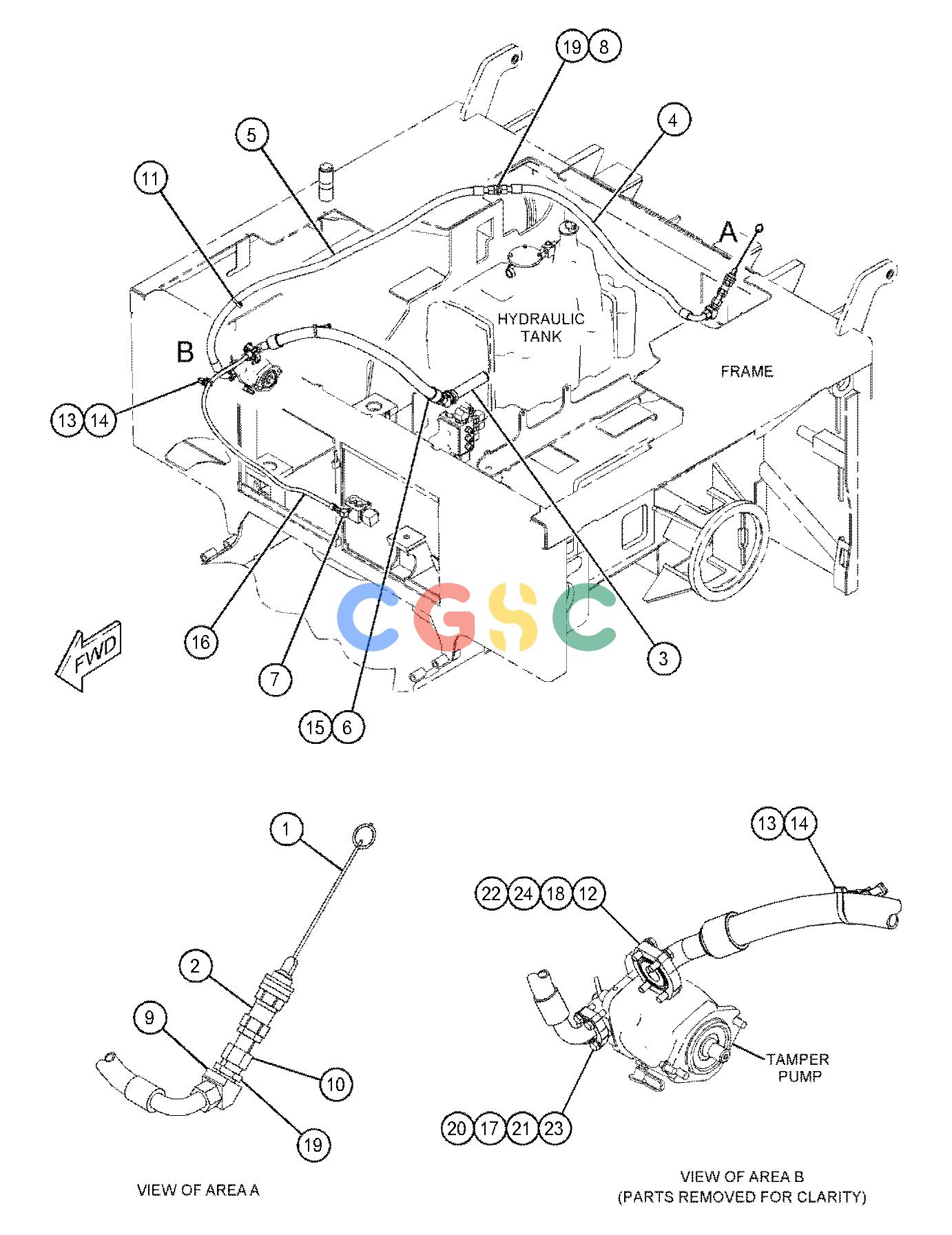

卡特零件查询（AP-1055F） 396-7134: LINES GP-TAMPER
广数供应链运营团队, 16 02月, 2025，浏览：
992 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 165-5694 | [1] | PLUG-DUST | |
| 2. | 173-7639J | [1] | COUPLING GP(HYDRAULIC LINES) | |
| 3. | 250-2783 | [1] | STRAINER AS(SUCTION)(HYDRAULIC TANK) | |
| | 030-4606 | [1] | SEAL-O-RING | |
| 4. | 430-8181I | [1] | HOSE AS | |
| 5. | 463-2344CI | [1] | HOSE AS | |
| 6. | 430-8183I | [1] | HOSE AS | |
| 7. | 148-8364 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8625 | [1] | ELBOW | |
| 8. | 155-2026 | [1] | UNION AS | |
| | 5K-9090 | [2] | SEAL-O-RING | |
| | 6V-8998 | [1] | UNION | |
| 9. | 155-6344 | [1] | ELBOW AS | |
| | 5K-9090 | [2] | SEAL-O-RING | |
| | 6V-8991 | [1] | ELBOW | |
| 10. | 164-5548 | [1] | COUPLING AS | |
| | 4I-6141 | [1] | ADAPTER | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 11. | 178-3620 | [1] | STRAP-DUAL CLAMP | |
| 12. | 1P-4582 | [2] | FLANGE-HALF | |
| 13. | 200-6345 | [2] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 14. | 204-2281 | [4] | STRAP-CABLE | |
| 15. | 204-9379 | [1] | ELBOW AS | |
| | 6K-6307 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| | 204-9378 | [1] | ELBOW | |
| 16. | 430-8177I | [1] | HOSE AS | |
| 17. | 4J-0520 | [1] | SEAL-O-RING | |
| 18. | 4J-0527 | [1] | SEAL-O-RING | |
| 19. | 6V-9172 | [2] | NUT(1-7/16-12-THD) | |
| 20. | 8C-3206 | [2] | FLANGE-HALF | |
| 21. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 22. | 8T-4183M | [4] | BOLT(M12X1.75X40-MM) | |
| 23. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 24. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 191-6944J | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RING & SEAL RINGS) |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
