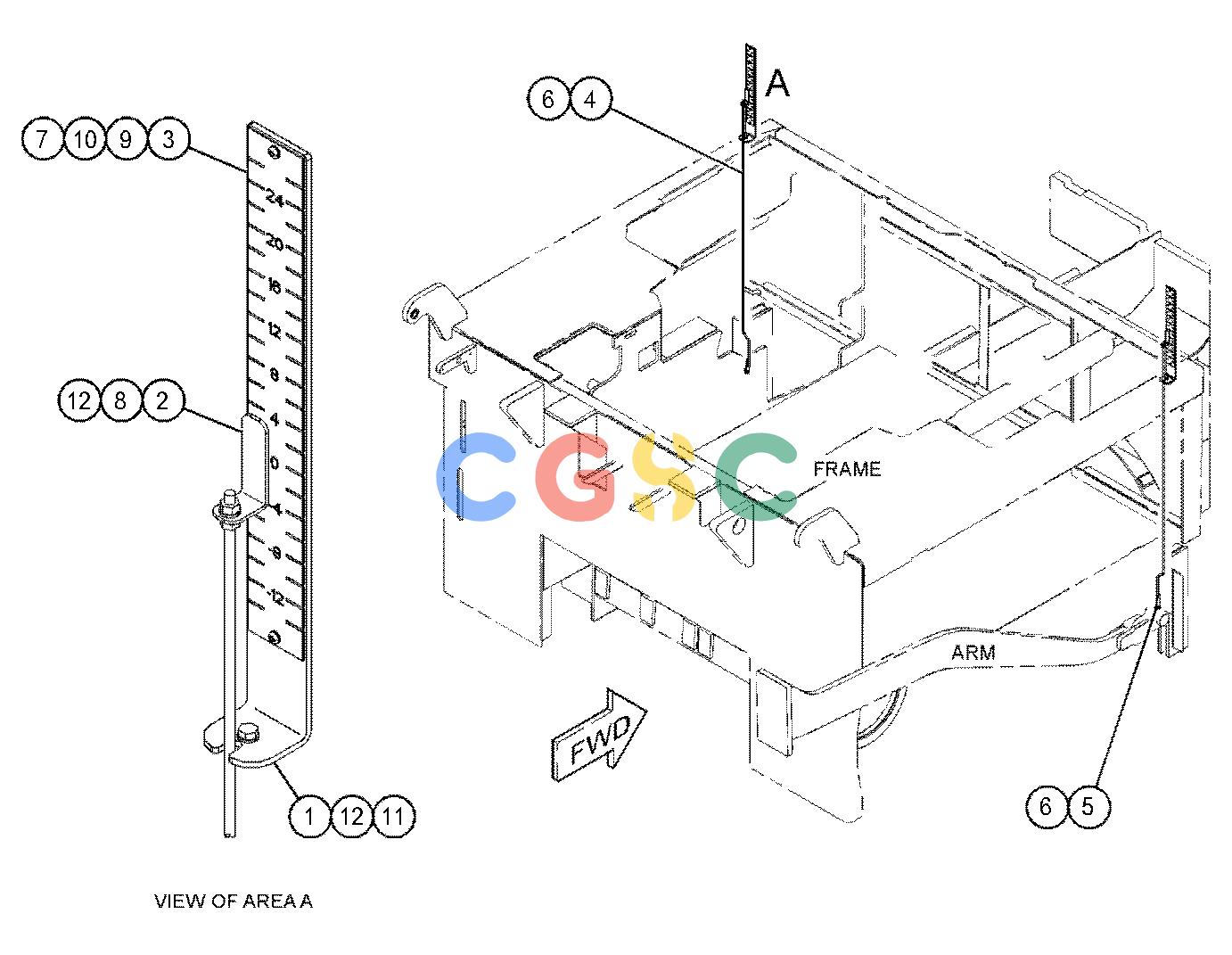

卡特零件查询（AP-1055F） 416-4105: INDICATOR GP-TOW POINT
广数供应链运营团队, 16 02月, 2025，浏览：
246 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 306-5150 | [2] | PLATE | |
| 2. | 306-5153 | [2] | BRACKET | |
| 3. | 430-3918 | [2] | PLATE-SCALE | |
| 4. | 430-5495 | [1] | ROD AS(LH) | |
| 5. | 430-5496 | [1] | ROD AS(RH) | |
| 6. | 192-1329 | [2] | BOLT-SPECIAL | |
| 7. | 5C-2874M | [4] | NUT(M5X0.8-THD) | |
| 8. | 5C-7261M | [4] | NUT(M8X1.25-THD) | |
| 9. | 7Y-7388M | [4] | SCREW-BUTTON HEAD(M5X0.8X12-MM) | |
| 10. | 8T-0328 | [4] | WASHER-HARD(5.5X10X1-MM THK) | |
| 11. | 8T-4200M | [2] | BOLT(M8X1.25X16-MM) | |
| 12. | 8T-4224 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
