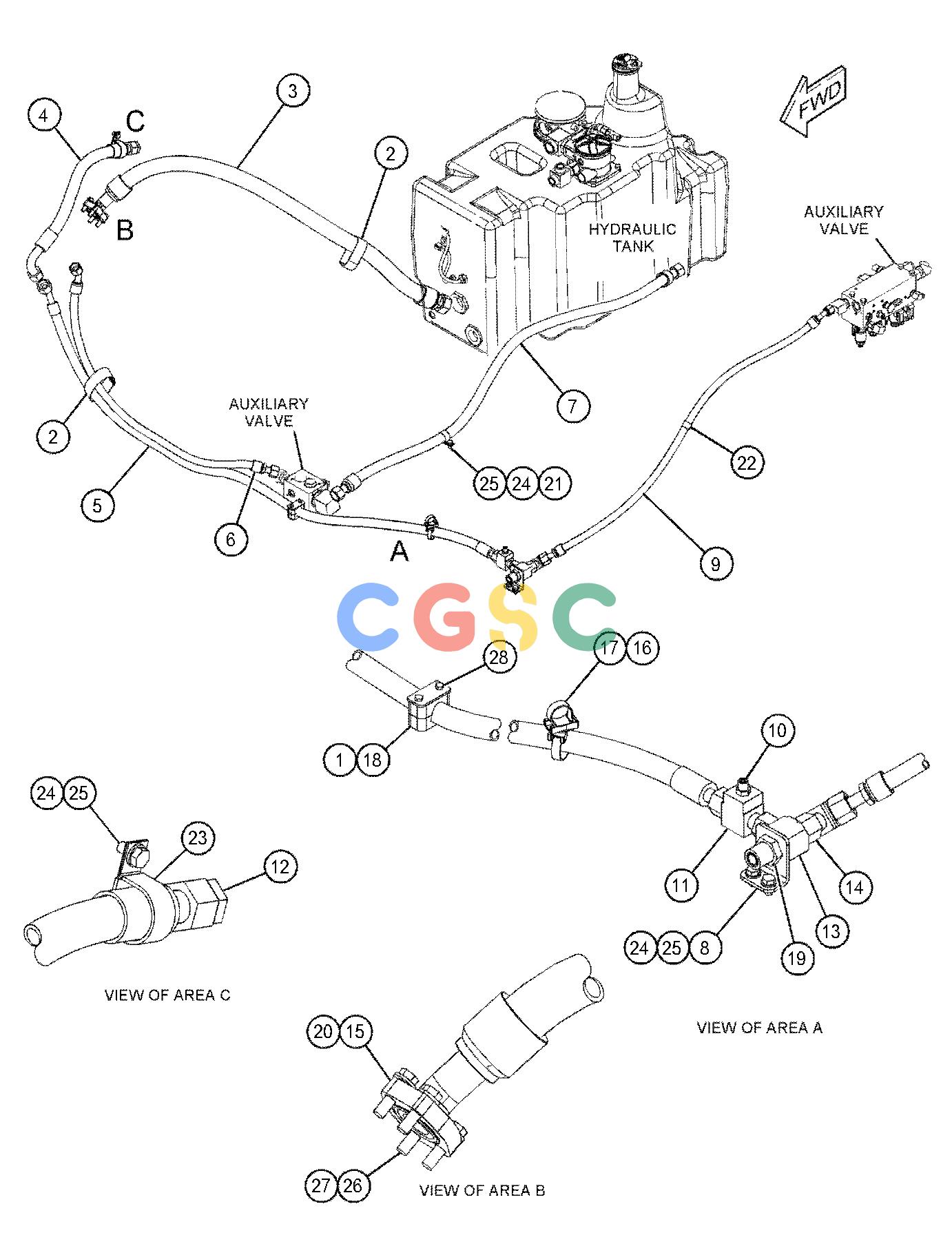

卡特零件查询（AP-1055F） 392-4702: LINES GP-PUMP
广数供应链运营团队, 16 02月, 2025，浏览：
1013 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 143-9644 | [1] | PLATE-RETAINER | |
| 2. | 364-4569 | [2] | STRAP | |
| 3. | 423-4829I | [1] | HOSE AS | |
| 4. | 423-4833I | [1] | HOSE AS | |
| 5. | 423-4839I | [1] | HOSE AS | |
| 6. | 428-7067I | [1] | HOSE AS | |
| 7. | 428-7068I | [1] | HOSE AS | |
| 8. | 428-7069 | [1] | BRACKET | |
| 9. | 428-7088I | [1] | HOSE AS | |
| 10. | 148-8325 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8641 | [1] | CONNECTOR | |
| 11. | 148-8430 | [1] | TEE AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 7X-0873 | [1] | TEE | |
| 12. | 150-3073 | [1] | PLUG AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-9512 | [1] | PLUG(1-7/16-12-THD) | |
| 13. | 164-6862 | [1] | TEE AS | |
| | 6V-9160 | [1] | TEE-FACE SEAL | |
| | 6V-9746 | [3] | SEAL-O-RING | |
| 14. | 171-6723 | [1] | ELBOW AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 8T-8899 | [1] | ELBOW | |
| 15. | 1P-4579 | [2] | FLANGE-HALF | |
| 16. | 200-6345 | [1] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 17. | 204-2281 | [2] | STRAP-CABLE | |
| 18. | 206-1511 | [2] | CLAMP-HALF | |
| 19. | 2P-1293 | [1] | LOCKNUT(1-3/16-12-THD) | |
| 20. | 4J-0524 | [1] | SEAL-O-RING | |
| 21. | 4S-4455 | [1] | CLIP | |
| 22. | 6D-4244 | [1] | CLIP(LOOP) | |
| 23. | 7D-1553 | [1] | CLIP | |
| 24. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 25. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 26. | 8T-4184M | [4] | BOLT(M12X1.75X45-MM) | |
| 27. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 28. | 9X-2480M | [2] | BOLT(M6X1X45-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
