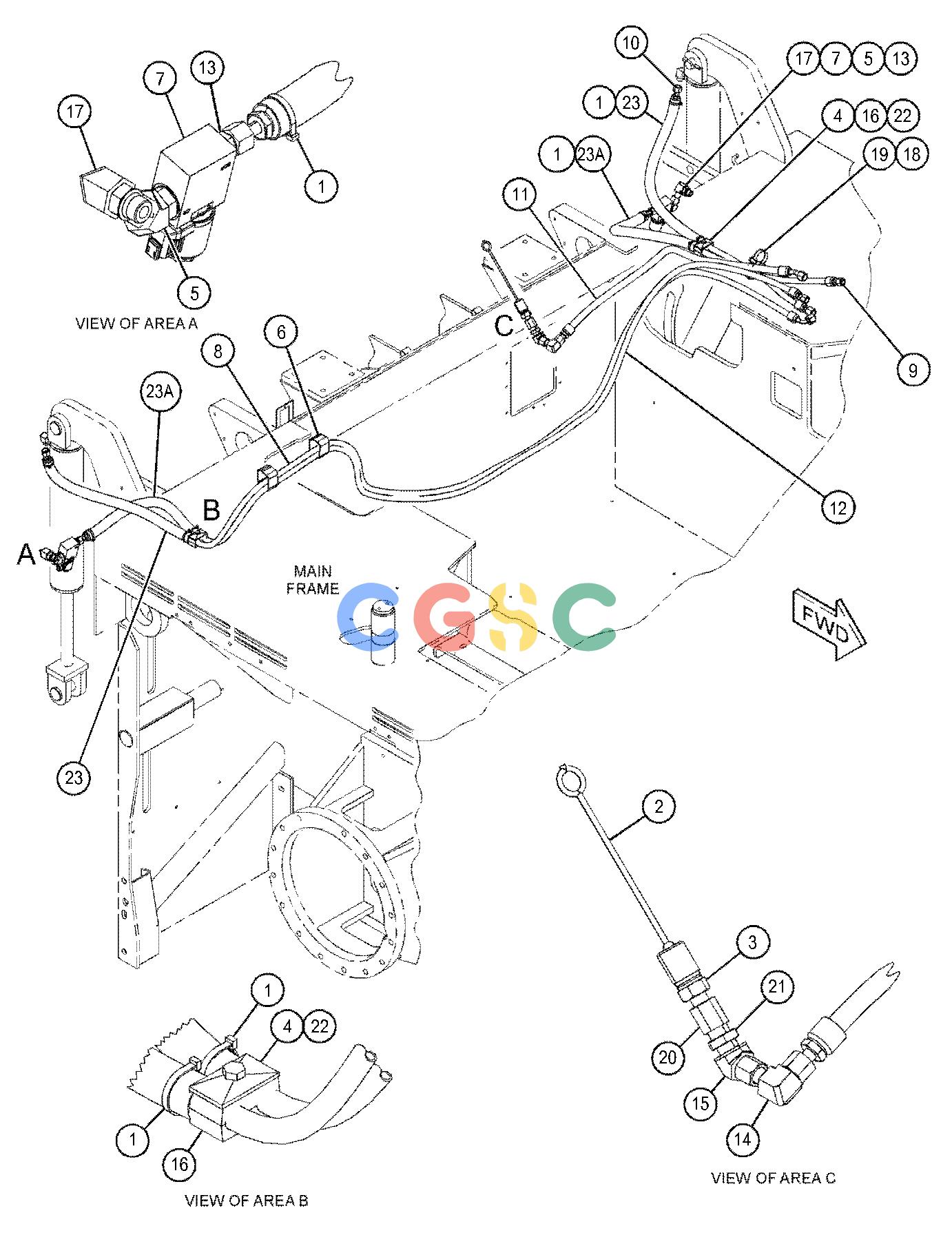

卡特零件查询（AP-1055F） 392-4697: LINES GP-SCREED
广数供应链运营团队, 16 02月, 2025，浏览：
127 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [8] | STRAP-CABLE | |
| 2. | 5R-6302 | [1] | CAP-DUST | |
| 3. | 5R-6306 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| 4. | 102-8703 | [2] | PLATE-COVER | |
| 5. | 148-8354 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9002 | [1] | ELBOW | |
| 6. | 364-4568 | [2] | STRAP | |
| 7. | 396-7157 | [2] | VALVE GP-SOLENOID(SCREED LIFT, EXTEND) | |
| | | | (EACH INCLUDES) |
| | 446-1425HJ | [1] | VALVE GP-CONTROL | |
| | 446-1462 | [1] | COIL-SOLENOID | |
| | 446-5511 | [1] | ORIFICE | |
| 8. | 396-7189I | [1] | HOSE AS | |
| 9. | 396-7190I | [1] | HOSE AS | |
| 10. | 396-7191I | [1] | HOSE AS | |
| 11. | 439-5120I | [1] | HOSE AS | |
| 12. | 441-4352I | [1] | HOSE AS | |
| 13. | 148-8336 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 14. | 148-8370 | [1] | ELBOW AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9851 | [1] | ELBOW | |
| 15. | 148-8380 | [1] | ELBOW AS | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8988 | [1] | ELBOW | |
| 16. | 154-4880 | [4] | CLAMP-HALF | |
| 17. | 171-6728 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 8T-0249 | [1] | ELBOW(SWIVEL) | |
| 18. | 200-6345 | [1] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 19. | 204-2281 | [2] | STRAP-CABLE | |
| 20. | 250-1440 | [1] | ADAPTER AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 7X-3164 | [1] | ADAPTER-SWIVEL | |
| 21. | 6V-9169 | [1] | NUT(13/16-16-THD) | |
| 22. | 7X-2537M | [2] | BOLT(M8X1.25X35-MM) | |
| 23. | 154-1420E | | SLEEVE(62-CM EACH) | |
| 23A. | 154-1420E | | SLEEVE(53.5-CM EACH) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 446-1389J | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RING SEALS & BACKUP RING) |
| | 446-5509H | [1] | KIT-NUT | |
| | | | (INCLUDES NUT & O-RING SEAL) |
| | E | | ORDER BY THE CENTIMETER |
| | H | | KIT MARKED H SERVICES PART(S) MARKED H |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
