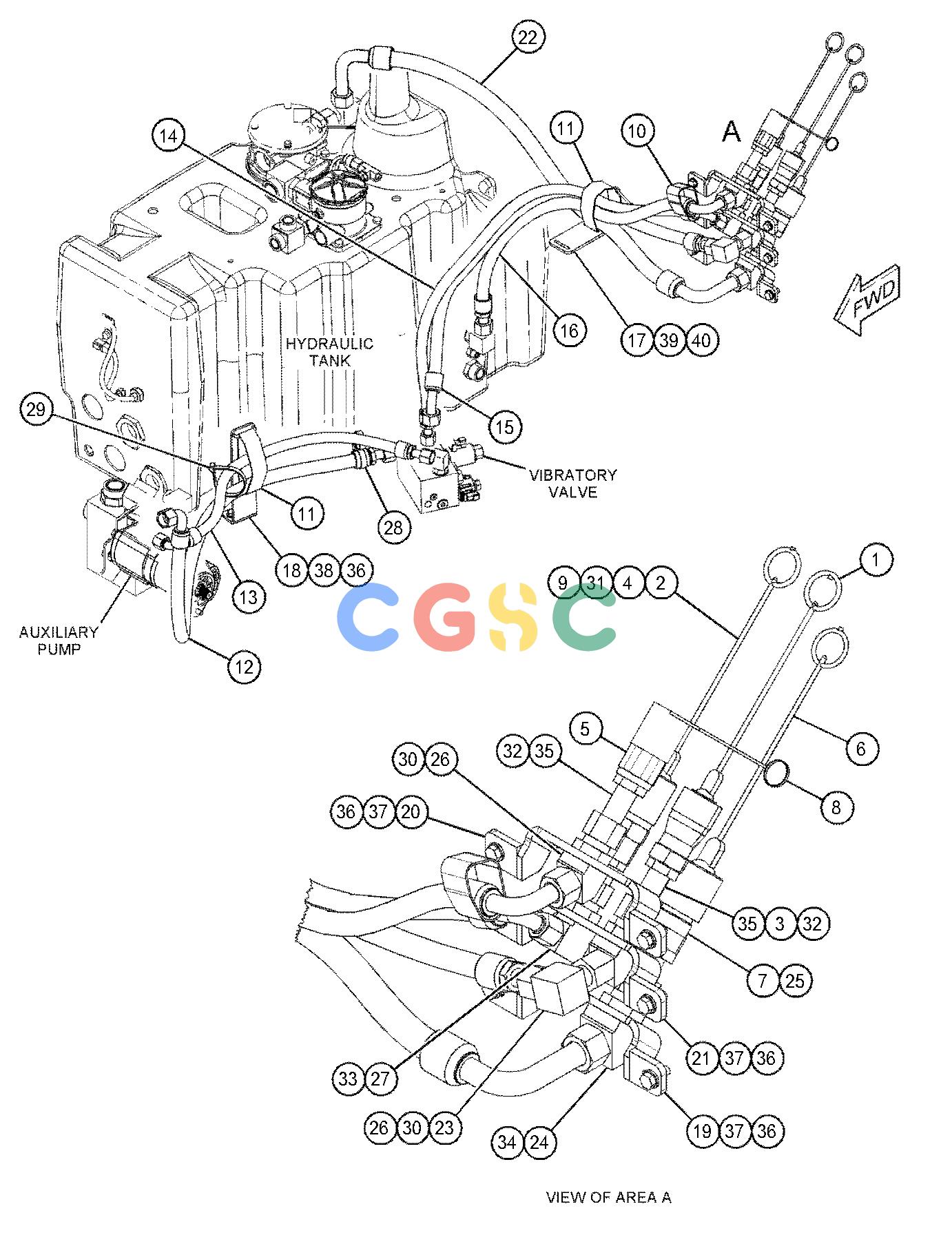

卡特零件查询（AP-1055F） 392-4688: LINES GP-VIBRATORY
广数供应链运营团队, 16 02月, 2025，浏览：
990 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5R-5718 | [1] | PLUG-DUST | |
| 2. | 5R-5719 | [1] | CAP-DUST | |
| 3. | 5R-6304 | [1] | COUPLER AS-QUICK DISCONNECT(FEMALE) | |
| 4. | 5R-6305 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| 5. | 142-8949 | [1] | FITTING AS(QUICK DISCONNECT, FEMALE) | |
| 6. | 165-5695 | [1] | CAP-DUST | |
| 7. | 173-7638J | [1] | FITTING AS | |
| 8. | 187-5302 | [1] | CAP-DUST | |
| 9. | 302-1413 | [1] | ADAPTER AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 7X-3165 | [1] | ADAPTER | |
| 10. | 364-4568 | [1] | STRAP | |
| 11. | 364-4570 | [2] | STRAP | |
| 12. | 423-4894I | [1] | HOSE AS | |
| 13. | 423-4895I | [1] | HOSE AS | |
| 14. | 423-4896I | [1] | HOSE AS | |
| 15. | 423-4897I | [1] | HOSE AS | |
| 16. | 423-4898I | [1] | HOSE AS | |
| 17. | 423-4901 | [1] | PLATE | |
| 18. | 423-4902 | [1] | BRACKET AS | |
| 19. | 432-6206 | [1] | PLATE AS | |
| 20. | 432-6209 | [1] | PLATE AS | |
| 21. | 432-6210 | [1] | PLATE AS | |
| 22. | 440-0758I | [1] | HOSE AS | |
| 23. | 148-8392 | [1] | ELBOW AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 6V-9853 | [1] | ELBOW | |
| 24. | 155-6344 | [1] | ELBOW AS | |
| | 5K-9090 | [2] | SEAL-O-RING | |
| | 6V-8991 | [1] | ELBOW | |
| 25. | 164-5548 | [1] | COUPLING AS | |
| | 4I-6141 | [1] | ADAPTER | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 26. | 165-4933 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8990 | [1] | ELBOW | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| 27. | 169-7404 | [1] | ELBOW AS | |
| | 6V-8982 | [1] | ELBOW | |
| | 7J-9108 | [2] | SEAL-O-RING | |
| 28. | 177-2215 | [1] | STRAP-DUAL CLAMP | |
| 29. | 204-2281 | [1] | STRAP-CABLE | |
| 30. | 2P-1293 | [2] | LOCKNUT(1-3/16-12-THD) | |
| 31. | 330-9753 | [1] | ADAPTER AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 5P-2211 | [1] | ADAPTER(1-1/16-12-THD) | |
| 32. | 3D-2824 | [2] | SEAL-O-RING | |
| 33. | 6V-9170 | [1] | NUT-BULKHEAD(1-14-THD) | |
| 34. | 6V-9172 | [1] | NUT(1-7/16-12-THD) | |
| 35. | 7R-0042 | [2] | ADAPTER | |
| 36. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 37. | 8T-4136M | [6] | BOLT(M10X1.5X25-MM) | |
| 38. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 39. | 8T-4200M | [2] | BOLT(M8X1.25X16-MM) | |
| 40. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 191-6944J | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RING SEAL) |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
