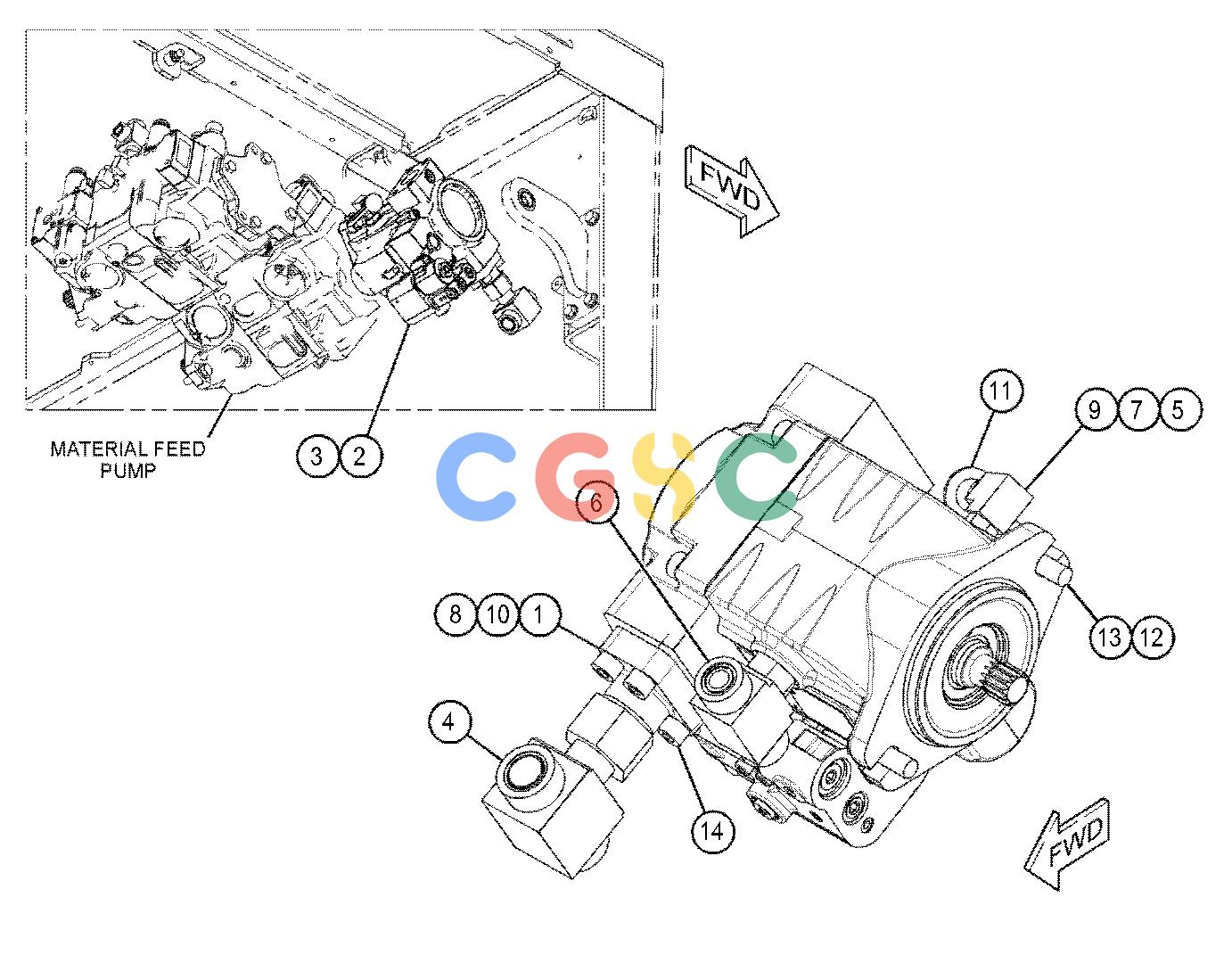

卡特零件查询（AP-1055F） 392-4689: PUMP & MTG GP-AUXILIARY
广数供应链运营团队, 16 02月, 2025，浏览：
604 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7Y-3731 | [1] | FLANGE | |
| 2. | 415-0269Y | [1] | PUMP GP-PISTON(AUXILIARY) | |
| 3. | 107-3120 | [1] | SEAL-O-RING | |
| 4. | 148-8445 | [1] | TEE AS | |
| | 5K-9090 | [2] | SEAL-O-RING | |
| | 6V-9847 | [1] | TEE-SWIVEL | |
| 5. | 150-4046 | [1] | ADAPTER AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 5P-1404 | [1] | ADAPTER | |
| 6. | 153-6260 | [1] | TEE AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| | 8T-8984 | [1] | TEE-O-RING PORT | |
| 7. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 8. | 1P-3703 | [1] | SEAL-RECTANGULAR | |
| 9. | 241-6215 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8076 | [1] | ELBOW | |
| 10. | 5K-9090 | [1] | SEAL-O-RING | |
| 11. | 6V-0852 | [1] | CAP-DUST | |
| 12. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 13. | 8T-4956M | [2] | BOLT(M12X1.75X35-MM) | |
| 14. | 9X-6032M | [4] | BOLT-SOCKET HEAD(M10X1.5X30-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
