卡特零件查询（AP-1055F） 469-9121: PUMP GP-GEAR
广数供应链运营团队, 16 02月, 2025，浏览：
562 次

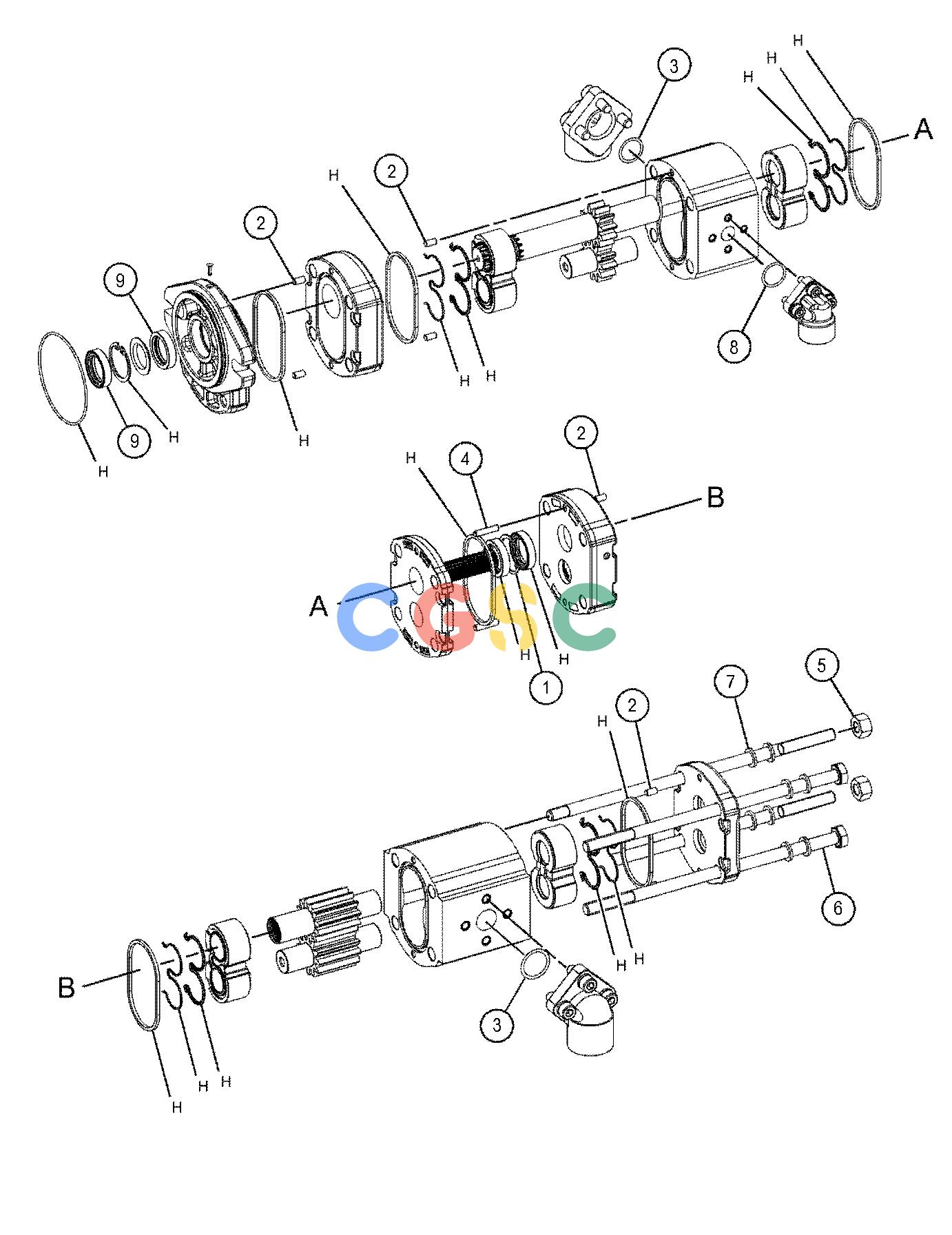

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 095-0936J | [2] | RING-RETAINING | |
| 2. | 150-5785 | [8] | DOWEL | |
| 3. | 033-6034 | [2] | SEAL-O-RING | |
| 4. | 421-2993 | [2] | PIN-SUPPORT | |
| 5. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 6. | 159-7463M | [2] | BOLT(M10X1.5X240-MM) | |
| 7. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 8. | 107-3117 | [1] | SEAL-O-RING | |
| 9. | 455-1570J | [4] | SEAL-LIP TYPE | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 475-5913J | [1] | KIT-SEAL | |
| | | | (ALSO INCLUDES PARTS MARKED 'H' IN GRAPHIC ) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
