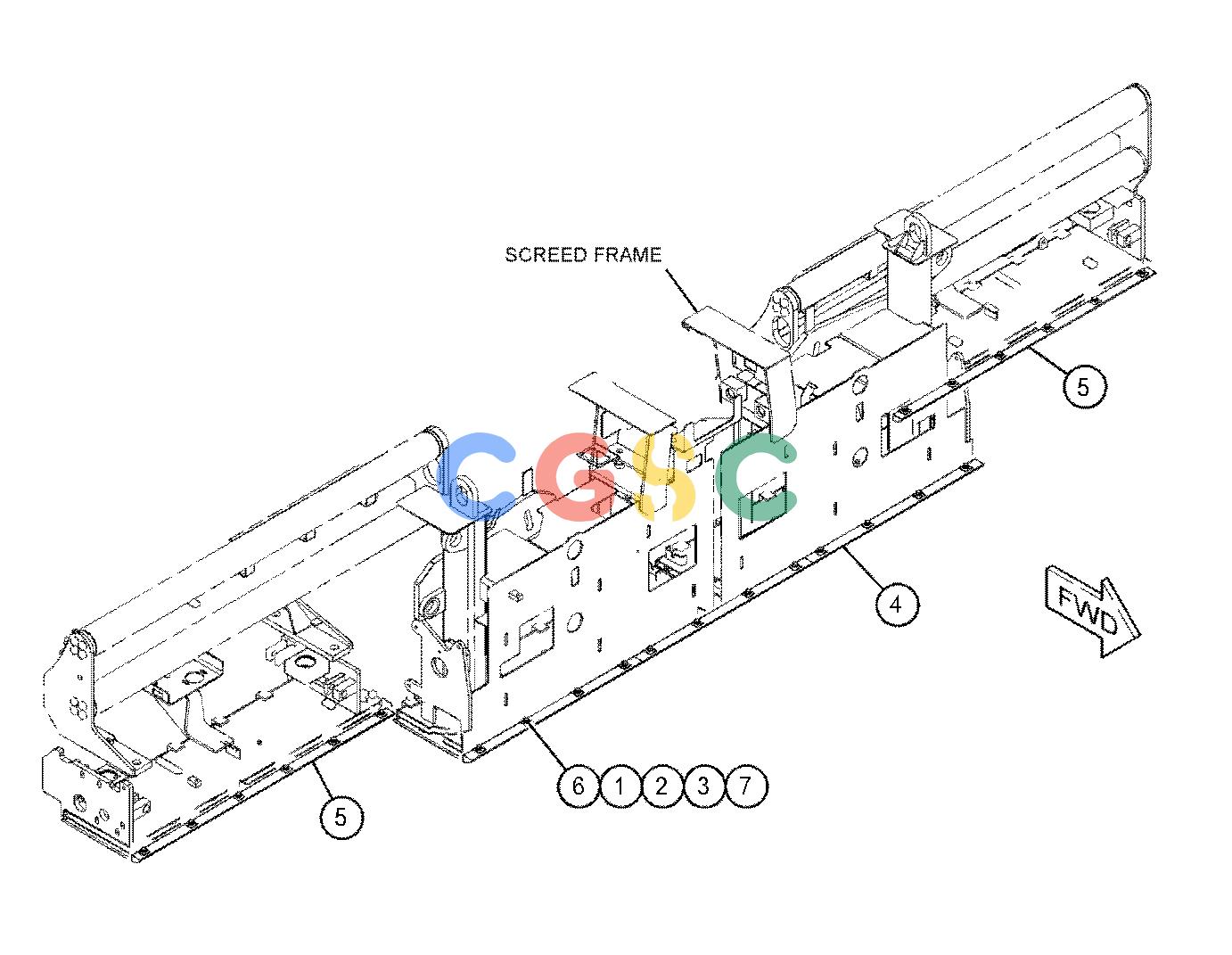

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 8I-0888B | [24] | SHIM(0.01-IN THK) | |
| 2. | 8I-0889B | [24] | SHIM(0.02-IN THK) | |
| 3. | 8I-0890B | [48] | SHIM(0.064-IN THK) | |
| 4. | 438-1091 | [3] | BAR-NOSE(MAIN) | |
| 5. | 446-1532 | [2] | BAR-NOSE(EXTEND) | |
| 6. | 8T-4192M | [24] | BOLT(M12X1.75X25-MM) | |
| 7. | 8T-7971 | [24] | WASHER-HARD(13.5X25.5X5-MM THK) | |
| B | USE AS REQUIRED | |||
| M | METRIC PART | |||
