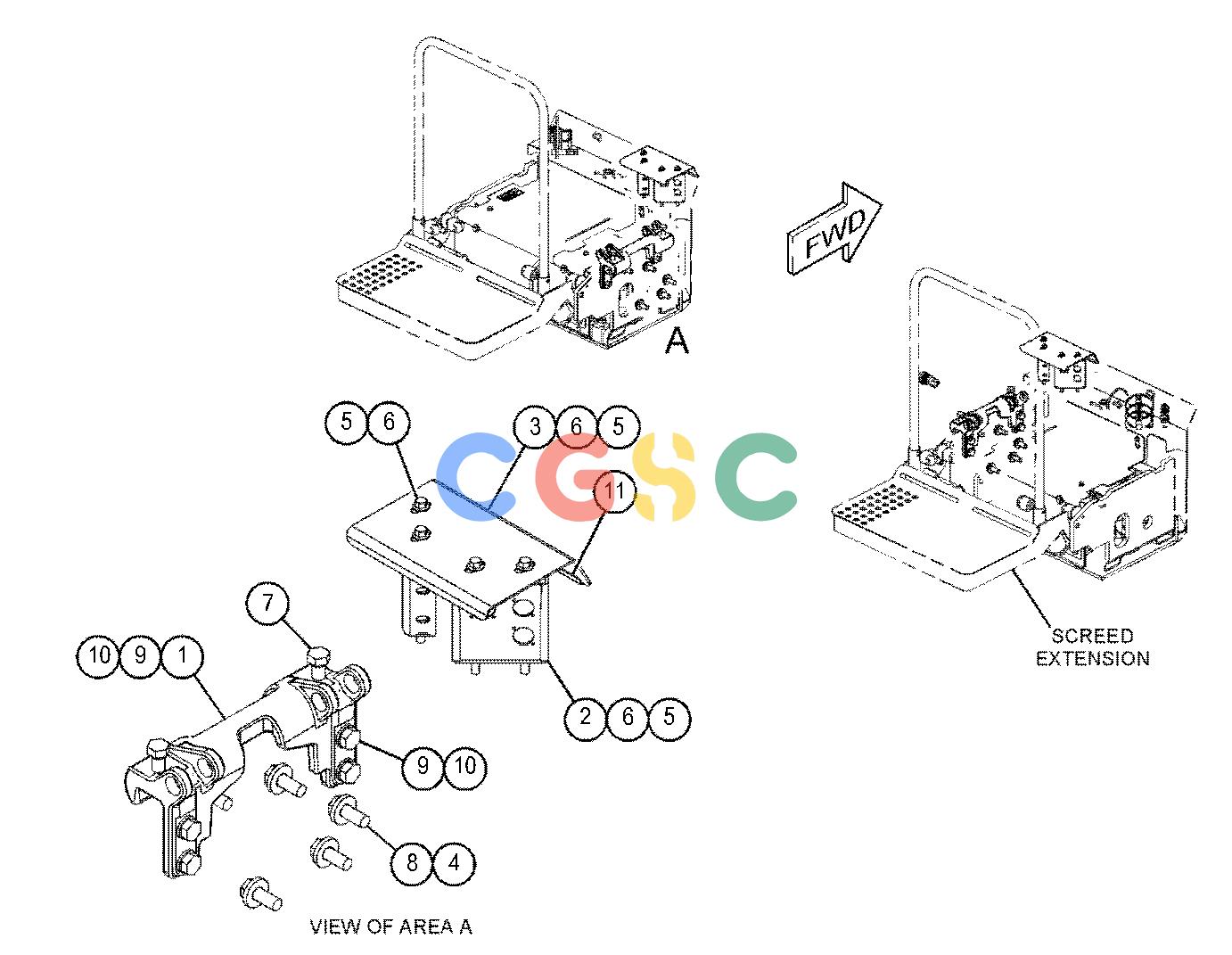

卡特零件查询（AP-1055F） 464-2744: MTG GP-HYD LINES & WRG HARNESS
广数供应链运营团队, 16 02月, 2025，浏览：
943 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 393-0646 | [2] | HOOK | |
| 2. | 456-4493 | [4] | BRACKET AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 3. | 464-7551 | [2] | COVER | |
| 4. | 3E-9411 | [10] | WASHER-HARD(17.5X38X6-MM THK) | |
| 5. | 7X-7729 | [16] | WASHER(11X25X3-MM THK) | |
| 6. | 8T-4137M | [16] | BOLT(M10X1.5X20-MM) | |
| 7. | 8T-4140M | [4] | BOLT(M16X2X60-MM) | |
| 8. | 8T-4193M | [10] | BOLT(M16X2X50-MM) | |
| 9. | 8T-4779M | [8] | BOLT(M16X2X35-MM) | |
| 10. | 9X-8257 | [8] | WASHER(17.5X30X3.5-MM THK) | |
| 11. | 7X-7877E | | STRIP-EDGE(21-CM EACH) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
