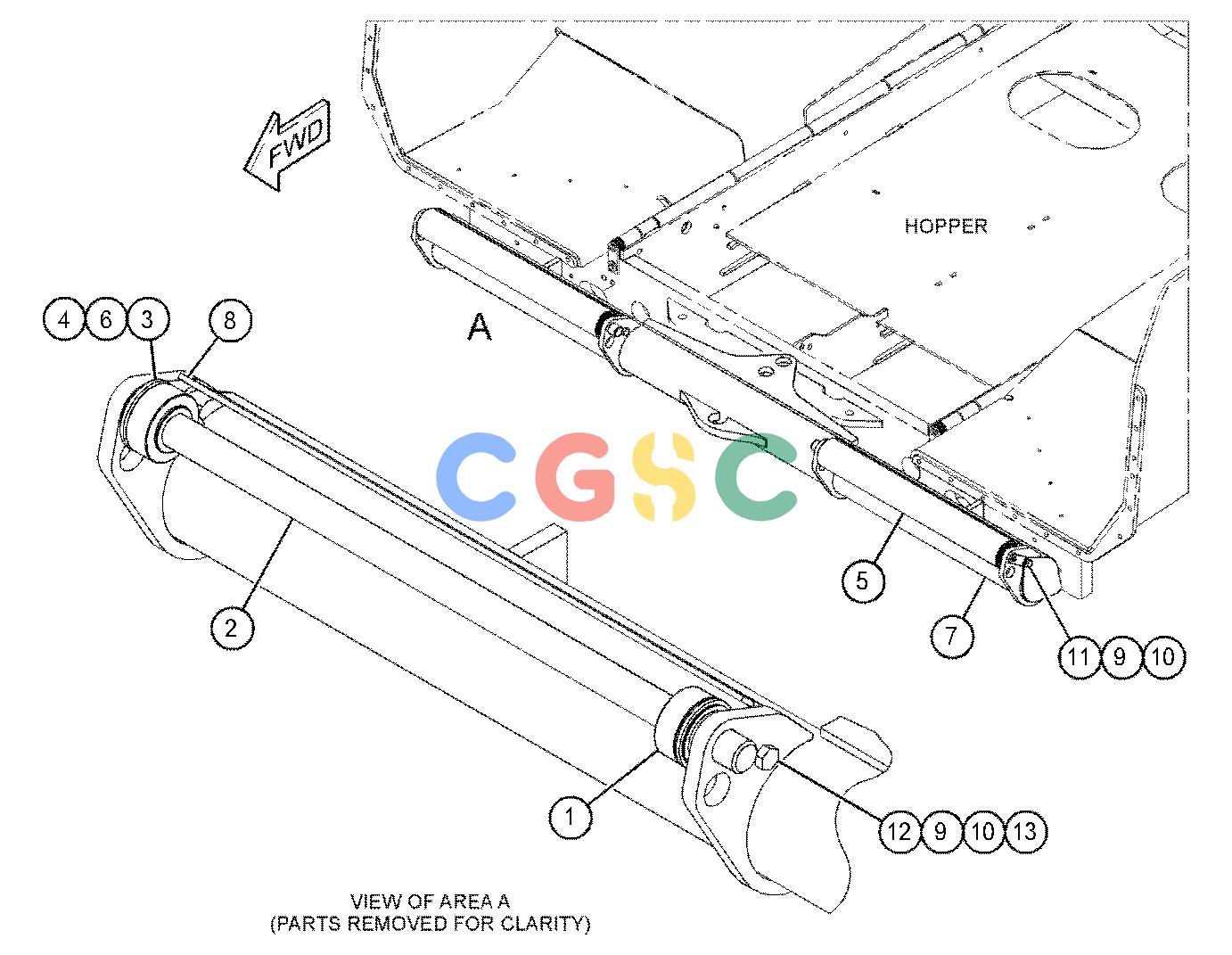

卡特零件查询（AP-1055F） 417-8972: ROLLER GP-PUSH
广数供应链运营团队, 16 02月, 2025，浏览：
723 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6I-9487 | [4] | BALL BEARING | |
| 2. | 8I-0566 | [2] | SHAFT AS-ROLLER | |
| 3. | 8I-0625 | [4] | WASHER(38.9X81X4.8-MM THK) | |
| 4. | 8I-0626 | [4] | WASHER(1.53X2.38X.25-IN THK) | |
| 5. | 8I-0627 | [2] | ROLLER | |
| 6. | 092-2555 | [8] | WASHER(39X72X1.5-MM THK) | |
| 7. | 479-7608 | [1] | ROLLER AS-PUSH | |
| 8. | 418-9634 | [2] | PLATE | |
| 9. | 8T-4122 | [4] | WASHER-HARD(17X32X3.5-MM THK) | |
| 10. | 8T-4132M | [4] | NUT(M16X2-THD) | |
| 11. | 8T-4140M | [2] | BOLT(M16X2X60-MM) | |
| 12. | 8T-4193M | [2] | BOLT(M16X2X50-MM) | |
| 13. | 369-8284B | [4] | WASHER-HARD(17.5X28X1.6-MM THK) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
