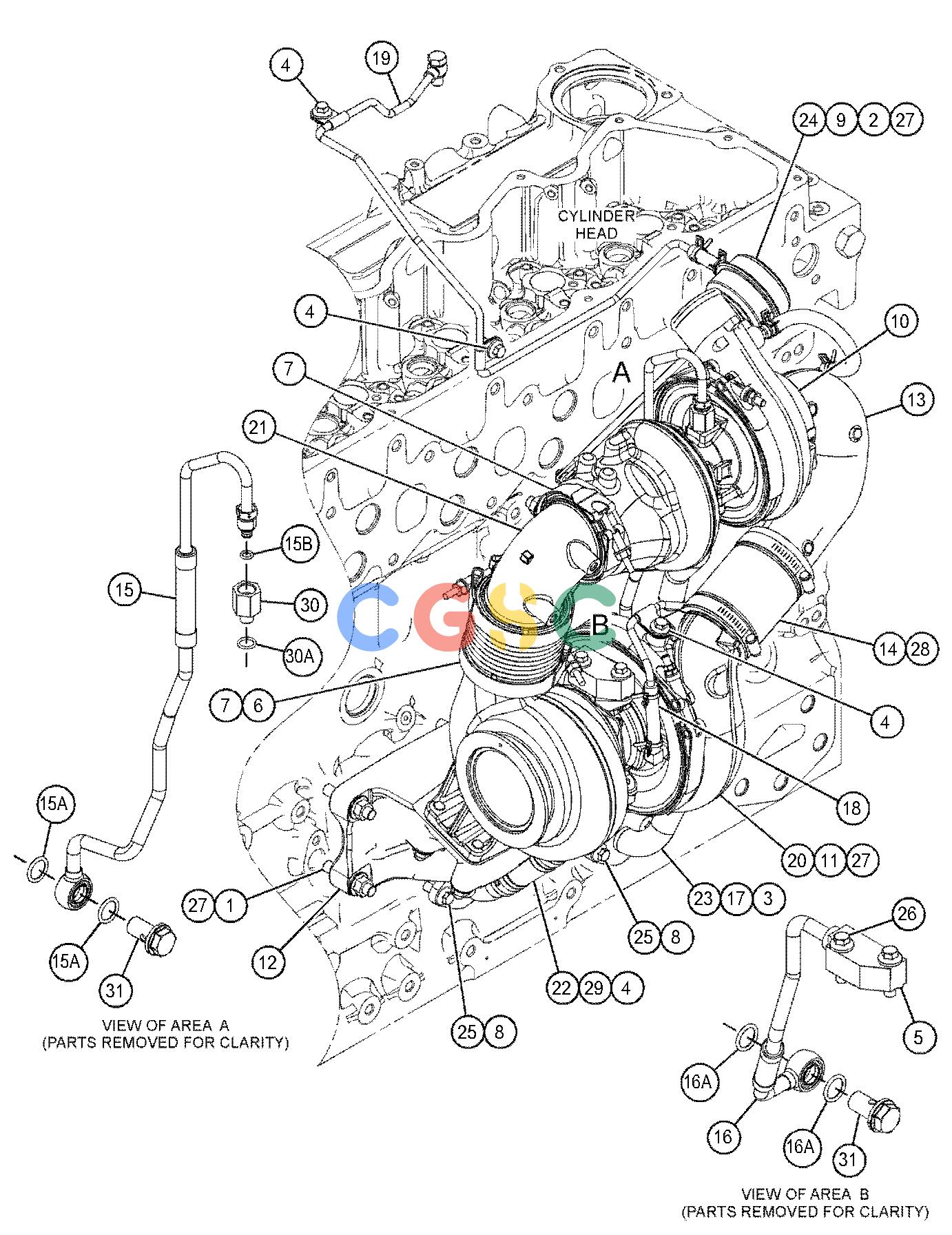

卡特零件查询（AP-1055F） 375-3165: TURBOCHARGER GP
广数供应链运营团队, 16 02月, 2025，浏览：
824 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 101-5115M | [4] | STUD(M10X1.5X40-MM) | |
| 2. | 103-1912M | [4] | STUD(M10X1.5X30-MM) | |
| 3. | 106-8916M | [2] | BOLT(M6X16-MM) | |
| 4. | 124-3815M | [6] | BOLT(M8X1.25X16-MM) | |
| 5. | 197-8418 | [1] | GASKET | |
| 6. | 223-5664 | [1] | BELLOWS | |
| 7. | 241-2634 | [3] | CLAMP-V BAND | |
| 8. | 278-0017 | [2] | GASKET | |
| 9. | 329-3723 | [1] | GASKET | |
| 10. | 343-5910 | [1] | CLAMP-V BAND | |
| 11. | 348-4636 | [4] | STUD | |
| 12. | 350-8541 | [1] | BRACKET | |
| 13. | 356-2122 | [1] | DUCT(COMPRESSOR) | |
| 14. | 356-5345 | [1] | HOSE | |
| 15. | 450-8002 | [1] | LINE AS | |
| 15A. | 3P-0647 | [2] | SEAL-O-RING | |
| 15B. | 9N-1756 | [1] | SEAL-O-RING | |
| 16. | 450-8003 | [1] | LINES GP-TURBOCHARGER OIL | |
| 16A. | 3P-0647 | [2] | SEAL-O-RING | |
| 17. | 357-0617 | [1] | GASKET | |
| 18. | 365-9909Y | [1] | LINES GP-TURBOCHARGER AIR | |
| 19. | 374-0185Y | [1] | LINES GP-TURBOCHARGER | |
| 20. | 387-5265 | [1] | TURBOCHARGER | |
| 21. | 387-5266 | [1] | DUCT | |
| 22. | 432-2374 | [1] | LINE AS | |
| 23. | 432-2376 | [1] | LINE AS | |
| 24. | 443-0326JP | [1] | TURBOCHARGER | |
| | 487-8468 | [1] | RING | |
| 25. | 6I-0217M | [4] | BOLT(M8X1.25X20-MM) | |
| 26. | 6I-0254M | [2] | BOLT(M8X1.25X30-MM) | |
| 27. | 6I-0563M | [12] | NUT(M10X1.5-THD) | |
| 28. | 317-9229 | [2] | CLAMP-HOSE | |
| 29. | 197-8419 | [1] | GASKET(TURBOCHARGER) | |
| 30. | 450-8004 | [1] | ADAPTER AS | |
| 30A. | 033-5879 | [1] | SEAL-O-RING | |
| 31. | 451-0548 | [2] | BOLT | |
| | | | |
| | 520-9956AFP | [1] | ACTUATOR AS | |
| | 440-2081AFP | [2] | NUT | |
| | 487-8468AFP | [2] | RING | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 526-7680AJ | [1] | KIT-TURBOCHARGER | |
| | | | (INCLUDES CAP, CLAMP, & TURBO AS) |
| | A | | NOT PART OF THIS GROUP |
| | F | | NOT SHOWN |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | P | | PARTS MARKED P SERVICE PARTS MARKED P |
| | Y | | SEPARATE ILLUSTRATION |
