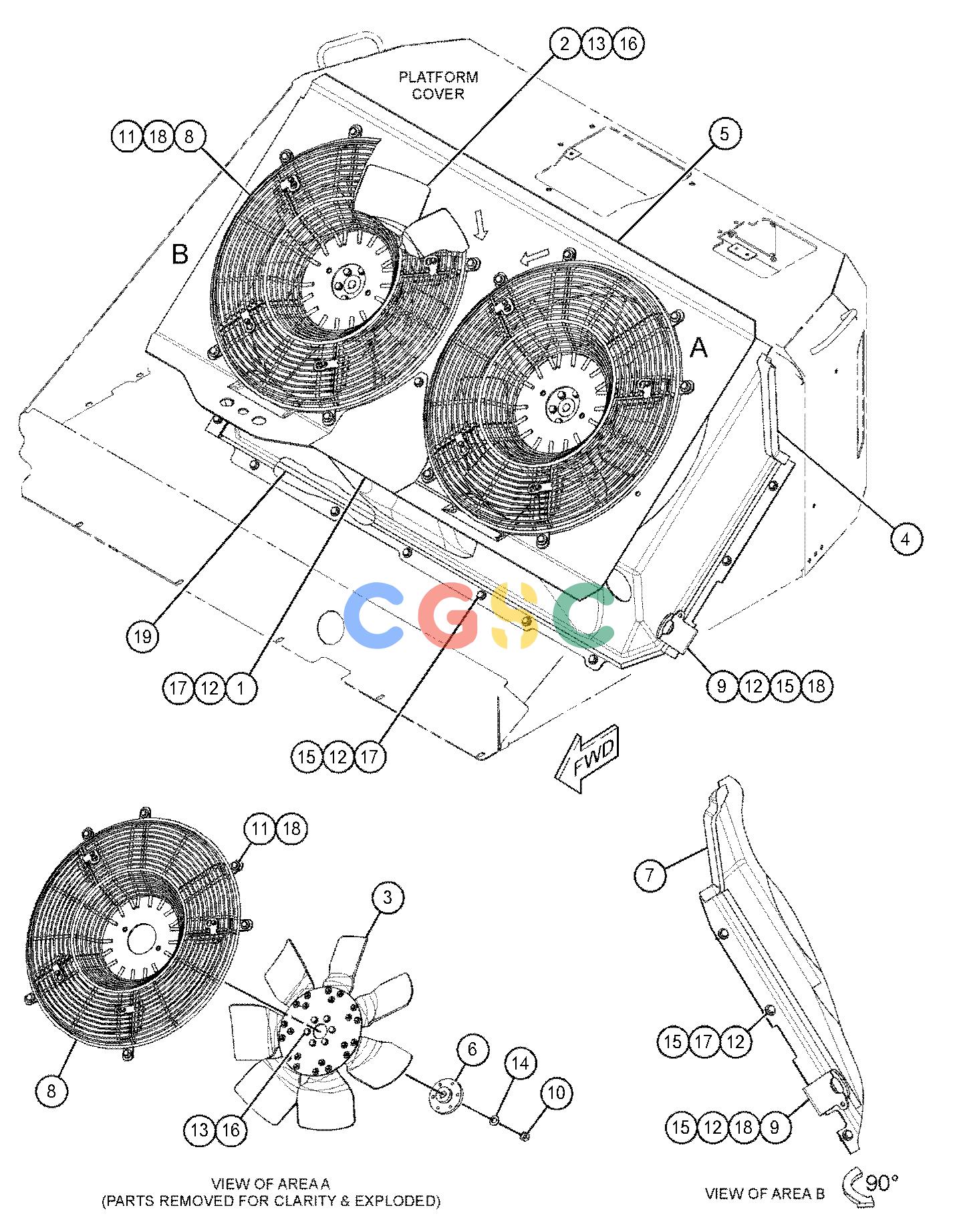

卡特零件查询（AP-1055F） 392-9069: FAN GP-SUCTION
广数供应链运营团队, 16 02月, 2025，浏览：
469 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 343-4266 | [1] | COVER | |
| 2. | 343-4383 | [1] | FAN AS-SUCTION(7-BLADE) | |
| 3. | 343-4384 | [1] | FAN AS-SUCTION(7-BLADE) | |
| 4. | 352-8046 | [1] | INSULATION | |
| 5. | 392-7982 | [1] | SHROUD AS-FAN | |
| 6. | 419-7308 | [2] | ADAPTER-FAN | |
| 7. | 419-7309 | [1] | INSULATION | |
| 8. | 422-8203Y | [2] | GUARD GP-FAN | |
| 9. | 432-5251 | [2] | BRACKET | |
| 10. | 6V-8181 | [2] | NUT-FULL(5/8-18-THD) | |
| 11. | 7X-0589 | [12] | WASHER-HARD(12X28.5X5-MM THK) | |
| 12. | 7X-7729 | [39] | WASHER(11X25X3-MM THK) | |
| 13. | 8T-4121 | [12] | WASHER-HARD(11X21X2.5-MM THK) | |
| 14. | 8T-4122 | [2] | WASHER-HARD(17X32X3.5-MM THK) | |
| 15. | 8T-4133M | [19] | NUT(M10X1.5-THD) | |
| 16. | 8T-4136M | [12] | BOLT(M10X1.5X25-MM) | |
| 17. | 8T-4195M | [16] | BOLT(M10X1.5X30-MM) | |
| 18. | 8T-4196M | [16] | BOLT(M10X1.5X35-MM) | |
| 19. | 5P-5930D | | SEAL(3-M) | |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
