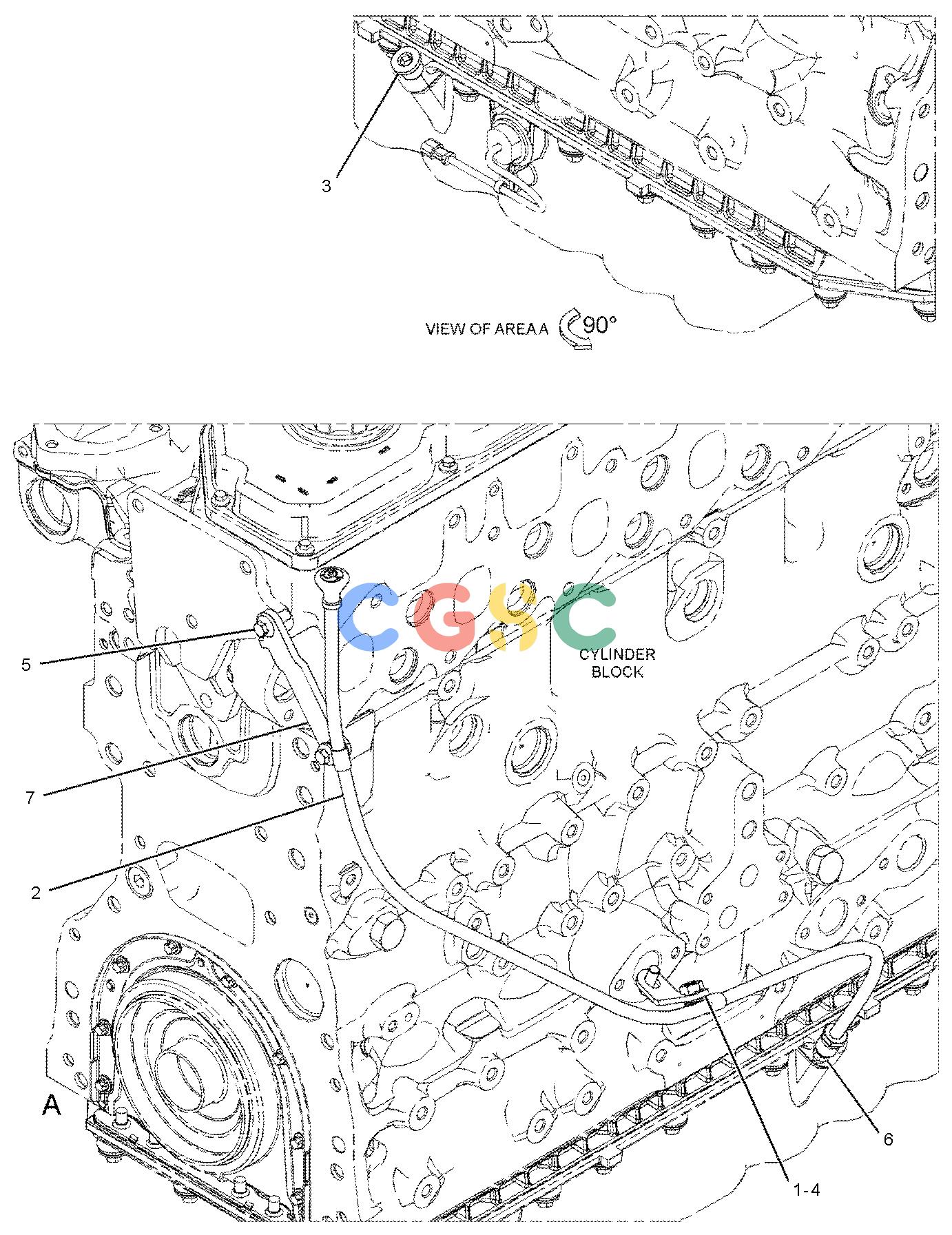

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 350-2963 | [1] | SUPPORT AS | |
| 2. | 435-1852 | [1] | GAUGE GP-OIL LEVEL (DIPSTICK)(ENGINE) | |
| [1] | GAUGE AS-OIL LEVEL (DIPSTICK) | |||
| 275-9891 | [2] | SEAL-O-RING | ||
| 437-1719 | [1] | TUBE AS | ||
| 123-2933 | [2] | CLIP | ||
| 228-7089 | [1] | SEAL-O-RING | ||
| 6I-4079 | [1] | NUT | ||
| 3. | 354-8322 | [1] | PLUG | |
| 4. | 124-3815M | [3] | BOLT(M8X1.25X16-MM) | |
| 5. | 6I-0217M | [1] | BOLT(M8X1.25X20-MM) | |
| 6. | 6I-1497 | [1] | SEAL | |
| 7. | 392-8627 | [1] | BRACKET AS | |
| M | METRIC PART | |||
