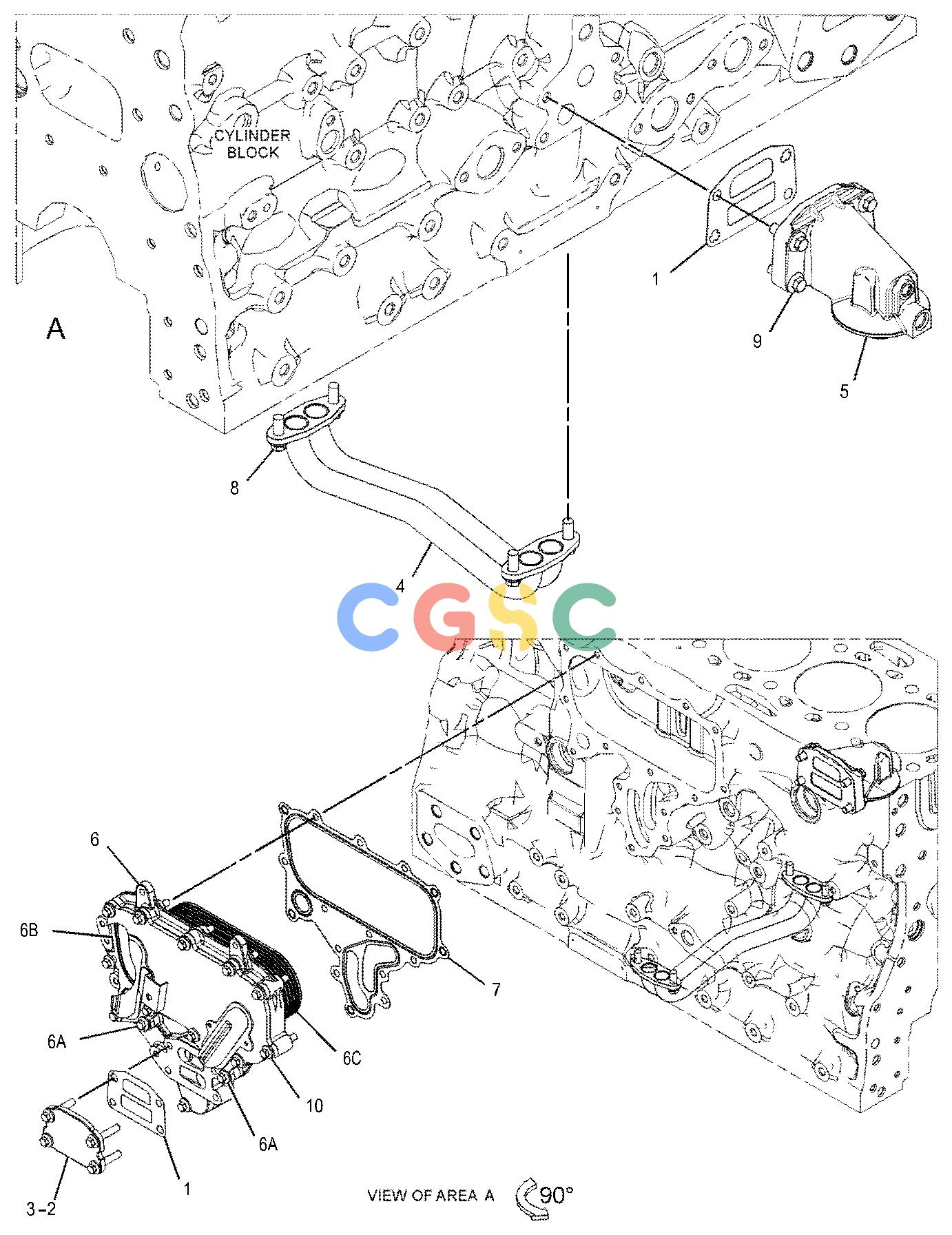

卡特零件查询（AP-1055F） 321-8234: COOLER GP-ENGINE OIL
广数供应链运营团队, 16 02月, 2025，浏览：
326 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 225-7944 | [2] | GASKET | |
| 2. | 232-3751 | [1] | PLATE | |
| 3. | 6I-1090M | [4] | BOLT(M8X1.25X40-MM) | |
| 4. | 281-7280 | [1] | TUBE-OIL | |
| 5. | 283-4559 | [1] | HEAD AS-OIL FILTER | |
| 6. | 444-9675 | [1] | COOLER AS-OIL | |
| 6A. | 6I-0260M | [2] | BOLT(M8X1.25X25-MM) | |
| 6B. | 319-9366 | [1] | GASKET | |
| 6C. | 444-9561 | [1] | COOLER AS-OIL | |
| 7. | 350-1028 | [1] | GASKET | |
| 8. | 6I-0217M | [4] | BOLT(M8X1.25X20-MM) | |
| 9. | 6I-0260M | [5] | BOLT(M8X1.25X25-MM) | |
| 10. | 6I-0456M | [11] | BOLT(M8X1.25X45-MM) | |
| | M | | METRIC PART |
