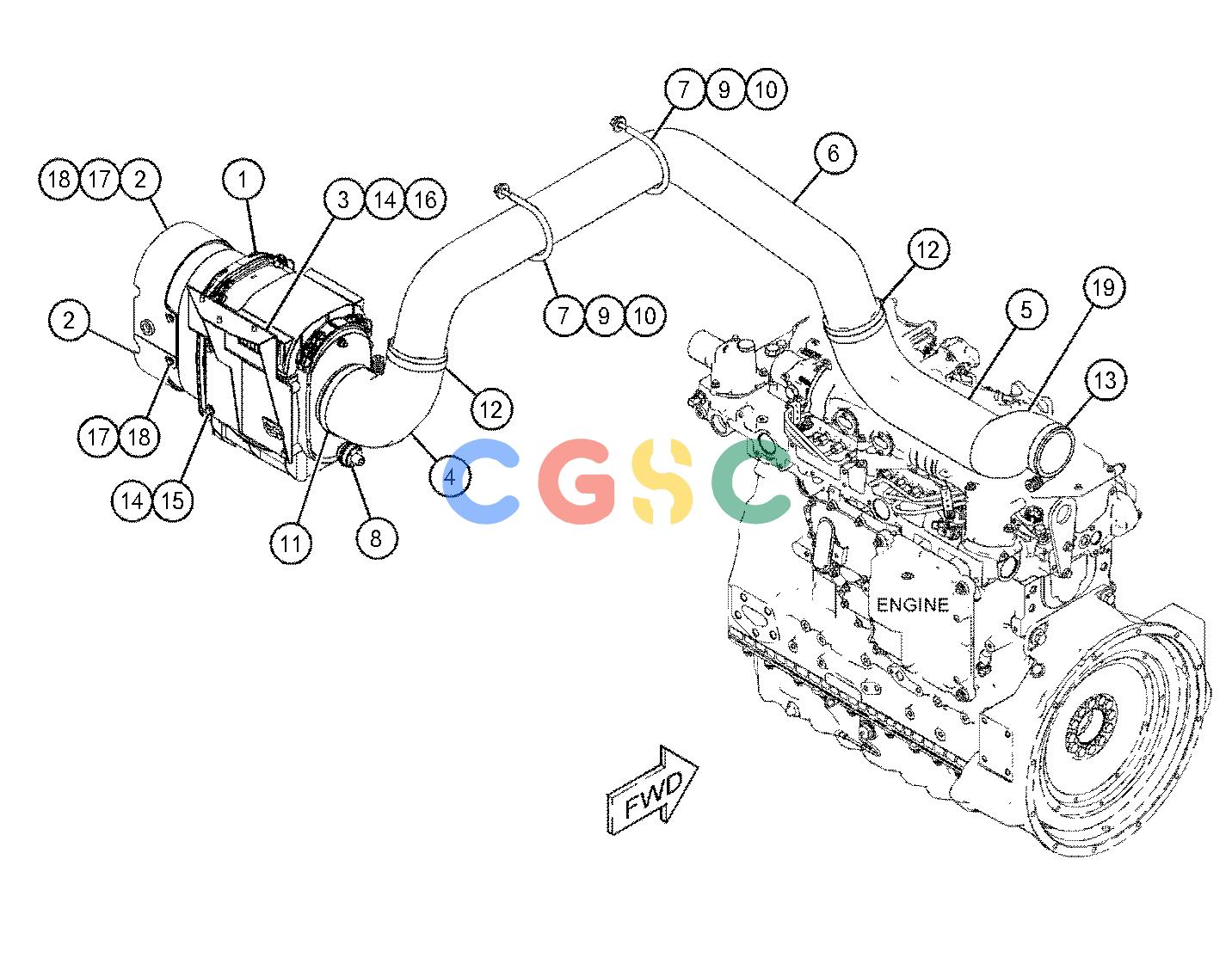

卡特零件查询（AP-1055F） 391-2006: AIR CLEANER GP
广数供应链运营团队, 16 02月, 2025，浏览：
753 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 346-6691Y | [1] | AIR CLEANER GP | |
| 2. | 349-5767 | [2] | DUCT AS | |
| 3. | 416-5377 | [1] | BRACKET AS | |
| | 7T-1099 | [1] | LINK | |
| 4. | 419-7314 | [1] | HOSE-AIR INLET | |
| 5. | 415-7966 | [1] | HOSE AS | |
| 6. | 415-7967 | [1] | TUBE | |
| 7. | 147-7142 | [2] | U-BOLT | |
| 8. | 295-2610 | [1] | INDICATOR AS(AIR FILTER) | |
| 9. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 10. | 8T-4244M | [4] | NUT(M12X1.75-THD) | |
| 11. | 8T-4987 | [1] | CLAMP-HOSE | |
| 12. | 8T-4986 | [2] | CLAMP-HOSE | |
| 13. | 9X-2201 | [1] | CLAMP-HOSE | |
| 14. | 5P-4116 | [7] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 15. | 8T-4200M | [4] | BOLT(M8X1.25X16-MM) | |
| 16. | 7X-2536M | [3] | BOLT(M8X1.25X14-MM) | |
| 17. | 8T-4205 | [4] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 18. | 8T-4171M | [4] | BOLT(M6X1X12-MM) | |
| 19. | 454-0119 | [1] | INSULATION | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
