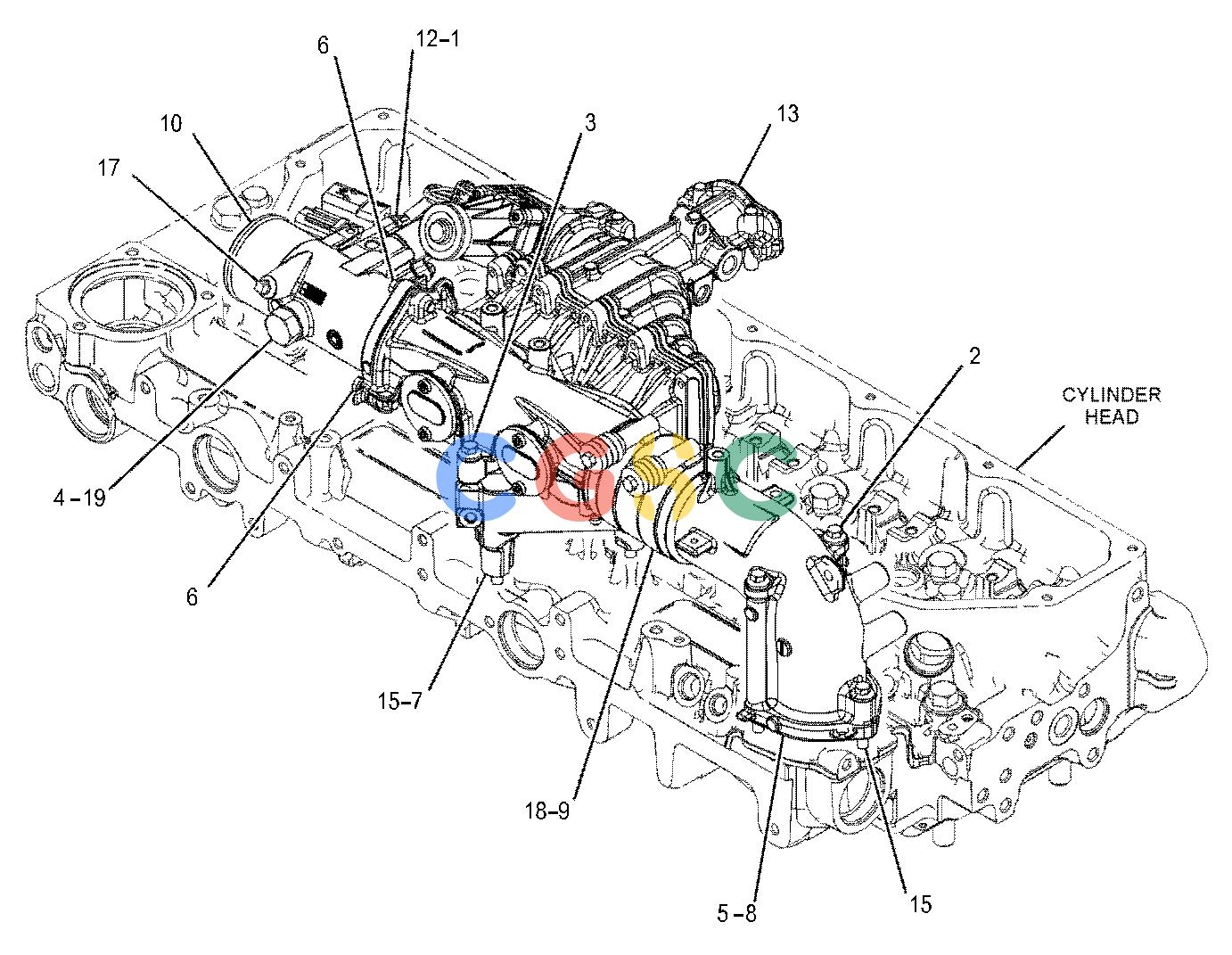

卡特零件查询（AP-1055F） 378-3539: ELBOW GP-AIR INLET
广数供应链运营团队, 16 02月, 2025，浏览：
212 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6I-0917M | [2] | BOLT(M6X1X25-MM) | |
| 2. | 100-8451M | [2] | BOLT(M8X1.25X130-MM) | |
| 3. | 101-3895M | [3] | BOLT(M8X1.25X35-MM) | |
| 4. | 199-9751 | [1] | SEAL-O-RING | |
| 5. | 319-7840 | [1] | GASKET(INLET ELBOW) | |
| 6. | 6I-0254CM | [3] | BOLT(M8X1.25X30-MM) | |
| 7. | 349-6804 | [1] | BRACKET | |
| 8. | 349-6805 | [1] | PIPE-INLET | |
| 9. | 354-5632 | [1] | HOSE | |
| 10. | 455-7656C | [1] | CONNECTION | |
| 12. | 369-1658 | [1] | SOLENOID | |
| 13. | 377-2854Y | [1] | MANIFOLD & VALVE GP | |
| 15. | 6I-0456M | [4] | BOLT(M8X1.25X45-MM) | |
| 17. | 035-8063 | [1] | PLUG | |
| 18. | 144-0367 | [2] | CLAMP-HOSE | |
| 19. | 232-1322 | [1] | PLUG | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
