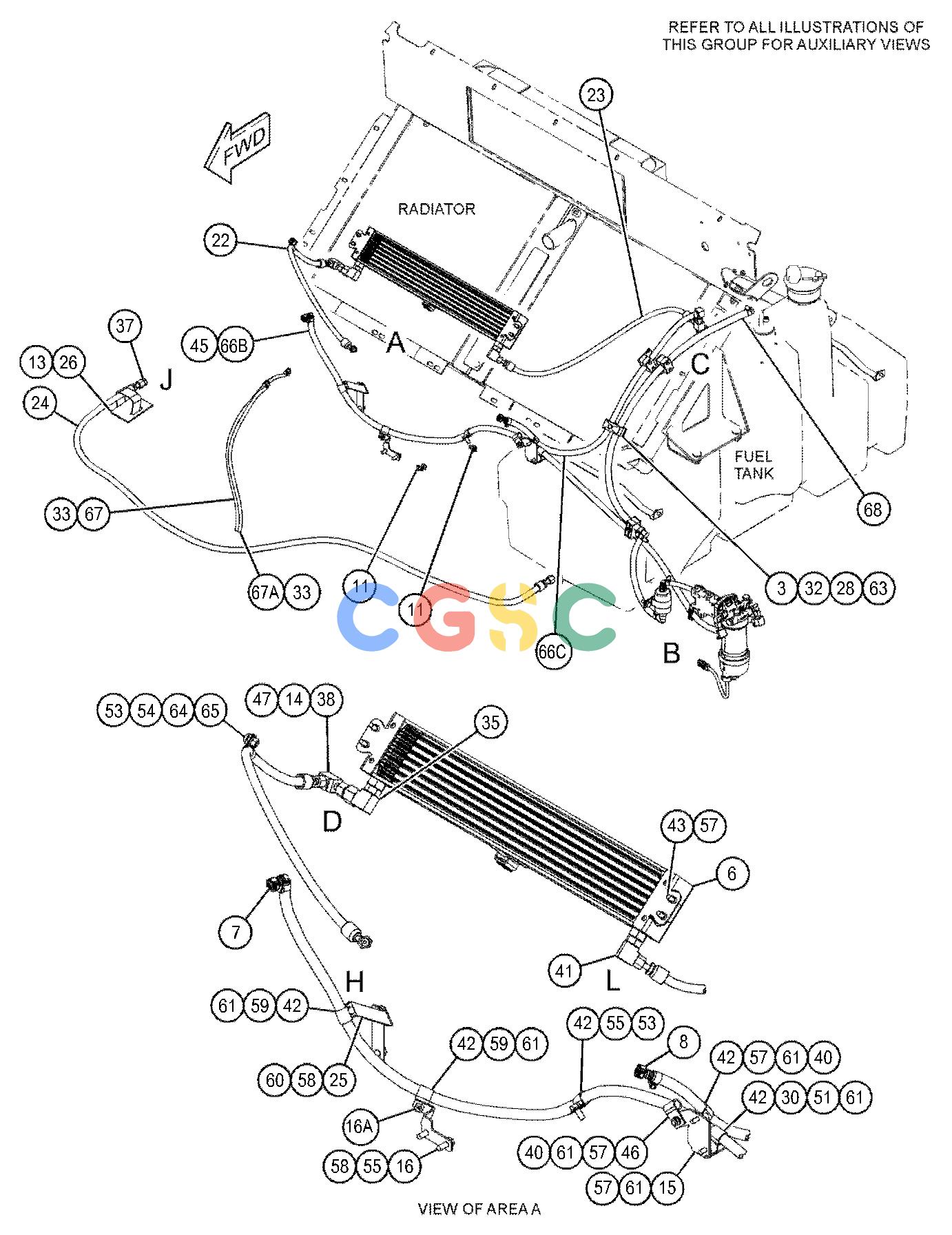

卡特零件查询（AP-1055F） 394-1231: LINES GP-FUEL
广数供应链运营团队, 16 02月, 2025，浏览：
179 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7K-1181 | [1] | STRAP-CABLE | |
| 2. | 7V-5628 | [2] | PLATE(TOP) | |
| 3. | 102-8705 | [2] | PLATE(TOP) | |
| 4. | 185-1505 | [1] | ELBOW | |
| 5. | 239-3291 | [2] | CLAMP-HALF | |
| 6. | 334-3325 | [1] | CORE AS-FUEL COOLER | |
| 7. | 354-0817 | [1] | CONNECTOR-HOSE | |
| 8. | 354-0842 | [1] | CONNECTOR | |
| 9. | 355-0632 | [1] | CONNECTOR-SPECIAL | |
| 10. | 347-8645E | | HOSE(12.7-CM) | |
| 11. | 359-9198 | [2] | CLIP-PIPE | |
| 12. | 360-5510Y | [1] | FILTER GP-WATER SEP & FUEL | |
| 13. | 364-4568 | [1] | STRAP | |
| 14. | 369-6885 | [1] | REDUCER AS | |
| 14A. | 6V-8939 | [1] | REDUCER-O-RING | |
| 14B. | 228-7090 | [1] | SEAL-O-RING | |
| 15. | 416-8289 | [1] | BRACKET | |
| 16. | 417-0116 | [1] | BRACKET AS | |
| 16A. | 8T-3612M | [1] | NUT-WELD(M8X1.25-THD) | |
| 17. | 419-7311 | [1] | BRACKET AS | |
| 17A. | 102-8704 | [1] | PLATE | |
| 17B. | 178-8505 | [2] | PLATE-WELD | |
| 18. | 421-6172 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| 18A. | 228-7089 | [1] | SEAL-O-RING | |
| 18B. | 228-7102 | [1] | SEAL-O-RING | |
| 18C. | 421-6167 | [1] | ADAPTER-ELBOW | |
| 19. | 421-9625 | [1] | FILTER-FUEL(IN-LINE) | |
| 20. | 425-2633 | [1] | CONNECTOR-SPECIAL | |
| 21. | 426-4125 | [1] | ADAPTER AS | |
| 21A. | 228-7102 | [1] | SEAL-O-RING | |
| 21B. | 426-4124 | [1] | ADAPTER | |
| 22. | 430-8279 | [1] | HOSE AS | |
| 23. | 430-8280 | [1] | HOSE AS | |
| 24. | 430-8377 | [1] | HOSE AS | |
| 25. | 432-1653 | [1] | BRACKET AS | |
| 25A. | 8T-3612M | [1] | NUT-WELD(M8X1.25-THD) | |
| 26. | 445-2694 | [1] | MAT-RUBBER | |
| 27. | 446-5409 | [1] | PUMP AS-FUEL TRANSFER(24-VOLT) | |
| 28. | 102-8706 | [1] | PLATE AS | |
| 29. | 124-6257 | [2] | CLAMP-HOSE | |
| 30. | 128-8678 | [1] | SPACER(10.5X25X15-MM THK) | |
| 31. | 132-5789 | [1] | CLIP(LADDER) | |
| 32. | 143-9157 | [4] | CLAMP-DOUBLE | |
| 33. | 1P-4278 | [2] | CLAMP-HOSE | |
| 34. | 228-7089 | [2] | SEAL-O-RING | |
| 35. | 281-5975 | [1] | ELBOW AS | |
| 35A. | 6V-8626 | [1] | ELBOW | |
| 35B. | 228-7091 | [1] | SEAL-O-RING | |
| 35C. | 238-5081 | [1] | SEAL-O-RING | |
| 36. | 287-7257 | [3] | ELBOW | |
| 37. | 319-6238 | [1] | PLUG AS | |
| 37A. | 6V-9509 | [1] | PLUG(13/16-16-THD) | |
| 37B. | 228-7090 | [1] | SEAL-O-RING | |
| 38. | 332-8592 | [1] | ELBOW AS | |
| 38A. | 152-3411 | [1] | ELBOW | |
| 38B. | 228-7089 | [1] | SEAL-O-RING | |
| 39. | 335-3971 | [1] | TEE AS | |
| 39A. | 6V-9836 | [1] | TEE-SWIVEL | |
| 39B. | 228-7089 | [2] | SEAL-O-RING | |
| 40. | 344-5674M | [2] | NUT(M8X1.25-THD) | |
| 41. | 352-6509 | [1] | ELBOW AS | |
| 41A. | 9X-2134 | [1] | ELBOW | |
| 41B. | 228-7089 | [1] | SEAL-O-RING | |
| 41C. | 238-5081 | [1] | SEAL-O-RING | |
| 42. | 3S-8664 | [5] | CLIP(LOOP) | |
| 43. | 5P-4116 | [10] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 44. | 5P-4325 | [1] | CLIP(LOOP) | |
| 45. | 5P-4961 | [10] | CLAMP-HOSE | |
| 46. | 6D-3479 | [1] | CLIP(LOOP) | |
| 47. | 9X-6581 | [1] | NUT-O-RING SEAL(1-14-THD) | |
| 48. | 6V-9829 | [1] | CAP(ORFS) | |
| 49. | 7V-5626 | [2] | CLAMP | |
| 50. | 7X-0818M | [1] | BOLT(M8X1.25X45-MM) | |
| 51. | 7X-2537M | [1] | BOLT(M8X1.25X35-MM) | |
| 52. | 8C-8451M | [4] | BOLT(M6X1X40-MM) | |
| 53. | 8T-4121 | [5] | WASHER-HARD(11X21X2.5-MM THK) | |
| 54. | 344-5675M | [1] | NUT(M10X1.5-THD) | |
| 55. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 56. | 8T-4177M | [2] | BOLT(M8X1.25X90-MM) | |
| 57. | 8T-4189M | [8] | BOLT(M8X1.25X20-MM) | |
| 58. | 8T-4192M | [2] | BOLT(M12X1.75X25-MM) | |
| 59. | 8T-4200M | [2] | BOLT(M8X1.25X16-MM) | |
| 60. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 61. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| 62. | 8T-4908M | [3] | BOLT(M8X1.25X25-MM) | |
| 63. | 8T-6912M | [1] | BOLT(M8X1.25X50-MM) | |
| 64. | 9M-8406 | [1] | CLIP(LOOP) | |
| 65. | 9X-2041M | [1] | SCREW-TRUSS HEAD(M10X1.5X20-MM) | |
| 66. | 347-8646E | | HOSE(16.2-CM) | |
| 66A. | 347-8646E | | HOSE(33.8-CM) | |
| 66B. | 347-8646E | | HOSE(247-CM) | |
| 66C. | 347-8646E | | HOSE(101-CM) | |
| 67. | 8C-3681E | | HOSE(74.5-CM) | |
| 67A. | 8C-3681E | | HOSE(67-CM) | |
| 68. | 347-8647E | | HOSE(114-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
