| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

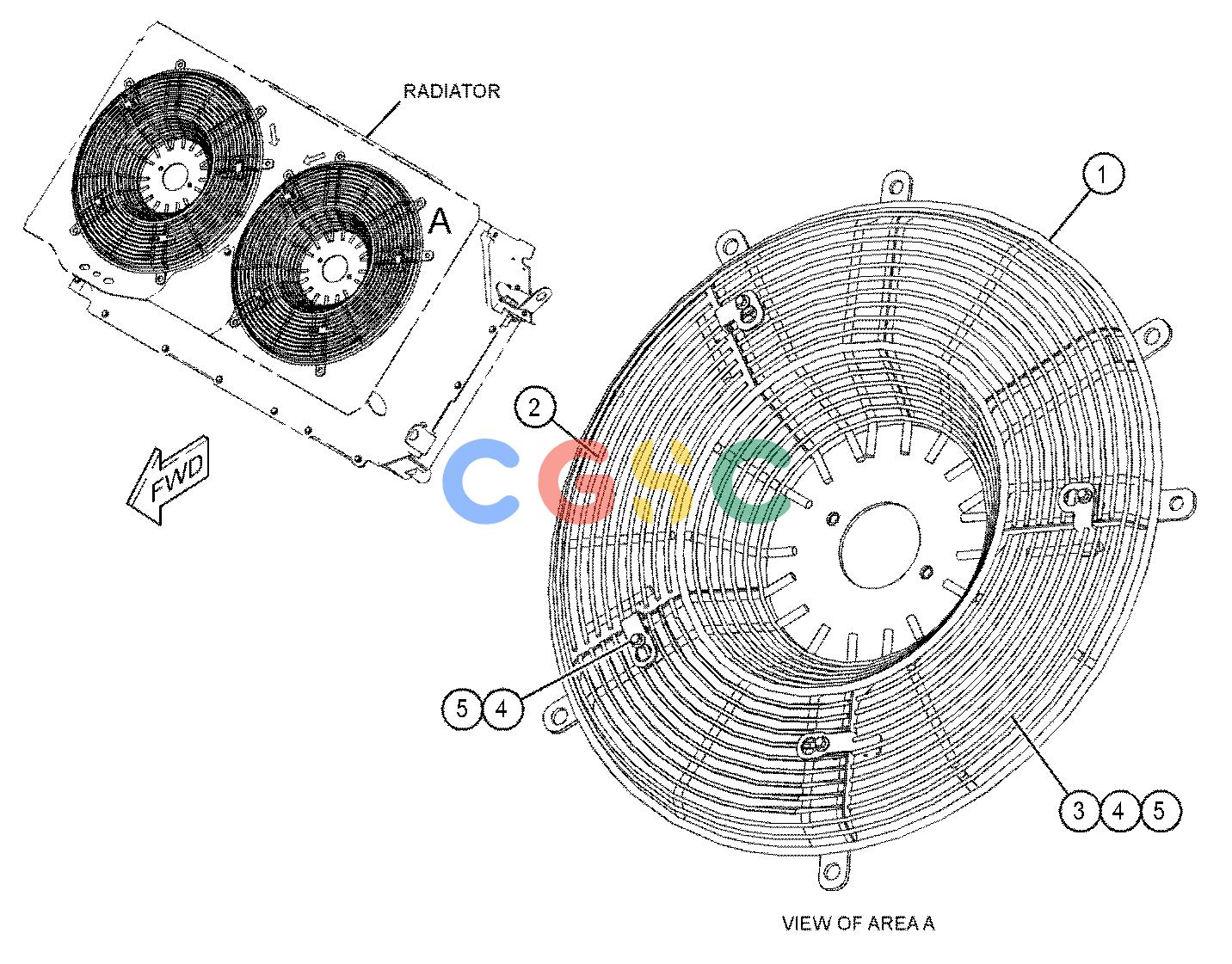

| 1. | 419-7305 | [1] | GUARD AS-FAN | |
| 8T-3597M | [2] | NUT-WELD(M12X1.75-THD) | ||
| 8T-3612M | [4] | NUT-WELD(M8X1.25-THD) | ||
| 2. | 419-7306 | [1] | GUARD AS-FAN | |
| 3. | 419-7307 | [1] | GUARD AS-FAN | |
| 4. | 355-6247M | [4] | BOLT-FLANGE HEAD(M8X1.25X35-MM) | |
| 5. | 6V-9189M | [4] | LOCKNUT(M8X1.25-THD) | |
| M | METRIC PART | |||
