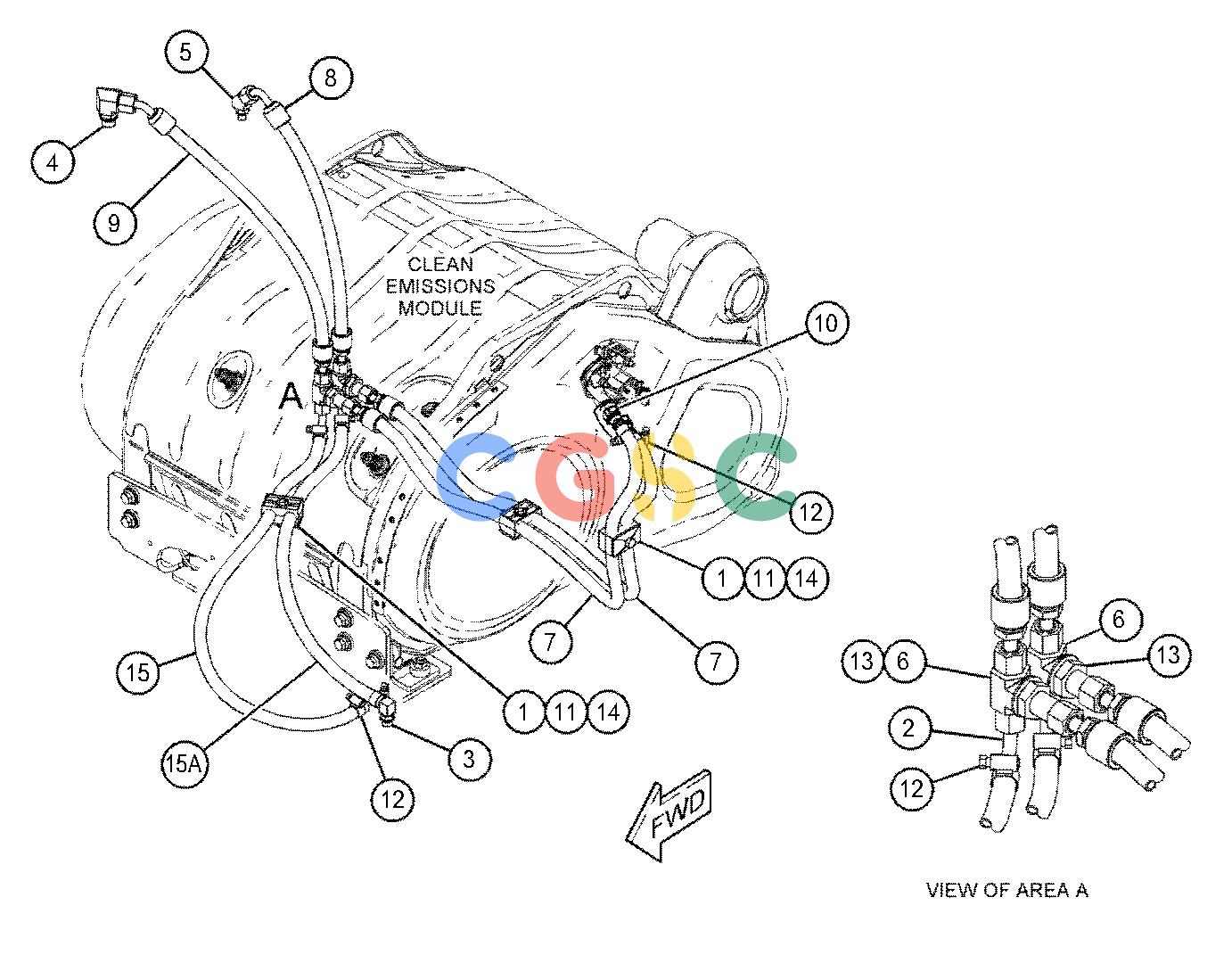

卡特零件查询（AP-1055F） 391-2007: LINES GP-COOLANT
广数供应链运营团队, 16 02月, 2025，浏览：
1009 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 138-0167 | [1] | GROMMET | |
| 2. | 164-5562 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 5P-1046 | [1] | CONNECTOR | |
| 3. | 269-6650 | [1] | ADAPTER | |
| 4. | 347-4435 | [1] | ELBOW AS | |
| | 6V-9027 | [1] | SEAL-O-RING | |
| | 347-4434 | [1] | ADAPTER-ELBOW | |
| 5. | 354-0839 | [2] | HOSE | |
| 6. | 364-4568 | [1] | STRAP | |
| 7. | 369-6883 | [1] | ADAPTER AS | |
| | 5P-4362 | [1] | CONNECTOR | |
| | 6V-5064 | [1] | SEAL-O-RING | |
| 8. | 370-7349 | [1] | PLATE AS | |
| 9. | 370-7829 | [1] | TANK GP-COOLANT | |
| | 345-1237 | [1] | CAP AS-COOLANT TANK | |
| 10. | 416-8287 | [1] | HOSE | |
| 11. | 418-8150 | [1] | TUBE AS | |
| 12. | 165-4934 | [1] | PLUG AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9508 | [1] | PLUG(11/16-16-THD) | |
| 13. | 177-2215 | [3] | STRAP-DUAL CLAMP | |
| 14. | 1M-4543 | [1] | GROMMET | |
| 15. | 2Y-5429 | [1] | GROMMET | |
| 16. | 4P-7429 | [2] | CLIP(LADDER) | |
| 17. | 5P-4961 | [4] | CLAMP-HOSE | |
| 18. | 7D-7233 | [3] | CLIP(LOOP) | |
| 19. | 7K-1181 | [2] | STRAP-CABLE | |
| 20. | 7X-7729 | [9] | WASHER(11X25X3-MM THK) | |
| 21. | 7X-7958 | [2] | CLAMP-HOSE | |
| 22. | 8D-1470 | [1] | GROMMET | |
| 23. | 8T-4121 | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 24. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 25. | 8T-4137M | [3] | BOLT(M10X1.5X20-MM) | |
| 26. | 8T-4195M | [7] | BOLT(M10X1.5X30-MM) | |
| 27. | 8T-4984 | [6] | CLAMP-HOSE | |
| 28. | 9X-2133E | | HOSE(115-CM) | |
| 29. | 8I-1362E | | HOSE(142-CM) | |
| 30. | 8C-3681E | | HOSE(149-CM) | |
| 31. | 6V-8523E | | HOSE(276-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
