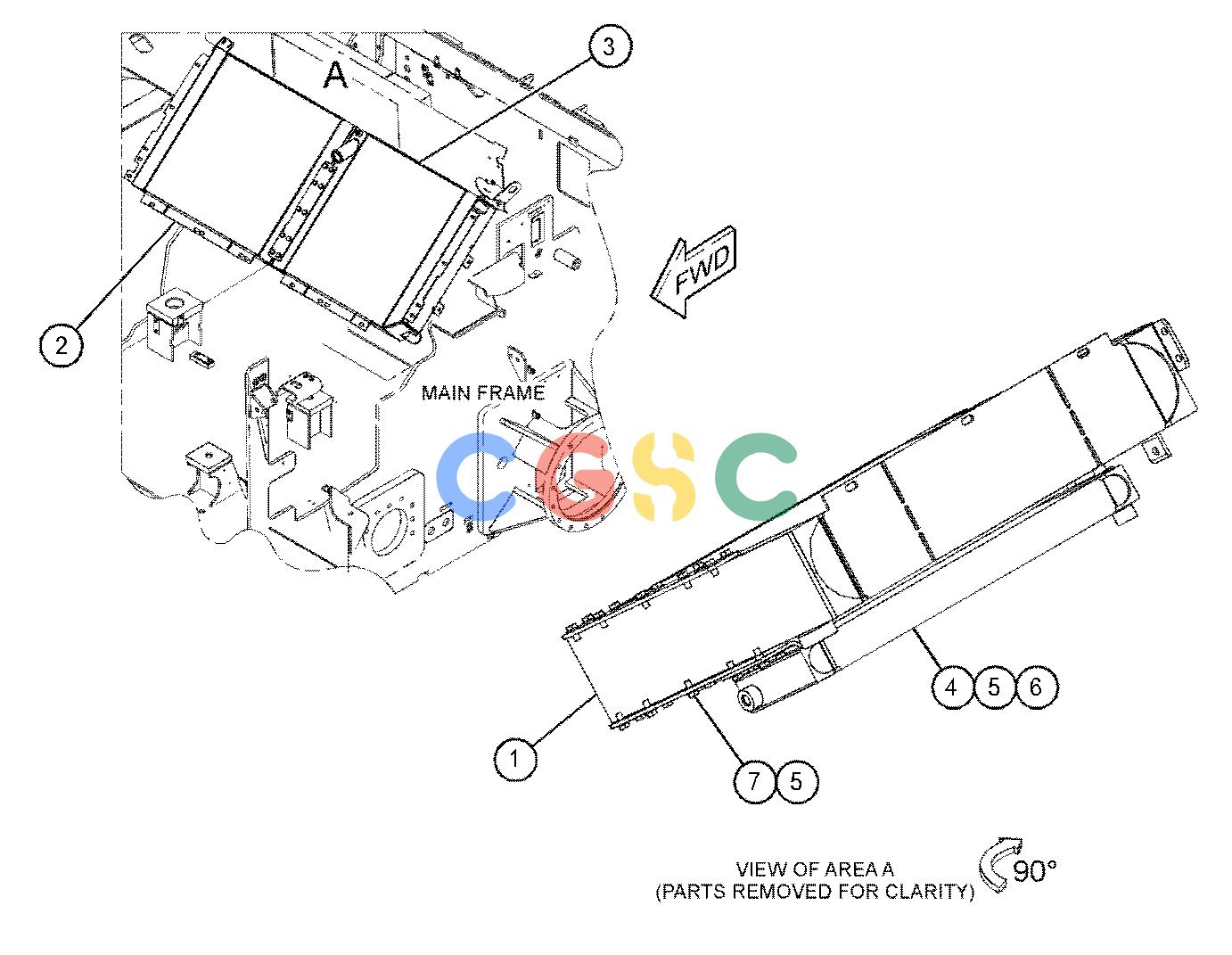

卡特零件查询（AP-1055F） 394-1238: RADIATOR & HYD OIL COOLER GP
广数供应链运营团队, 16 02月, 2025，浏览：
573 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 336-7728 | [1] | CORE AS-AFTERCOOLER | |
| 2. | 343-3326 | [1] | BRACKET AS | |
| 3. | 377-9603 | [1] | VALVE AS-FLUID SAMPLING(SCREEN) | |
| | 6V-9027 | [1] | SEAL-O-RING | |
| | 154-9023 | [1] | VALVE-SAMPLING | |
| 4. | 416-8291Y | [1] | RADIATOR & HYD OIL COOLER GP | |
| 5. | 416-8299 | [1] | PLATE AS | |
| | 7T-1099 | [2] | LINK | |
| | 8T-3490M | [6] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3612M | [3] | NUT-WELD(M8X1.25-THD) | |
| 6. | 425-1217 | [1] | BRACKET AS | |
| 7. | 156-4283 | [1] | CONNECTOR AS | |
| | 6K-6307 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| | 8T-7926 | [1] | CONNECTOR | |
| 8. | 157-0670 | [1] | CAP-DUST | |
| 9. | 8C-9020 | [1] | ELBOW AS | |
| | 6K-6307 | [1] | SEAL-O-RING | |
| | 315-9865 | [1] | ELBOW | |
| 10. | 5P-1076 | [28] | WASHER-HARD(13.5X30X4-MM THK) | |
| 11. | 7X-7729 | [25] | WASHER(11X25X3-MM THK) | |
| 12. | 8T-4133M | [10] | NUT(M10X1.5-THD) | |
| 13. | 8T-4139M | [4] | BOLT(M12X1.75X30-MM) | |
| 14. | 8T-4183M | [10] | BOLT(M12X1.75X40-MM) | |
| 15. | 8T-4195M | [14] | BOLT(M10X1.5X30-MM) | |
| 16. | 8T-4244M | [12] | NUT(M12X1.75-THD) | |
| 17. | 8T-4956M | [2] | BOLT(M12X1.75X35-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
