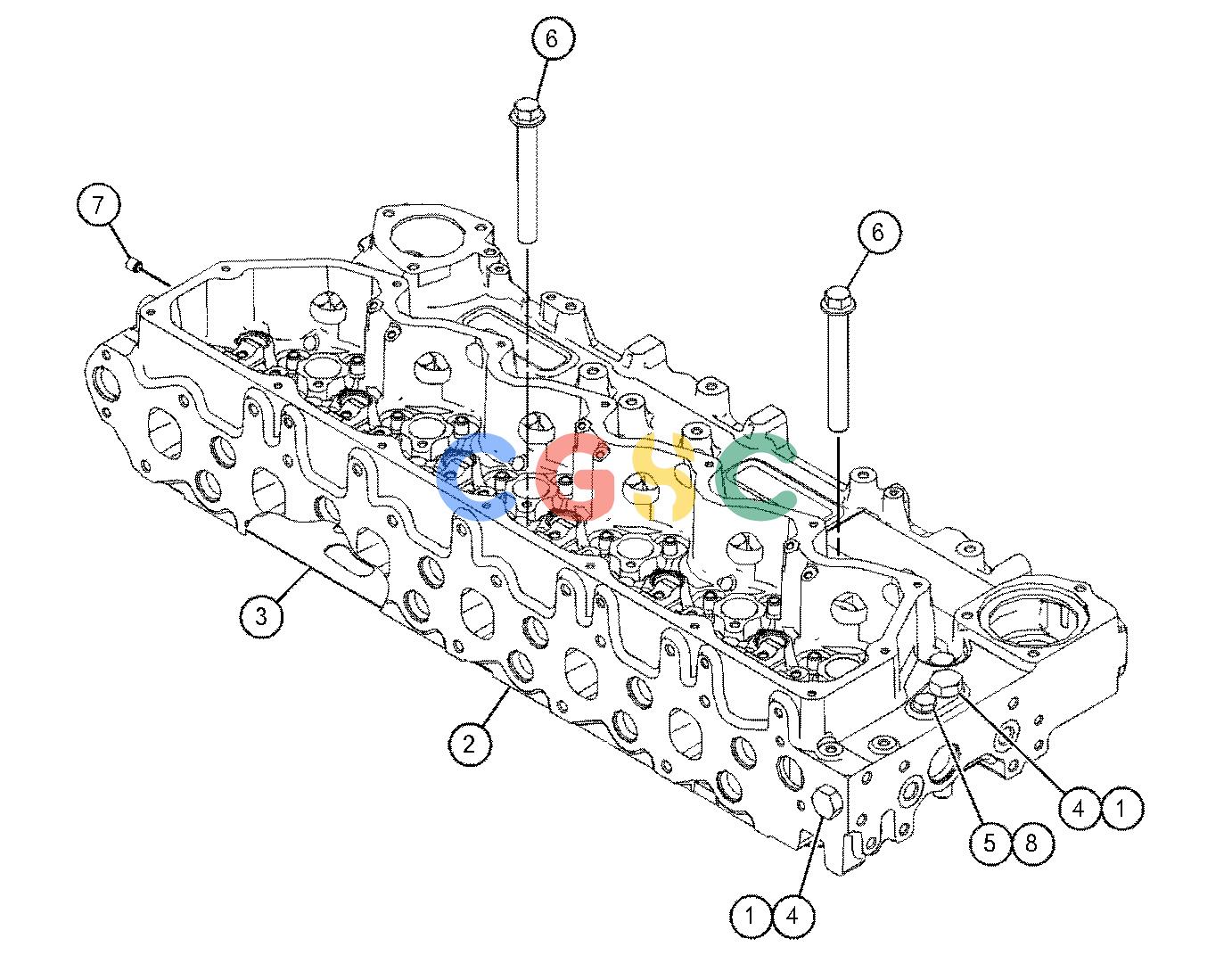

卡特零件查询（AP-1055F） 485-5428: CYLINDER HEAD GP
广数供应链运营团队, 16 02月, 2025，浏览：
498 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 199-9751 | [2] | SEAL-O-RING | |
| 2. | 389-0955Y | [1] | CYLINDER HEAD AS | |
| 3. | 424-8881 | [1] | GASKET-CYLINDER HEAD | |
| 4. | 232-1322 | [2] | PLUG | |
| 5. | 232-3861 | [1] | PLUG(BLANKING) | |
| 6. | 276-8134 | [14] | BOLT-SPECIAL(CYLINDER HEAD) | |
| 7. | 295-6661 | [1] | PLUG | |
| 8. | 346-7484 | [1] | SEAL-O-RING | |
| | | | |
| | 425-6411FJ | [1] | GASKET-CYLINDER HEAD(0.65-MM THK) | |
| | 425-6413FJ | [1] | GASKET-CYLINDER HEAD | |
| | F | | NOT SHOWN |
| | J | | GASKETS FOR SERVICE USE IN CONJUNCTION WITH BLOCK TOP DECK FACE SKIMMING |
| | Y | | SEPARATE ILLUSTRATION |
