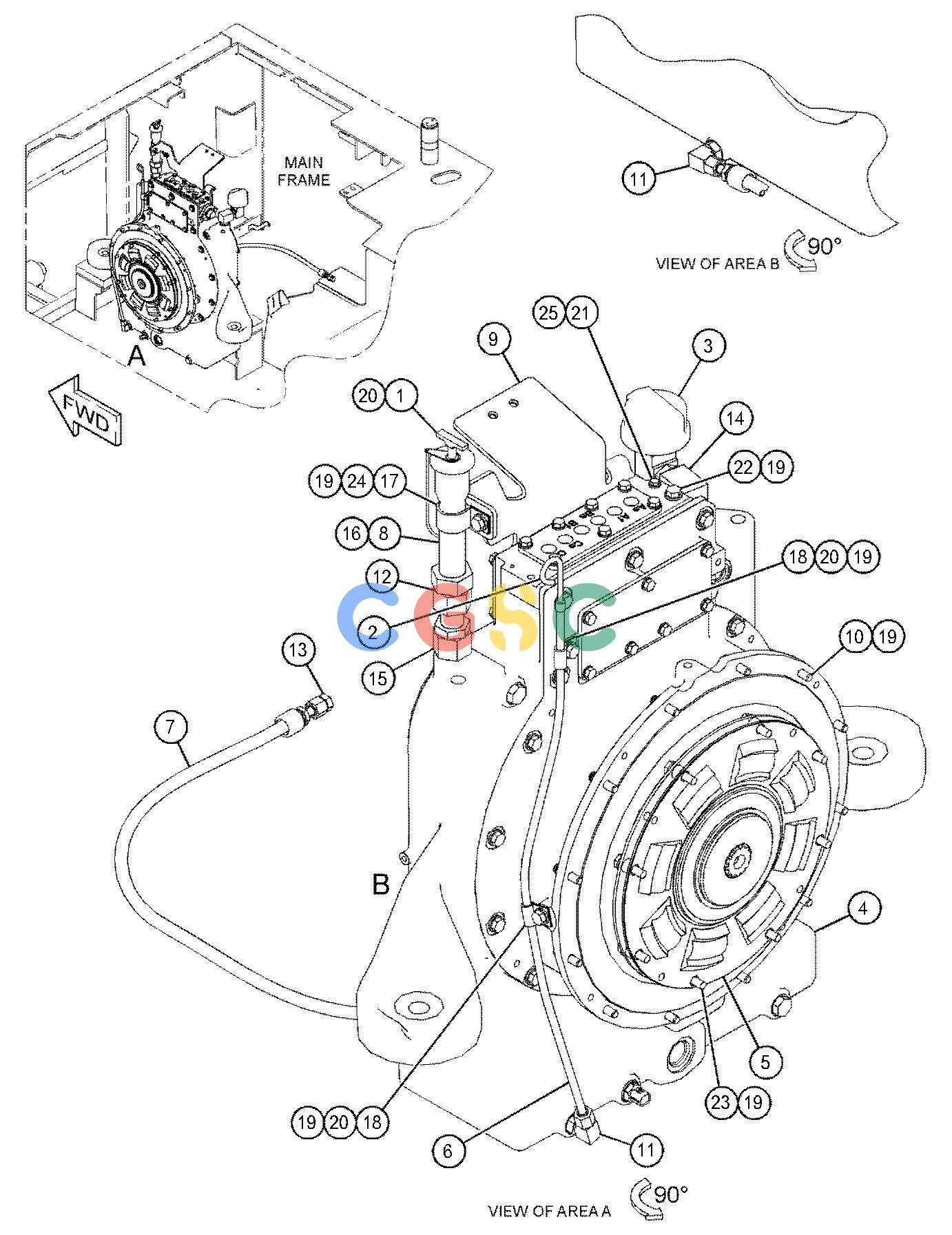

卡特零件查询（AP-1055F） 389-7931: DRIVE & MTG GP-PUMP
广数供应链运营团队, 16 02月, 2025，浏览：
119 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6G-9333 | [1] | CAP-FILLER(PUMP DRIVE) | |
| 2. | 9Y-8321 | [1] | GAUGE-OIL LEVEL (DIPSTICK) | |
| 3. | 258-2829 | [1] | BREATHER(PUMP DRIVE) | |
| 4. | Y | [1] | GENERATOR GP-POWER |
| 5. | 424-5321 | [1] | COUPLING AS | |
| 6. | 431-6861 | [1] | TUBE AS-OIL | |
| 7. | 431-7267I | [1] | HOSE AS | |
| 8. | 431-9524 | [1] | TUBE AS | |
| 9. | 432-2434 | [1] | BRACKET AS | |
| 10. | 136-4183M | [12] | BOLT-12 POINT HEAD(M10X1.5X30-MM) | |
| 11. | 148-8374 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8723 | [1] | ELBOW | |
| 12. | 164-5548 | [1] | COUPLING AS | |
| | 4I-6141 | [1] | ADAPTER | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 13. | 165-4934 | [1] | PLUG AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9508 | [1] | PLUG(11/16-16-THD) | |
| 14. | 167-1795 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 8T-3491 | [1] | ELBOW | |
| 15. | 304-8018 | [1] | ADAPTER AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-5258 | [1] | ADAPTER | |
| 16. | 5K-9090 | [1] | SEAL-O-RING | |
| 17. | 5P-7854 | [1] | CLIP(LOOP) | |
| 18. | 5P-9297 | [2] | CLIP(LOOP) | |
| 19. | 8T-4121 | [24] | WASHER-HARD(11X21X2.5-MM THK) | |
| 20. | 8T-4136M | [3] | BOLT(M10X1.5X25-MM) | |
| 21. | 8T-4171M | [1] | BOLT(M6X1X12-MM) | |
| 22. | 8T-4191M | [1] | BOLT(M10X1.5X16-MM) | |
| 23. | 8T-4196M | [8] | BOLT(M10X1.5X35-MM) | |
| 24. | 8T-4200M | [1] | BOLT(M8X1.25X16-MM) | |
| 25. | 8T-4205 | [10] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
