卡特零件查询（AP-1055F） 351-9798: VALVE MECHANISM GP
广数供应链运营团队, 16 02月, 2025，浏览：
159 次

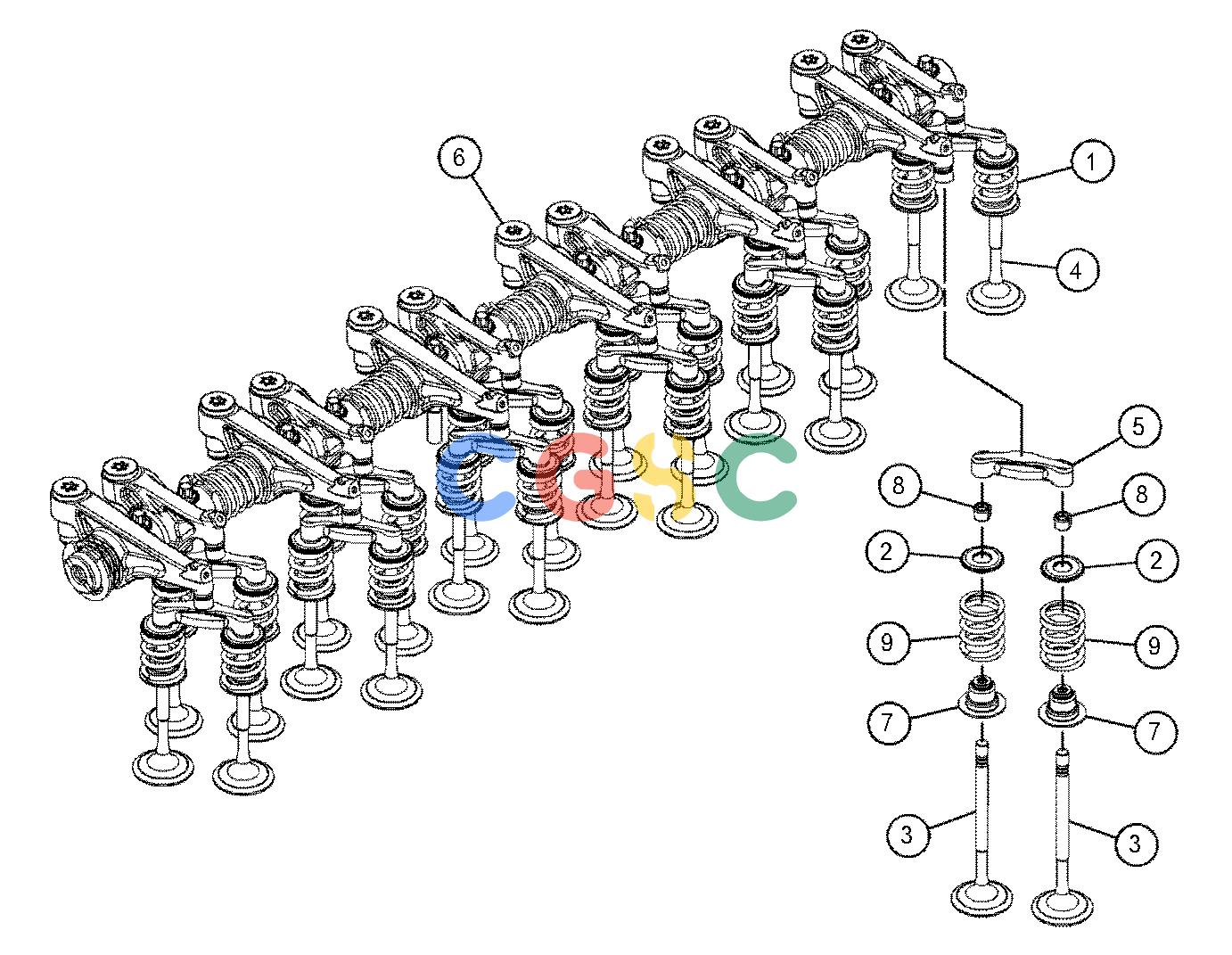

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 436-0523 | [12] | SPRING-VALVE(EXHAUST) | |
| 2. | 336-5439 | [24] | RETAINER-VALVE SPRING | |
| 3. | 336-5446 | [12] | VALVE-INLET | |
| 4. | 336-5447 | [12] | VALVE-EXHAUST | |
| 5. | 346-4712 | [12] | BRIDGE-VALVE | |
| 6. | 349-4715Y | [1] | ROCKER ARM GP | |
| 7. | 387-9503 | [24] | SEAL-VALVE STEM | |
| 8. | 152-9860 | [48] | RETAINER | |
| 9. | 436-0524 | [12] | SPRING-VALVE(INLET) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 440-8443 | [1] | KIT-CYLINDER HEAD REPAIR | |
| | | | (INCLUDES RETAINERS) |
| | Y | | SEPARATE ILLUSTRATION |
