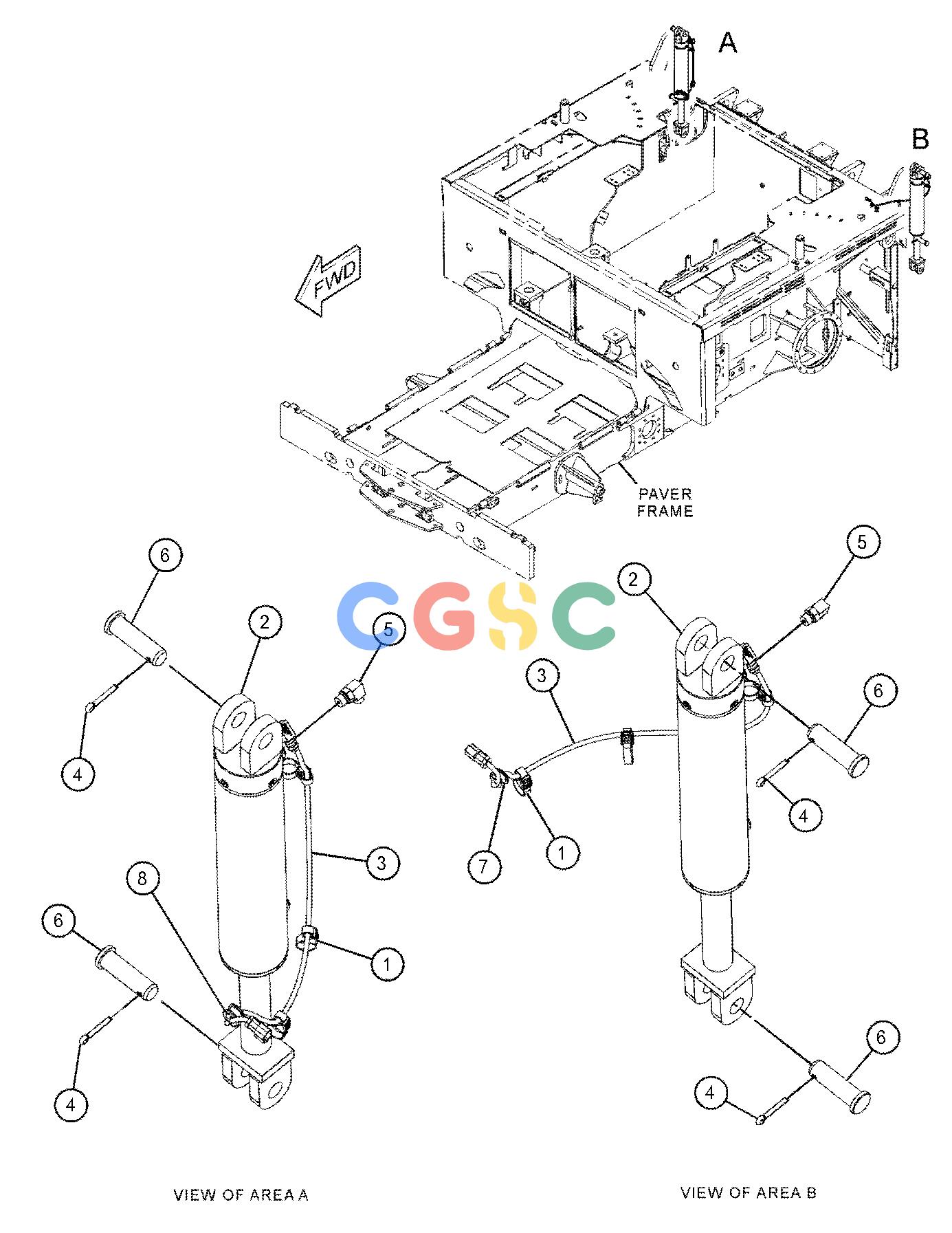

卡特零件查询（AP-1055F） 396-7152: CYLINDER & MTG GP-SCREED HOIST
广数供应链运营团队, 16 02月, 2025，浏览：
228 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 177-2215 | [6] | STRAP-DUAL CLAMP | |
| 2. | 396-7148J | [2] | CYLINDER GP-HYDRAULIC(SCREED HOIST) | |
| | | | (EACH INCLUDES) |
| | 6L-7138 | [4] | SCREW(8-32X0.31-IN) | |
| | 8C-8430 | [2] | SETSCREW-SOCKET(10-24X1-IN) | |
| 3. | 424-2440 | [2] | HARNESS AS-WIRING(SCREED HOIST CYLINDER) | |
| 4. | 095-0863 | [4] | PIN-COTTER | |
| 5. | 148-8374 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8723 | [1] | ELBOW | |
| 6. | 5B-5489 | [4] | PIN | |
| 7. | 5D-7635 | [1] | GROMMET | |
| 8. | 8T-5387 | [1] | GROMMET | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | J | [1] | KIT-SEAL |
| | | | (INCLUDES WIPER SEAL, U-CUP SEAL, O-RING SEALS, BACKUP RING, PISTON SEAL & WEAR RINGS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
