卡特零件查询（AP-1055F） 327-9194: BLADE & MOUNTING GP
广数供应链运营团队, 16 02月, 2025，浏览：
395 次

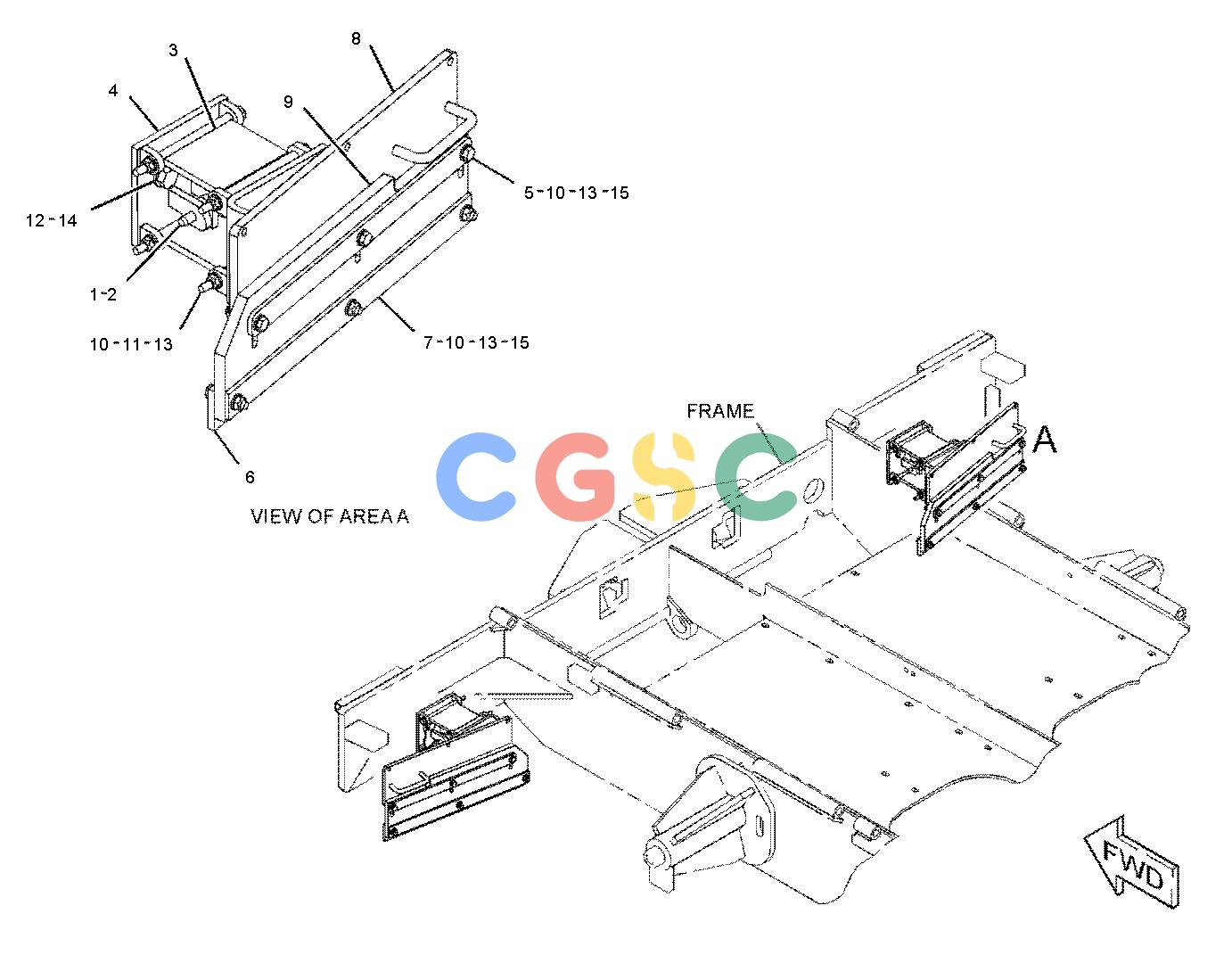

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5E-9892 | [2] | PIN | |
| 2. | 135-5049 | [2] | CABLE AS | |
| 3. | 315-0561 | [4] | BRACKET AS | |
| 4. | 315-0563 | [2] | BRACKET AS | |
| 5. | 315-0565 | [2] | PLATE | |
| 6. | 340-2681 | [2] | BAR | |
| 7. | 340-2715 | [2] | BAR | |
| 8. | 358-7322 | [2] | BRACKET AS | |
| 9. | 358-7324 | [2] | FLASHING | |
| 10. | 6V-7744M | [20] | LOCKNUT(M10X1.5-THD) | |
| 11. | 7X-2546M | [8] | BOLT(M10X1.5X180-MM) | |
| 12. | 7X-2552M | [4] | BOLT(M16X2X30-MM) | |
| 13. | 8T-4121 | [40] | WASHER-HARD(11X21X2.5-MM THK) | |
| 14. | 8T-4122 | [4] | WASHER-HARD(17X32X3.5-MM THK) | |
| 15. | 8T-4185M | [12] | BOLT(M10X1.5X50-MM) | |
| | M | | METRIC PART |
