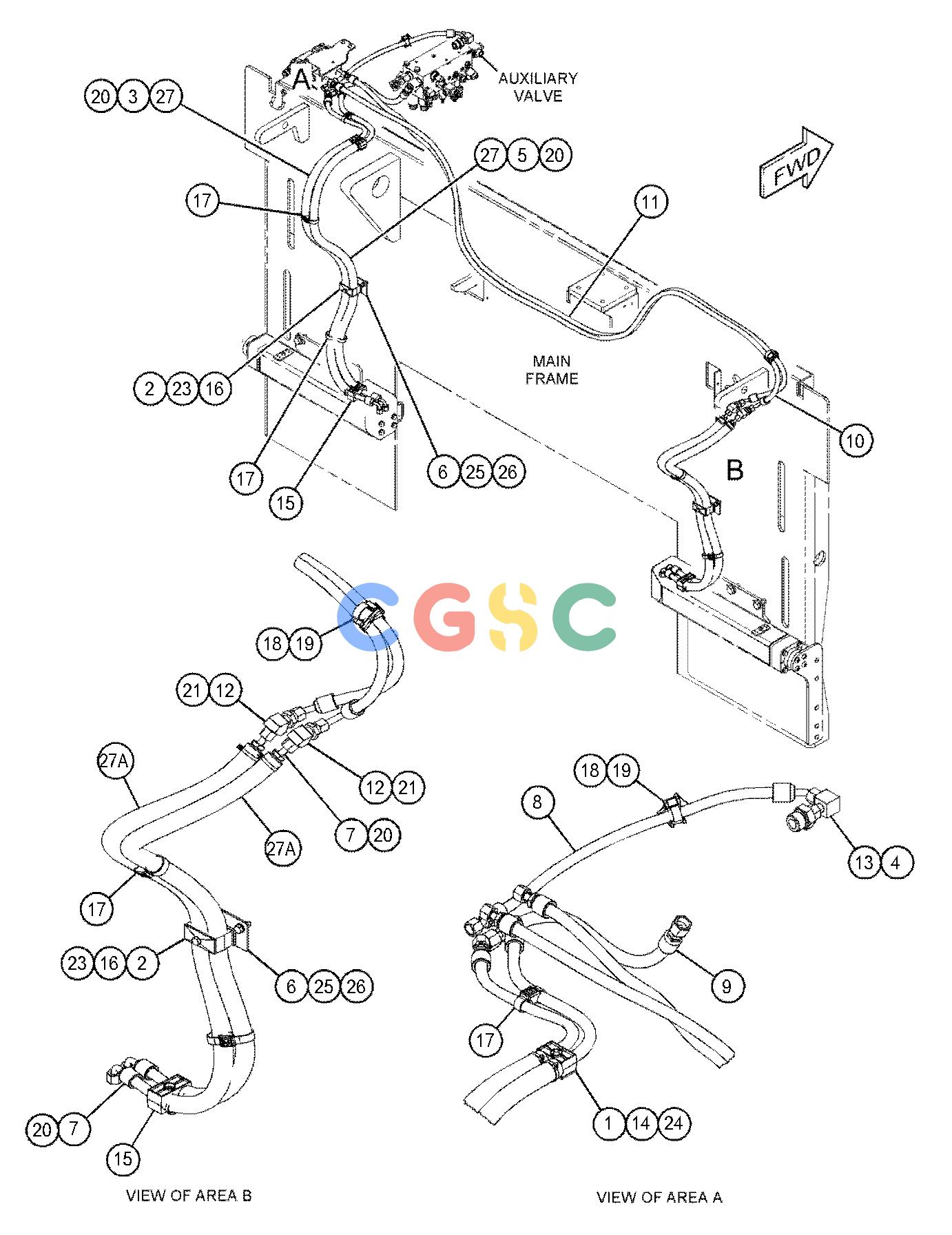

卡特零件查询（AP-1055F） 396-7182: LINES GP-EXTENDER
广数供应链运营团队, 16 02月, 2025，浏览：
390 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 102-8703 | [1] | PLATE-COVER | |
| 2. | 102-8705 | [2] | PLATE(TOP) | |
| 3. | 348-5348I | [1] | HOSE AS | |
| 4. | 371-7194 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 371-7193 | [1] | CONNECTOR | |
| 5. | 394-2509I | [1] | HOSE AS | |
| 6. | 423-4906 | [2] | PLATE AS | |
| | | | (EACH INCLUDES) |
| | 102-8706 | [1] | PLATE AS | |
| 7. | 428-7057I | [2] | HOSE AS | |
| 8. | 428-7058I | [1] | HOSE AS | |
| 9. | 423-4859I | [1] | HOSE AS | |
| 10. | 441-4353I | [1] | HOSE AS | |
| 11. | 441-4354I | [1] | HOSE AS | |
| 12. | 148-8366 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8987 | [1] | ELBOW | |
| 13. | 148-8367 | [1] | ELBOW AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9850 | [1] | ELBOW | |
| 14. | 154-4880 | [2] | CLAMP-HALF | |
| 15. | 4V-0611 | [4] | CLAMP | |
| 16. | 156-3616 | [4] | CLAMP-HALF | |
| 17. | 177-2215 | [5] | STRAP-DUAL CLAMP | |
| 18. | 200-6345 | [2] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 19. | 204-2281 | [4] | STRAP-CABLE | |
| 20. | 3S-2093 | [8] | STRAP-CABLE | |
| 21. | 6V-9168 | [2] | NUT(11/16-16-THD) | |
| 23. | 7X-0818M | [2] | BOLT(M8X1.25X45-MM) | |
| 24. | 7X-2537M | [1] | BOLT(M8X1.25X35-MM) | |
| 25. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 26. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 27. | 154-1420E | | SLEEVE(131-CM EACH) | |
| 27A. | 154-1420E | | SLEEVE(106-CM EACH) | |
| | E | | ORDER BY THE CENTIMETER |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
