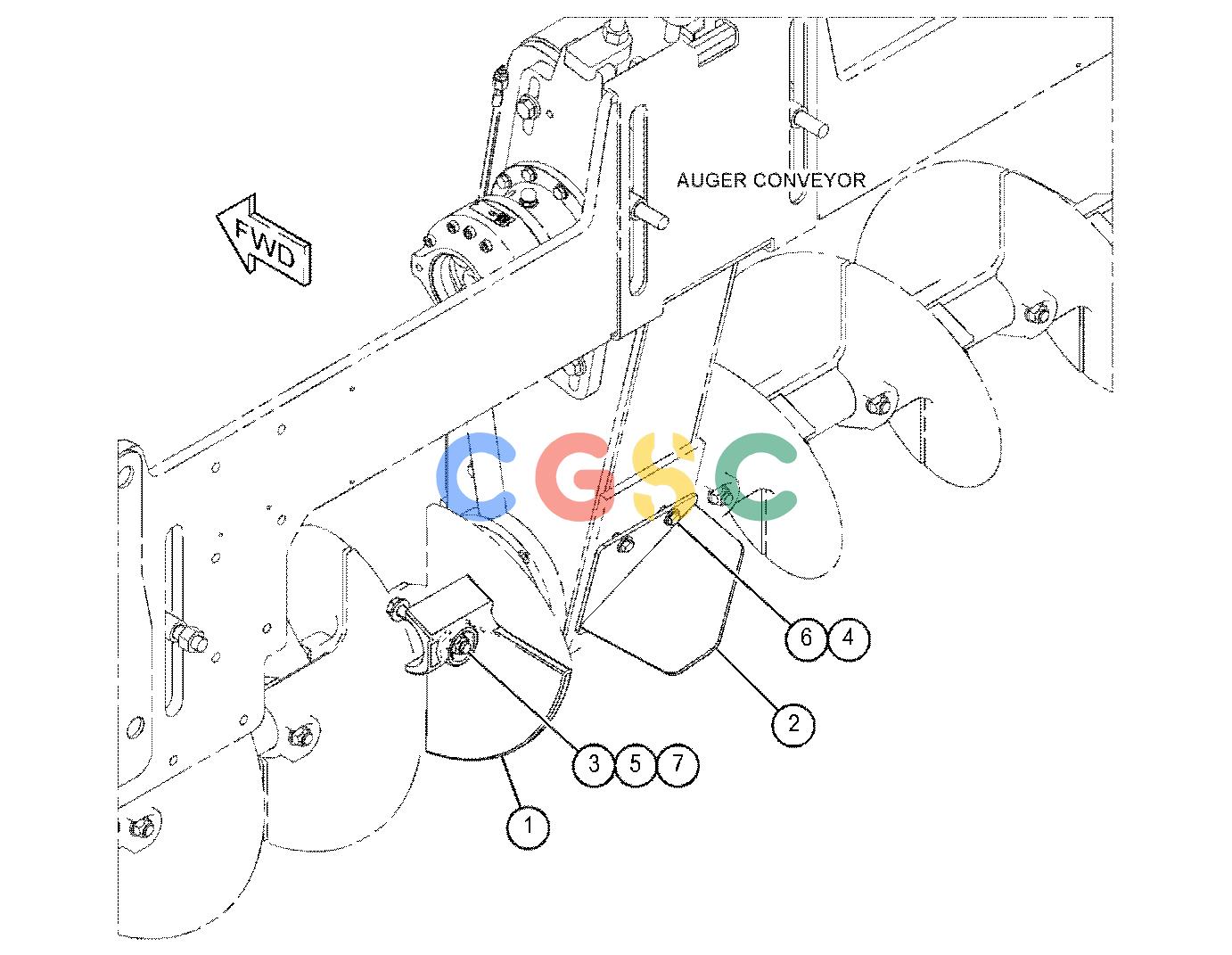

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 421-2373 | [1] | PLATE AS | |
| 2. | 422-1448 | [1] | SEGMENT-QUARTER AUGER | |
| 3. | 7X-2475M | [1] | BOLT(M16X2X130-MM) | |
| 4. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 5. | 8T-4122 | [2] | WASHER-HARD(17X32X3.5-MM THK) | |
| 6. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 7. | 8T-4778M | [1] | LOCKNUT(M16X2-THD) | |
| M | METRIC PART | |||
