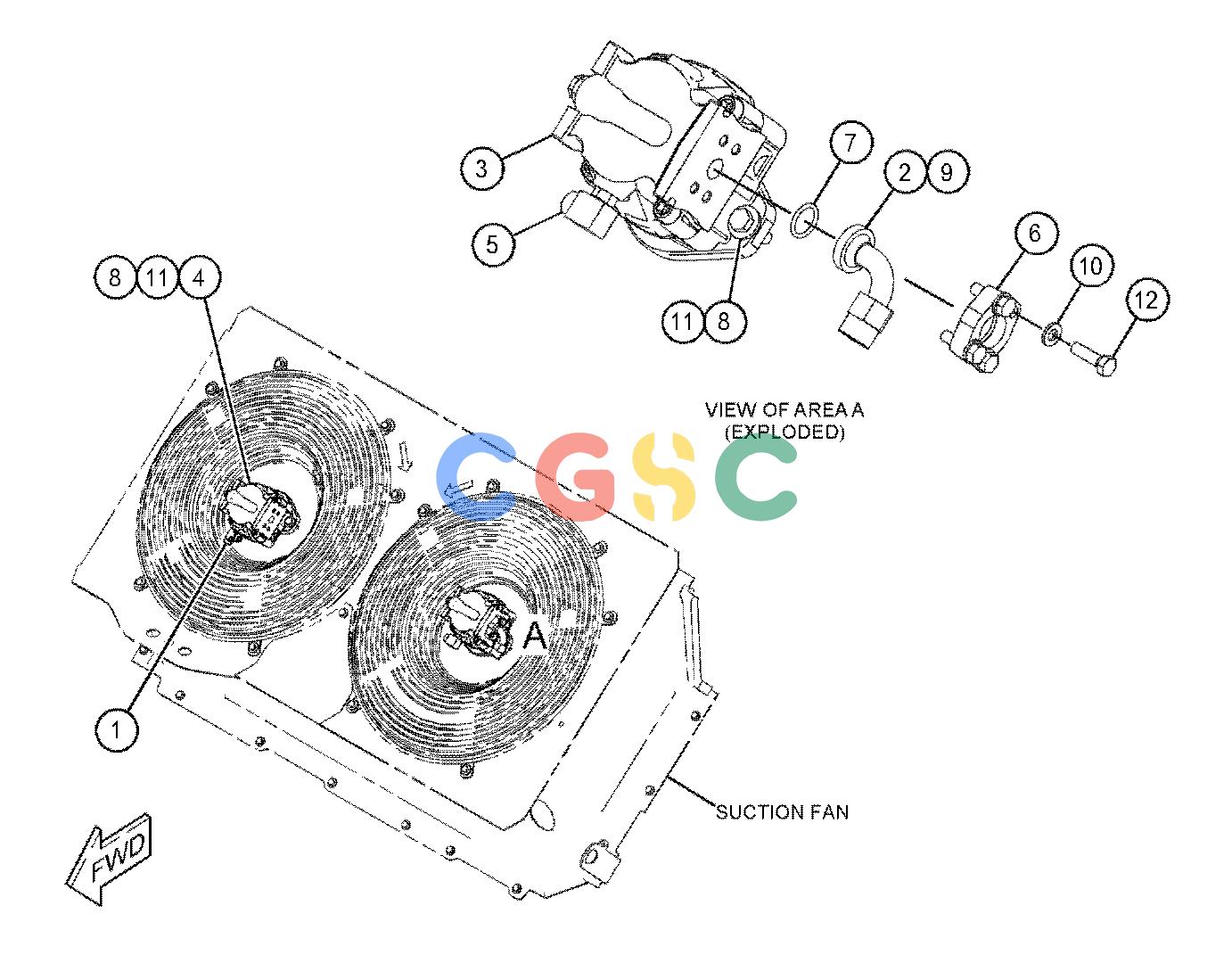

卡特零件查询（AP-1055F） 392-4707: MOTOR & MTG GP-HYDRAULIC FAN
广数供应链运营团队, 16 02月, 2025，浏览：
701 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 281-5898 | [1] | TEE AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 153-6270 | [1] | TEE | |
| 2. | 347-4415 | [1] | ADAPTER-ELBOW | |
| 3. | 396-7165Y | [1] | MOTOR GP-GEAR(FAN, LH) | |
| 4. | 396-7166Y | [1] | MOTOR GP-GEAR(FAN, RH) | |
| 5. | 148-8365 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8T-6876 | [1] | ELBOW | |
| 6. | 1P-4576 | [2] | FLANGE-HALF | |
| 7. | 4J-5267 | [1] | SEAL-O-RING | |
| 8. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 9. | 6V-9746 | [1] | SEAL-O-RING | |
| 10. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 11. | 8T-4183M | [4] | BOLT(M12X1.75X40-MM) | |
| 12. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
