卡特零件查询（AP-1055F） 392-4691: VALVE & MTG GP-AUXILIARY
广数供应链运营团队, 16 02月, 2025，浏览：
234 次

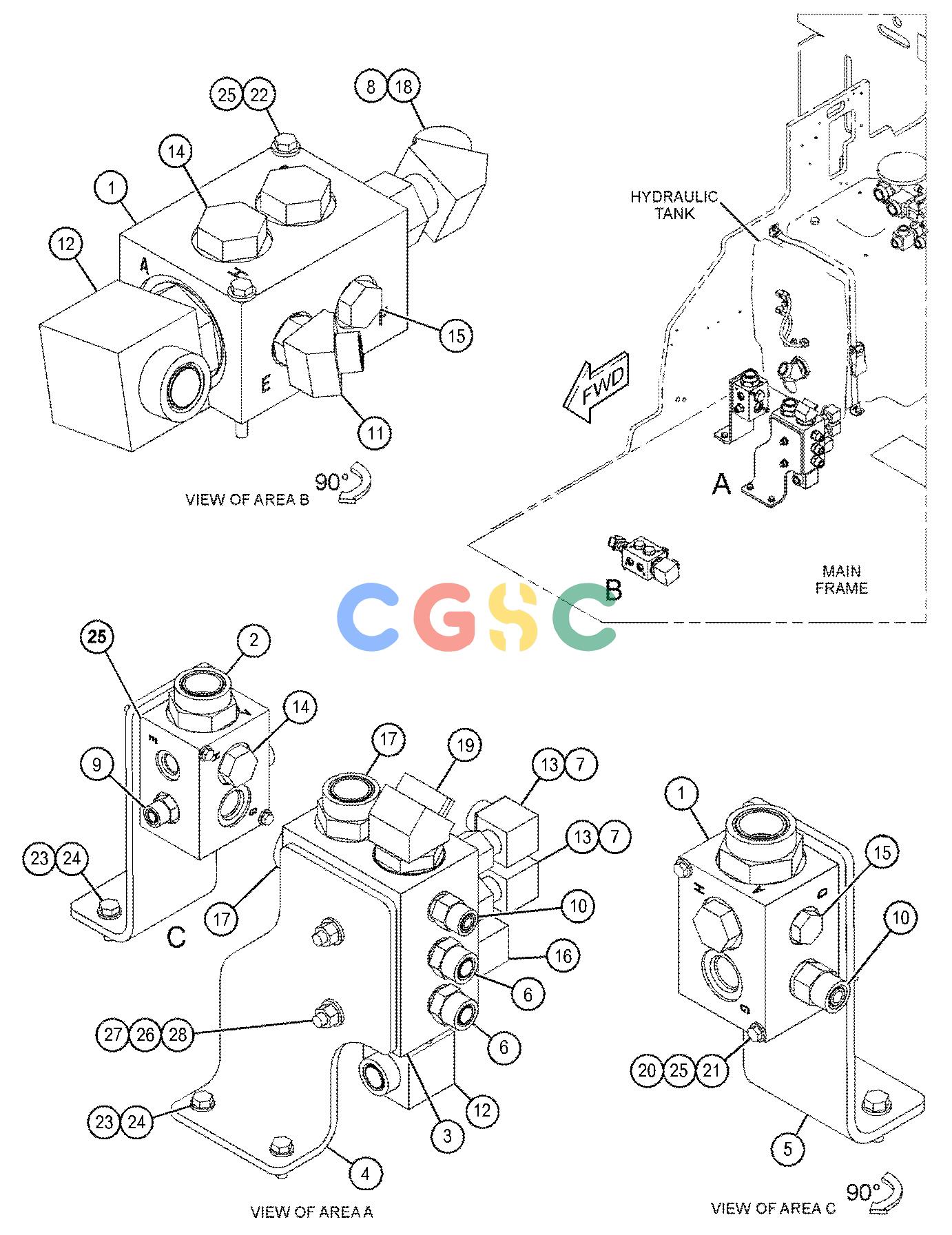

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 107-0003 | [2] | MANIFOLD | |
| 2. | 205-4132 | [1] | CONNECTOR AS | |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| | 8T-8985 | [1] | CONNECTOR | |
| 3. | 324-3255 | [1] | VALVE GP-BYPASS(OIL COOLER) | |
| | 358-7707 | [1] | VALVE GP-CHECK(OIL COOLER BYPASS) | |
| | 358-7760 | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RING SEALS & BACKUP RING) |
| 4. | 396-7124 | [1] | PLATE | |
| 5. | 396-7185 | [1] | PLATE | |
| 6. | 148-8324 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 6V-9874 | [1] | CONNECTOR(STRAIGHT) | |
| 7. | 148-8327 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8637 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 8. | 148-8339 | [1] | CONNECTOR AS | |
| | 6V-8716 | [1] | CONNECTOR(STRAIGHT) | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 9. | 148-8340 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 10. | 148-8342 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8632 | [1] | CONNECTOR | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 11. | 148-8354 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9002 | [1] | ELBOW | |
| 12. | 148-8391 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 2S-4078 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 8T-8987 | [1] | ELBOW | |
| 13. | 148-8392 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 6V-9853 | [1] | ELBOW | |
| 14. | | [3] | PLUG AS |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 9S-4183 | [1] | PLUG(1-1/16-12-THD) | |
| 15. | 148-8411 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| 16. | 148-8421 | [1] | TEE AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 8T-2883 | [1] | TEE | |
| 17. | 156-4283 | [2] | CONNECTOR AS | |
| | 6K-6307 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| | 8T-7926 | [1] | CONNECTOR | |
| 18. | 171-6723 | [1] | ELBOW AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 8T-8899 | [1] | ELBOW | |
| 19. | 204-9379 | [1] | ELBOW AS | |
| | 6K-6307 | [1] | SEAL-O-RING | |
| | 8T-0315 | [1] | SEAL-O-RING | |
| | 204-9378 | [1] | ELBOW | |
| 20. | 5C-2890M | [2] | NUT(M6X1-THD) | |
| 21. | 7X-0465M | [2] | BOLT(M6X1X100-MM) | |
| 22. | 7X-7888M | [2] | BOLT(M6X1X90-MM) | |
| 23. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 24. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 25. | 8T-4205 | [8] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 26. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 27. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 28. | 8T-5001M | [2] | BOLT(M12X1.75X130-MM) | |
| | M | | METRIC PART |
