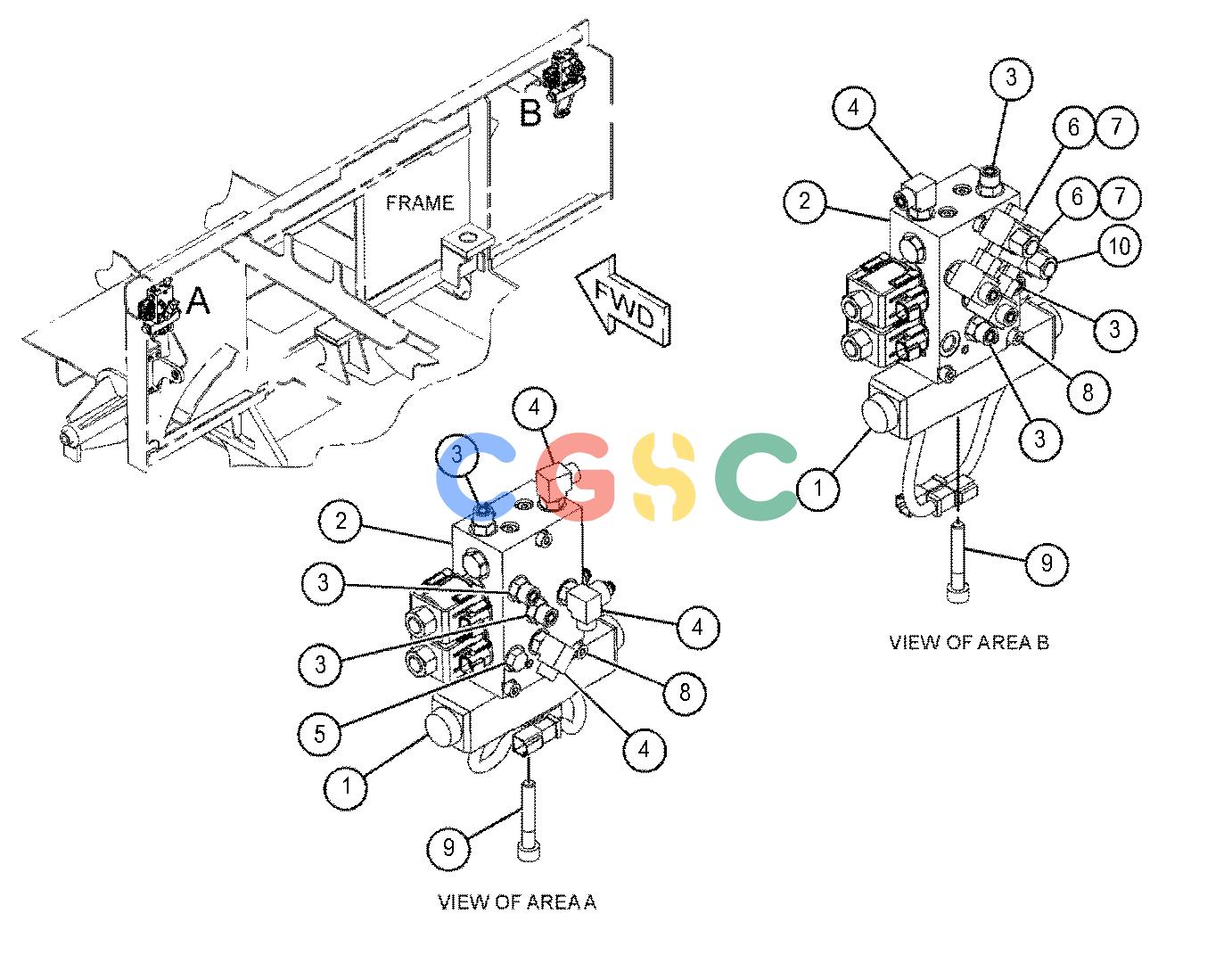

卡特零件查询（AP-1055F） 392-4693: VALVE & MTG GP-COUNTERBALANCE
广数供应链运营团队, 16 02月, 2025，浏览：
466 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 219-3005J | [2] | VALVE GP-SOLENOID(TOW POINT) | |
| | | | (EACH INCLUDES) |
| | 155-1280 | [2] | COIL | |
| | 219-3006 | [1] | ORIFICE | |
| 2. | 396-7156Y | [2] | VALVE GP-COUNTERBALANCE(HOPPER HOIST, TOW POINT) | |
| 3. | 148-8336 | [6] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 4. | 148-8378 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8724 | [1] | ELBOW | |
| 5. | 148-8407 | [1] | PLUG AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| 6. | 148-8433 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-9836 | [1] | TEE-SWIVEL | |
| 7. | 148-8435 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8781 | [1] | TEE | |
| 8. | 6V-8213M | [6] | BOLT-SOCKET HEAD(M8X1.25X70-MM) | |
| 9. | 9X-6615M | [8] | BOLT(M5X0.8X30-MM) | |
| 10. | 6V-9829 | [2] | CAP(ORFS) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 155-1697J | [1] | KIT-SEAL(SOLENOID VALVE) | |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
