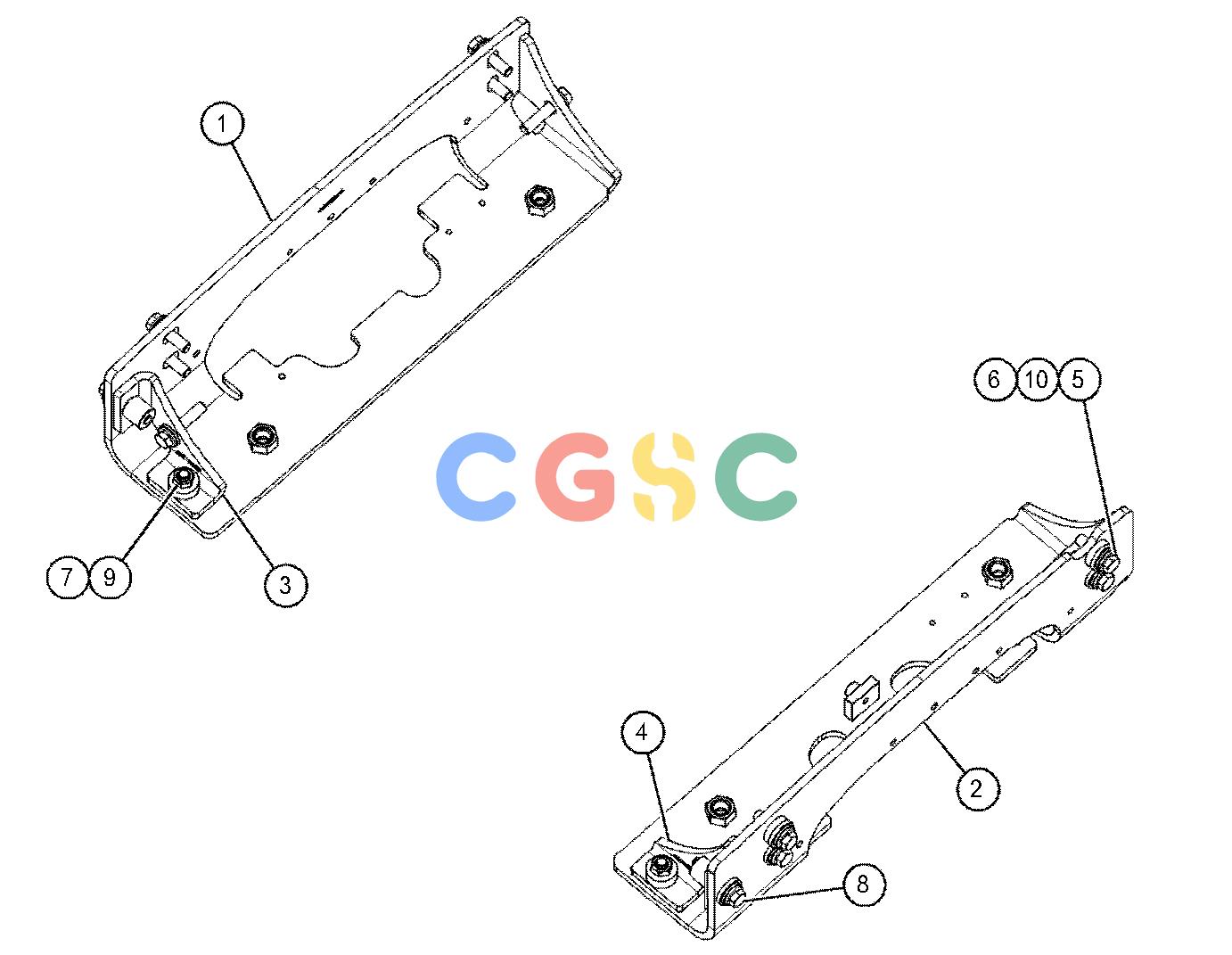

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 437-2974 | [1] | MOUNTING AS | |
| 2. | 437-2975 | [1] | MOUNTING AS | |
| 3. | 437-2980 | [1] | BRACKET AS | |
| 4. | 437-2983 | [1] | BRACKET AS | |
| 5. | 438-5381M | [8] | BOLT(M10X1.5X35-MM) | |
| 6. | 438-5382 | [10] | WASHER(10.5X28X4-MM THK) | |
| 7. | 438-7002 | [2] | FASTENER | |
| 8. | 438-8194M | [6] | BOLT(M10X1.5X45-MM) | |
| 9. | 438-8195M | [2] | SCREW(M10X1.5X40-MM) | |
| 10. | 438-8198 | [14] | WASHER(10.3X23X2.5-MM THK) | |
| M | METRIC PART | |||
