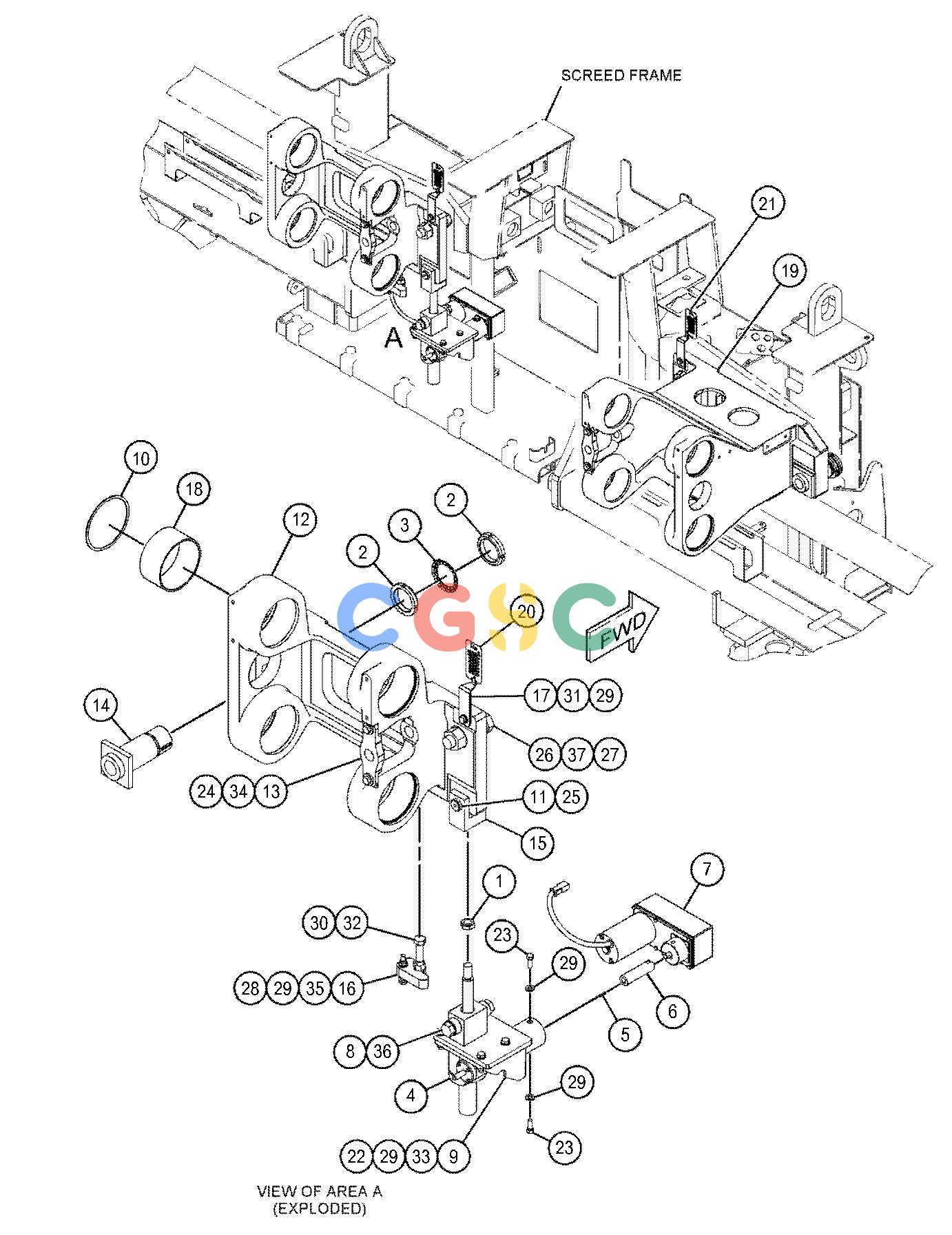

卡特零件查询（AP-1055F） 476-2143: SLOPER GP-POWER
广数供应链运营团队, 16 02月, 2025，浏览：
333 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1D-5120 | [2] | NUT-JAM(3/4-16-THD) | |
| 2. | 2H-3778 | [4] | LOCKNUT | |
| 3. | 065-7893 | [2] | LOCKWASHER-BEARING | |
| 4. | 493-2927 | [2] | JACK GP-SLOPER | |
| 5. | 102-2739 | [2] | KEY-SQUARE | |
| 6. | 222-5883 | [2] | COUPLING GP | |
| | | | (EACH INCLUDES) |
| | 4B-9806 | [1] | SETSCREW-SOCKET(1/4-20X0.25-IN) | |
| 7. | 277-2005Y | [2] | MOTOR GP-POWER ADJUSTER | |
| 8. | 279-6482 | [4] | SPACER(38X21X20-MM THK) | |
| 9. | 291-0068 | [2] | SUPPORT AS | |
| 10. | 421-3184 | [8] | RING-RETAINING | |
| 11. | 425-3516 | [2] | PIN | |
| 12. | 439-4348 | [1] | BOX(LH) | |
| 13. | 441-7518 | [2] | PLATE | |
| 14. | 441-7519 | [2] | PIN AS-PIVOT | |
| 15. | 442-0143 | [2] | CLEVIS | |
| 16. | 444-8037 | [2] | STOP | |
| 17. | 444-8502 | [2] | INDICATOR(SLOPE SCALE) | |
| 18. | 457-8959 | [8] | BUSHING | |
| 19. | 462-6337 | [1] | BOX(RH) | |
| 20. | 475-8935 | [1] | FILM-IDENTIFICATION(SLOPE SCALE) | |
| 21. | 475-8936 | [1] | FILM-IDENTIFICATION(SLOPE SCALE) | |
| 22. | 344-5675M | [8] | NUT(M10X1.5-THD) | |
| 23. | 4L-6454 | [4] | BOLT(3/8-16X1-IN) | |
| 24. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 25. | 5P-8837 | [2] | LOCK PIN | |
| 26. | 7X-2581M | [2] | BOLT(M30X3.5X100-MM) | |
| 27. | 8C-8722M | [2] | NUT(M30X3.5-THD) | |
| 28. | 8T-0389M | [2] | LOCKNUT(M10X1.5-THD) | |
| 29. | 8T-4121 | [26] | WASHER-HARD(11X21X2.5-MM THK) | |
| 30. | 8T-4132M | [2] | NUT(M16X2-THD) | |
| 31. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 32. | 8T-4175M | [2] | BOLT(M16X2X90-MM) | |
| 33. | 8T-4182M | [8] | BOLT(M10X1.5X45-MM) | |
| 34. | 8T-4956M | [4] | BOLT(M12X1.75X35-MM) | |
| 35. | 8T-5005M | [2] | BOLT(M10X1.5X70-MM) | |
| 36. | 8T-5460M | [4] | BOLT(M20X2.5X40-MM) | |
| 37. | 9X-8258 | [2] | WASHER(33X56X6-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
