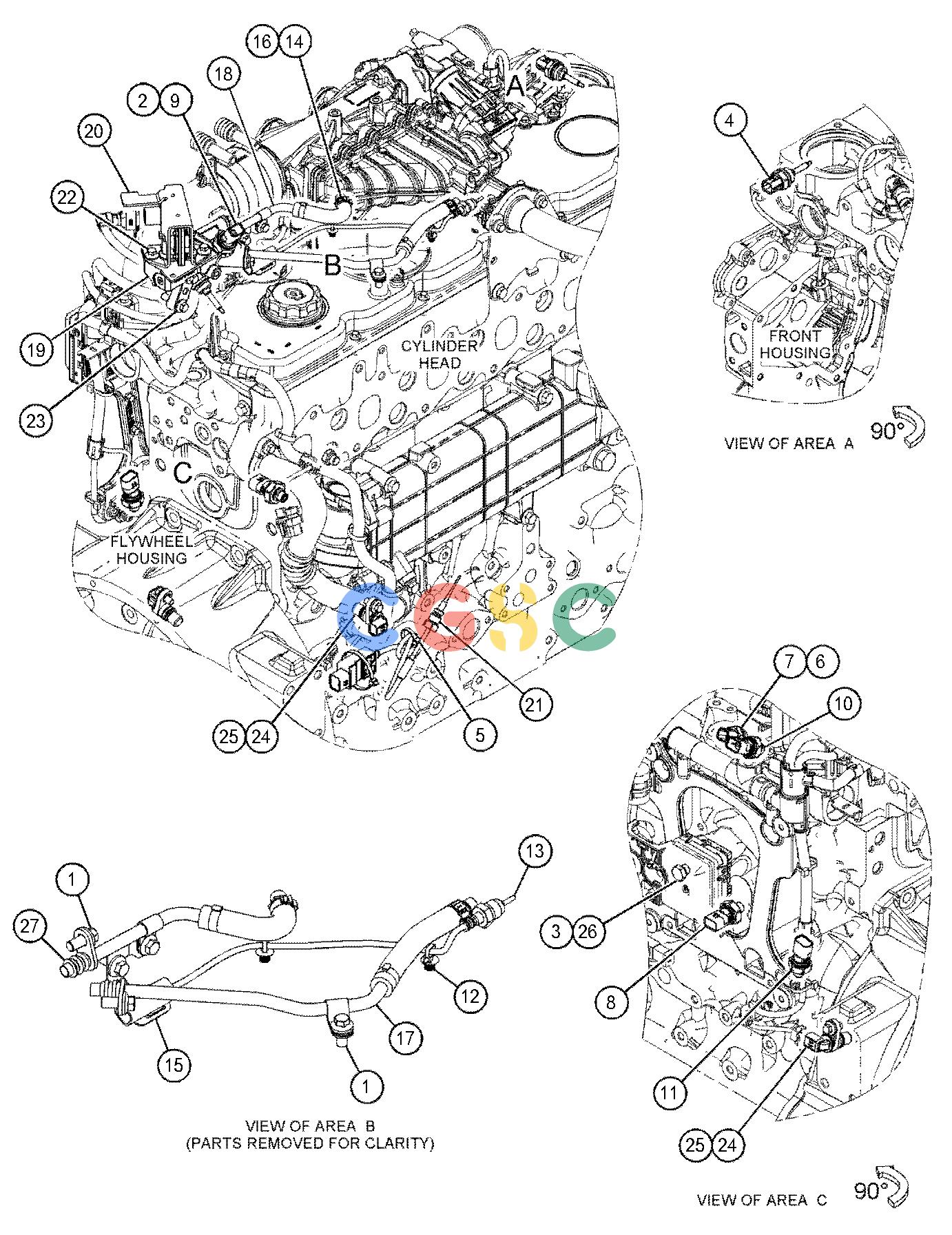

卡特零件查询（AP-1055F） 417-4254: SENSOR GP-ENGINE
广数供应链运营团队, 16 02月, 2025，浏览：
721 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 124-3815M | [7] | BOLT(M8X1.25X16-MM) | |
| 2. | 199-9252 | [2] | SEAL-O-RING | |
| 3. | 199-9267 | [4] | SEAL-O-RING | |
| 4. | 199-9751 | [1] | SEAL-O-RING | |
| 5. | 217-9039 | [2] | STRAP-CABLE | |
| 6. | 256-6454 | [2] | SENSOR-TEMPERATURE(2-PIN) | |
| 7. | 276-5603 | [1] | SEAL-O-RING | |
| 8. | 320-3060 | [1] | SENSOR GP-PRESSURE(ENGINE OIL) | |
| 9. | 320-3061 | [1] | SENSOR GP-PRESSURE | |
| 10. | 320-3062 | [1] | SENSOR GP-PRESSURE | |
| 11. | 320-3063 | [1] | SENSOR GP-PRESSURE | |
| 12. | 332-7865 | [2] | TIE-CABLE | |
| 13. | 339-8822 | [1] | SENSOR AS-TEMPERATURE | |
| | 281-8802 | [1] | RECEPTACLE AS-CONNECTOR(2-PIN) | |
| 14. | 358-9934 | [2] | UNION | |
| 15. | 369-1202 | [1] | BRACKET AS | |
| 16. | 385-0697 | [2] | CLAMP | |
| 17. | 385-4319 | [1] | PIPE AS | |
| | 330-8196 | [2] | SEAL-O-RING | |
| 18. | 385-4320 | [1] | PIPE AS | |
| | 330-8196 | [2] | SEAL-O-RING | |
| 19. | 388-7638 | [1] | MANIFOLD AS | |
| | 295-6661 | [1] | PLUG | |
| 20. | 397-2874 | [1] | SENSOR GP-PRESSURE | |
| | 341-0643 | [2] | SEAL-RECTANGULAR | |
| 21. | 416-2211 | [1] | SENSOR GP-TEMPERATURE | |
| 22. | 6I-0217M | [2] | BOLT(M8X1.25X20-MM) | |
| 23. | 6I-0254M | [3] | BOLT(M8X1.25X30-MM) | |
| 24. | 238-0120 | [2] | SENSOR GP-SPEED | |
| 25. | 228-4947 | [2] | SEAL-O-RING | |
| 26. | 232-3861 | [1] | PLUG(BLANKING) | |
| 27. | 330-8196 | [1] | SEAL-O-RING | |
| | M | | METRIC PART |
