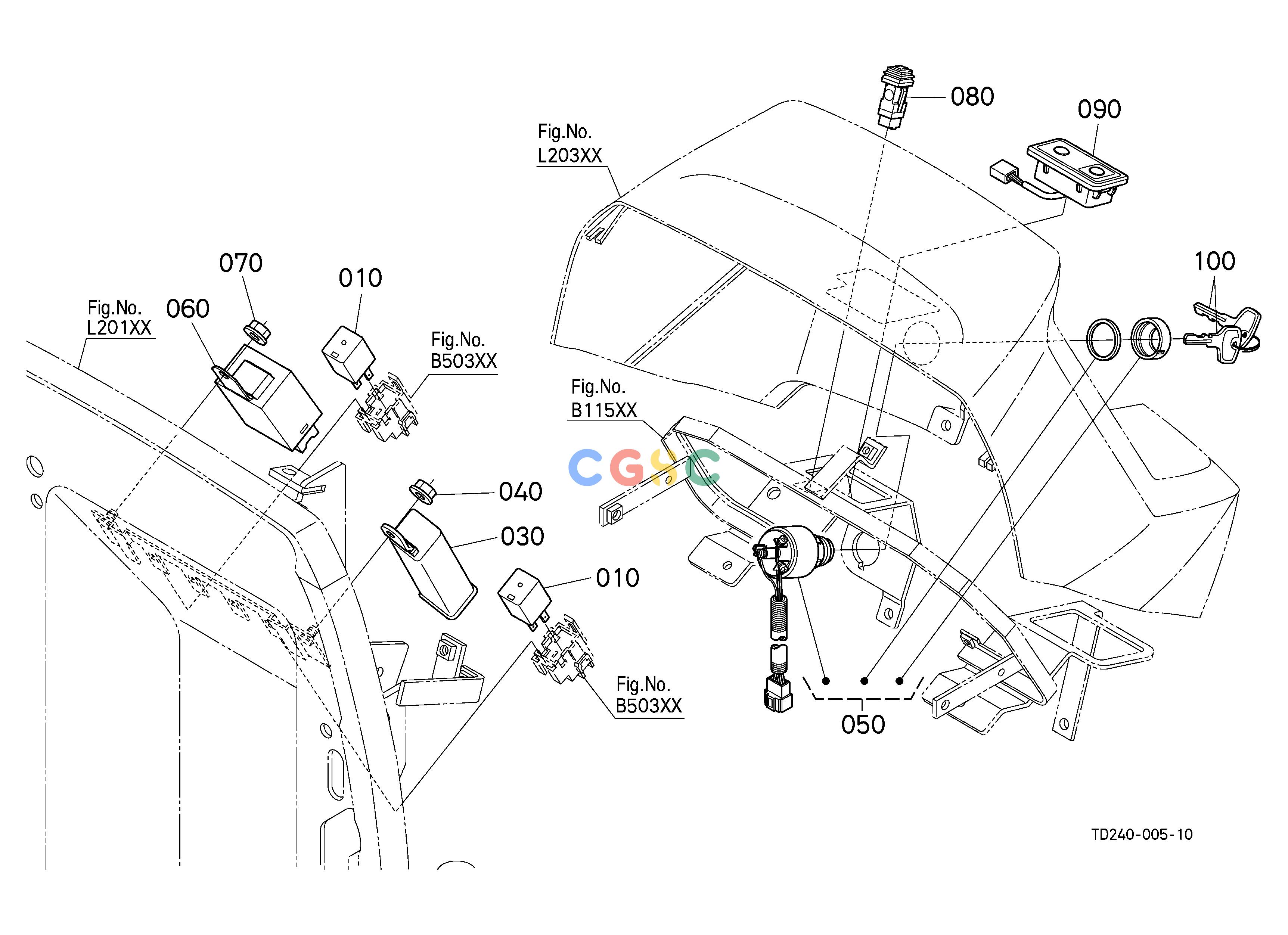

久保田零件查询B10201 SWITCH/RERAY ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
786 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
RD45154210
|
[2] |
RELAY(40A,ISO)
|
0.0792(lbs); 0.036
|
| 030. |
3F24075430
|
[1] |
UNIT,FLASHER
|
0.1320(lbs); 0.060
|
| 040. |
0275150060
|
[1] |
NUT,FLANGE
|
0.0110(lbs); 0.005
|
| 050. |
3467031823
|
[1] |
SWITCH(MAIN)
|
0.0572(lbs); 0.026
|
| 050. |
3467031824
|
[1] |
SWITCH,MAIN
|
0.5720(lbs); 0.260
|
| 060. |
6C19055513
|
[1] |
CONTROLLER
|
0.0946(lbs); 0.043
|
| 070. |
0275150060
|
[1] |
NUT,FLANGE
|
0.0110(lbs); 0.005
|
| 080. |
TA14030910
|
[1] |
SWITCH,HAZARD
|
0.0044(lbs); 0.002
|
| 080. |
3C00175040
|
[1] |
SWITCH,HAZARD
|
0.0330(lbs); 0.015
|
| 090. |
TD06032320
|
[1] |
SWITCH,CHANGE
|
0.1100(lbs); 0.050
|
| 100. |
3526031852
|
[1] |
ASSY KEY,MAIN SWITCH
|
0.0440(lbs); 0.020
|
