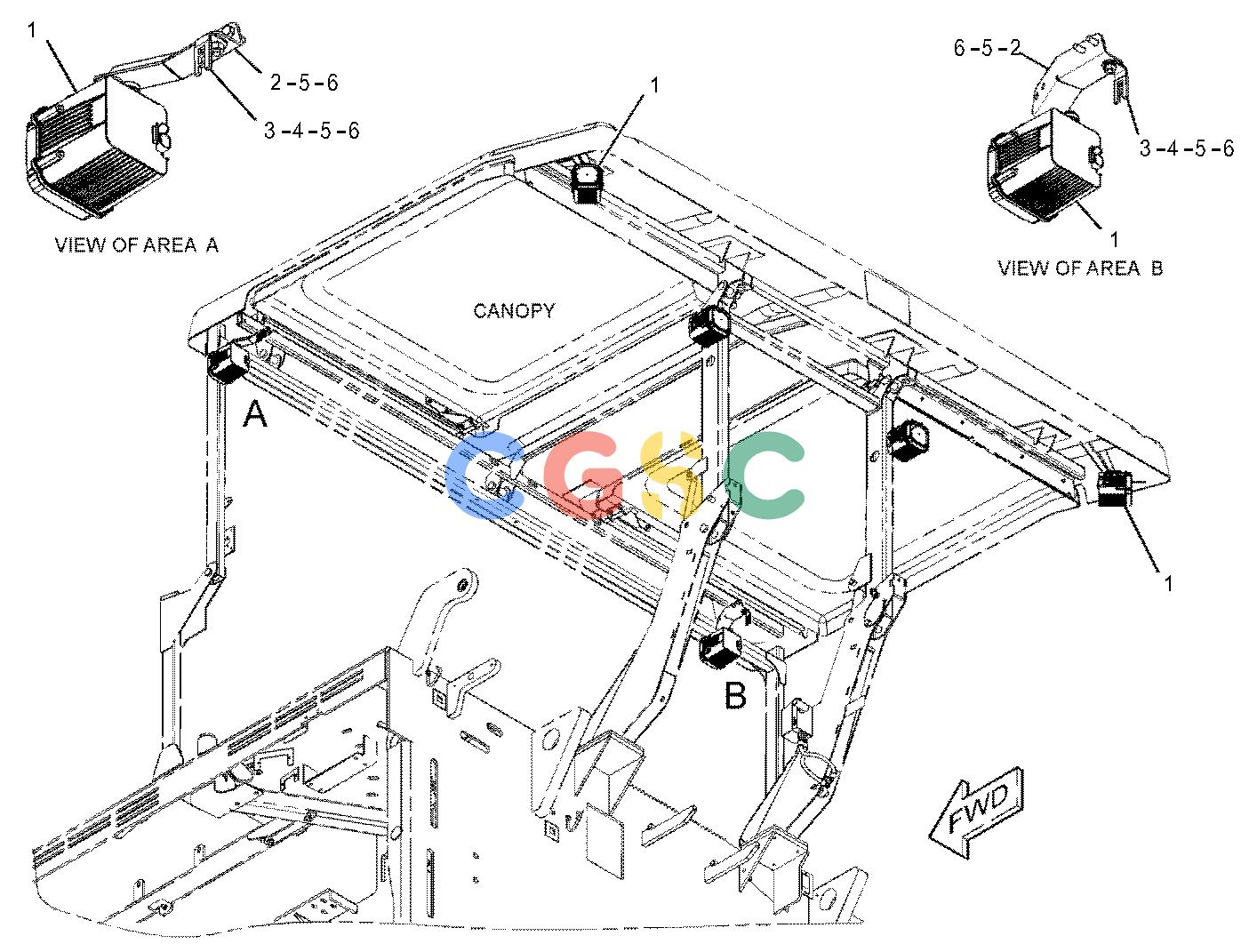

卡特零件查询（AP-1055F） 418-0539: LIGHTING GP-FLOOD
广数供应链运营团队, 16 02月, 2025，浏览：
428 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 388-6274 | [6] | LAMP GP-FLOOD(24-VOLT, HID) | |
| | | | (EACH INCLUDES) |
| | 6V-7744M | [1] | LOCKNUT(M10X1.5-THD) | |
| | 290-8160 | [1] | LAMP(24-VOLT, HID) | |
| | 319-7384 | [1] | BALLAST AS(24-VOLT, 35-WATT, HID) | |
| | 453-4742 | [1] | LENS AS | |
| 2. | 424-3504 | [2] | BRACKET | |
| 3. | 132-5789 | [2] | CLIP(LADDER) | |
| 4. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| 5. | 8T-4189M | [6] | BOLT(M8X1.25X20-MM) | |
| 6. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
